VBSpam comparative review March 2016

Martijn Grooten & Ionuţ Răileanu

Virus Bulletin

Copyright © Virus Bulletin 2016




Introduction

Last month, computer programmer Ray Tomlinson passed away at the age of 74. Although Ray had made numerous contributions to the tech community, he was best known for sending the first email in 1971 – and for adopting the '@' sign to separate the name of the user from that of the machine.

Email has changed a lot in the 45 years since Ray sent the first email (like VB, he preferred the unhyphenated version of the word). At the same time, it has changed very little, especially since it was standardized in RFCs in the early 1980s. And despite many predictions of its impending death, and predictions that everyone would soon switch to SMS, instant messaging or social networks, email continues to thrive and to be used by billions on the Internet every day.

What makes this even more remarkable is the fact that, for more than a decade, the majority of emails being sent have been unwanted – and quite often malicious. The reason people put up with this situation is that they often don't notice it: an infrastructure has been built that deals very successfully with the majority of spam before it reaches users' inboxes. Spam filters play an important part in this infrastructure.

For the past seven years, VB has been looking at how various spam filters have fared in the ever-changing spam landscape and how well they have been able to protect users' inboxes. The main conclusion we continue to draw from these tests is that, while no spam filter is perfect, there are a lot of decent options for organizations to choose between.

Indeed, in this month's comparative VBSpam test, we tested 18 full email security solutions, all of which achieved a VBSpam award.

The test set-up

The VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/. As usual, emails were sent to the products in parallel and in real time, and products were given the option to block email pre-DATA (that is, based on the SMTP envelope and before the actual email was sent). However, on this occasion no products chose to make use of this option.

For those products running on our equipment, we use Dell PowerEdge machines. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers' requirements and note that the amount of email we receive is representative of that received by a small organization.

To compare the products, we calculate a 'final score', which is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the 'delivery speed colours' at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and 'delivery speed colours' of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.

The email corpus

The test ran for 16 days, from 12am on 27 February to 12am on 14 March 2016. Part of this period coincided with a visit by one of the authors to the RSA Conference in San Francisco. This is relevant in that an attempt to fix a relatively minor issue on one of the test servers from a US airport, at a little past midnight in the UK, actually made things worse and led us to exclude 11 hours' worth of email during the night between 6 and 7 March. Other than that, there were no issues that affected the test.

This month's test corpus consisted of 187,720 emails. Of these, 177,486 were spam, 95,413 of which were provided by Project Honey Pot, with the remaining 82,073 spam emails provided by spamfeed.me, a product from Abusix. They were all relayed to the products in real time, as were the 9,913 legitimate emails ('ham') and 321 newsletters.

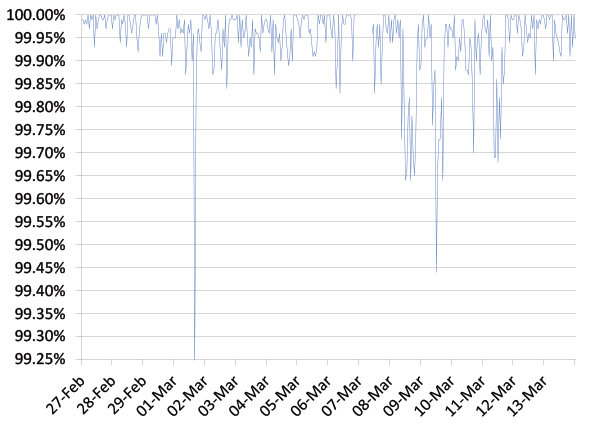

Figure 1 shows the catch rate of all full solutions throughout the test. To avoid the average being skewed by poorly performing products, the highest and lowest catch rates have been excluded for each hour.


Figure 1: Spam catch rate of all full solutions throughout the test period.

As the graph suggests, once again we saw very good performance among spam filters – the average catch rate was down only slightly from 99.95% in the last test to a still impressive 99.93%. The two noticeable dips in the average catch rates that can be seen in the graph were caused by coinciding drops in performance of two products and did not reflect a 'difficult' moment for spam filters in general.

The most difficult-to-filter spam – which was missed by no fewer than nine products – was a message that urged the user to open an attached PDF, which contained information on an alleged prize in an MSN/Yahoo lottery. The PDF was not malicious.

Results

Axway MailGate 5.3.1

SC rate: 99.84%
FP rate: 0.03%
Final score: 99.66
Project Honey Pot SC rate: 99.73%
Abusix SC rate: 99.98%
Newsletters FP rate: 0.9%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg

VBSpam

This was a good test for Axway's MailGate appliance. The product saw only a small decrease in its spam catch rate alongside decreases in its false positive and newsletter FP rates – the latter was particularly noticeable. With an improved final score of 99.66, Axway achieves its 12th VBSpam award in succession.



Bitdefender Security for Mail Servers 3.1.2

SC rate: 99.99%
FP rate: 0.00%
Final score: 99.99
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


This test completes the first seven years of Virus Bulletin's spam filter tests, and for Bitdefender these have been seven years of good luck – or, rather, seven years of excellent performance: the product has never failed to achieve a VBSpam award and has regularly impressed us with its performance. This test was no different, with just 25 missed spam emails and no false positives in either the ham corpus or the newsletter corpus. This performance resulted in the second highest final score of the test, and of course another VBSpam+ award.



Egedian Mail Security

SC rate: 99.95%
FP rate: 0.08%
Final score: 99.52
Project Honey Pot SC rate: 99.91%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.6%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


Egedian's spam catch rate remains very high at 99.95%, which was better than average. Unfortunately, the product misclassified eight legitimate emails – four each from two senders – which meant we couldn't give Egedian its second VBSpam+ award. A VBSpam award was easily achieved though.



ESET Mail Security for Microsoft Exchange Server

SC rate: 99.999%
FP rate: 0.00%
Final score: 99.999
Project Honey Pot SC rate: 99.999%
Abusix SC rate: 99.999%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


After missing just ten spam emails in January's test, this time around only two out of more than 177,000 spam emails slipped through ESET's grasp – one of which appeared to be broken. And that was all that went wrong, resulting in an impressive final score barely distinguishable from a perfect 100 – and of course another VBSpam+ award for ESET.



Fortinet FortiMail

SC rate: 99.99%
FP rate: 0.00%
Final score: 99.95
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.99%
Newsletters FP rate: 1.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


This was the 41st time in a row that Fortinet has participated in our VBSpam test, using the very same FortiMail appliance. This test saw the product achieve its fifth consecutive 99.9+ final score with no false positives, few blocked newsletters and very few spam emails missed (just 21 this time). Another VBSpam+ award is well deserved.



GFI MailEssentials

SC rate: 99.75%
FP rate: 0.08%
Final score: 99.34
Project Honey Pot SC rate: 99.75%
Abusix SC rate: 99.75%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% speed-colour-blobs-YELLOW.jpg 98% speed-colour-blobs-YELLOW.jpg


Dating spam – notoriously hard to filter – was what we found among the spam emails missed by GFI's MailEssentials product, which only missed one in every 400 spam emails. That's certainly a good catch rate, though unfortunately it also blocked eight legitimate emails, all in English, which denied it a VBSpam+ award. Another VBSpam award was easily earned though.



IBM Lotus Protector for Mail Security

SC rate: 99.95%
FP rate: 0.00%
Final score: 99.95
Project Honey Pot SC rate: 99.92%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


It is hard for an email security solution to avoid false positives, but it is even harder to do so among newsletters which, by their nature, share a number of properties with spam emails. Yet IBM's Lotus Protector product did just that, making it one of only three products this month with a clean sheet of false positives. Combined with a 99.95% spam catch rate, IBM has every reason to be proud of another VBSpam+ award.



Kaspersky Linux Mail Security 8.0

SC rate: 99.96%
FP rate: 0.00%
Final score: 99.95
Project Honey Pot SC rate: 99.95%
Abusix SC rate: 99.98%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg

The impressive spam catch rate of 99.96% achieved by Kaspersky's Linux Mail Security product this month was marginally higher than the catch rate it managed in the last test. With no false positives in the ham corpus and just one message misclassified in the tricky newsletter corpus, the product easily earned its 13th VBSpam+ award.



Kaspersky Secure Mail Gateway

SC rate: 99.94%
FP rate: 0.00%
Final score: 99.93
Project Honey Pot SC rate: 99.92%
Abusix SC rate: 99.96%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg


Like its Linux counterpart, the virtual version of Kaspersky's product combined a marginal increase in its spam catch rate with a lack of false positives and just a single blocked newsletter – the same one, unsurprisingly. This means that there is ample choice of product, even for those customers who have narrowed their choice down to using Kaspersky. Of course, Secure Mail Gateway also earned a VBSpam+ award.



Libra Esva 3.6.5.0

SC rate: 99.99%
FP rate: 0.00%
Final score: 99.98
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


In this test Libra Esva put in a performance that was identical to that in the last test – which is great news as it performed very well back then: a 99.99% spam catch rate, no false positives, a single blocked newsletter and a final score of 99.98. Once again this results in one of the highest final scores in the test and of course another VBSpam+ award for the Italian hosted solution.



modusGate

SC rate: 99.95%
FP rate: 0.00%
Final score: 99.94
Project Honey Pot SC rate: 99.91%
Abusix SC rate: 99.98%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


In its third appearance since its return to the VBSpam tests, modusGate continues its good performance with a 99.95% catch rate, a lack of false positives and just a single blocked newsletter. The product easily earns another VBSpam+ award.



Netmail Secure

SC rate: 99.98%
FP rate: 0.01%
Final score: 99.88
Project Honey Pot SC rate: 99.97%
Abusix SC rate: 100.00%
Newsletters FP rate: 1.6%
Speed:

10% GREEN 50% GREEN 95% speed-colour-blobs-YELLOW.jpg 98% speed-colour-blobs-YELLOW.jpg


I was pleased to see Netmail Secure return to our test bench this month as the product has a long and successful VBSpam history, going back to the first test. I was even more pleased to find that the product missed just 29 out of more than 177,000 spam emails. It did erroneously block a single legitimate email, and thus was denied a VBSpam+ award, but a regular VBSpam award is well deserved.



OnlyMyEmail's Corporate MX‑Defender

SC rate: 99.999%
FP rate: 0.00%
Final score: 99.95
Project Honey Pot SC rate: 99.999%
Abusix SC rate: 100.00%
Newsletters FP rate: 1.6%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


Yet again, OnlyMyEmail's spam catch rate falls within a rounding error of 100%: the product missed just a single spam email – fewer than any other product. Alongside that, it didn't block any legitimate emails and misclassified just five newsletters, resulting in a final score of 99.95 and yet another VBSpam+ award.



Scrollout F1

SC rate: 99.97%
FP rate: 0.15%
Final score: 99.10
Project Honey Pot SC rate: 99.98%
Abusix SC rate: 99.97%
Newsletters FP rate: 3.7%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


I was rather pleased to see Scrollout F1 achieve a pass in the last VBSpam test with a very high catch rate. It did so again this time around. It did have some false positives – more than any other product, and also more than it had in the last test – but the final score remained above 99 and the open‑source product earns another VBSpam award.



Sophos Email Appliance

SC rate: 99.85%
FP rate: 0.02%
Final score: 99.75
Project Honey Pot SC rate: 99.80%
Abusix SC rate: 99.92%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


We found mostly dating and medical spam among the emails missed by Sophos's Email Appliance, but there were only 261 of them, which out of a corpus of more than 177,000 emails is a very small number, showing that the product did its job well. It did block two legitimate emails – from the same sender – which denied it a VBSpam+ award, but it is worth mentioning that no newsletters were blocked and with a final score of 99.75 a VBSpam award is certainly well deserved.



SpamTitan 6.00

SC rate: 99.95%
FP rate: 0.03%
Final score: 99.79
Project Honey Pot SC rate: 99.92%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.3%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


Yet again, SpamTitan blocked well over 99.95% of all spam emails in the test, though for the first time in a little while it did not manage to avoid false positives. The three of these meant that it missed out on a VBSpam+ award on this occasion, but with a final score of 99.79 a regular VBSpam award is easily earned.



Vade Retro MailCube

SC rate: 99.79%
FP rate: 0.00%
Final score: 99.77
Project Honey Pot SC rate: 99.64%
Abusix SC rate: 99.97%
Newsletters FP rate: 0.6%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


Even though Vade Retro hasn't participated in our tests since the beginning of 2012, we have followed the company's progress with interest and watched it become a prominent player in the international security market. Now, the company returns to our tests to demonstrate to (potential) customers how well its MailCube product blocks spam.

It does this well: the product blocked 99.79% of spam emails and, perhaps more importantly, it didn't block any legitimate emails. With just two blocked newsletters – one in Russian and one in French – Vade Retro makes a triumphant return to our tests with a VBSpam+ award.



ZEROSPAM

SC rate: 99.93%
FP rate: 0.05%
Final score: 99.58
Project Honey Pot SC rate: 99.88%
Abusix SC rate: 99.99%
Newsletters FP rate: 3.1%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN


Although, like every other anti-spam solution, ZEROSPAM didn't reduce the spam to zero, at 0.07% (or a block rate of 99.93%) it came pretty close. It did have some false positives in both corpora, which denied the product a VBSpam+ award, but yet another VBSpam award is well deserved.



Spamhaus DBL

SC rate: 39.22%
FP rate: 0.00%
Final score: 39.22
Project Honey Pot SC rate: 49.93%
Abusix SC rate: 26.77%
Newsletters FP rate: 0.0%

Spamhaus ZEN

SC rate: 96.82%
FP rate: 0.00%
Final score: 96.82
Project Honey Pot SC rate: 94.78%
Abusix SC rate: 99.20%
Newsletters FP rate: 0.0%

Spamhaus ZEN+DBL

SC rate: 97.82%
FP rate: 0.00%
Final score: 97.82
Project Honey Pot SC rate: 96.54%
Abusix SC rate: 99.31%
Newsletters FP rate: 0.0%

In this test, the various DNS blacklists provided by The Spamhaus Project stopped fewer emails in their tracks than they did in January – in particular, domain-based blocking became less effective – but such changes tend to say as much about the ever-changing spam landscape as they do about the product. With no false positives, it remains the case that the inclusion of a blacklist like Spamhaus could be a great first layer in many a spam filter.

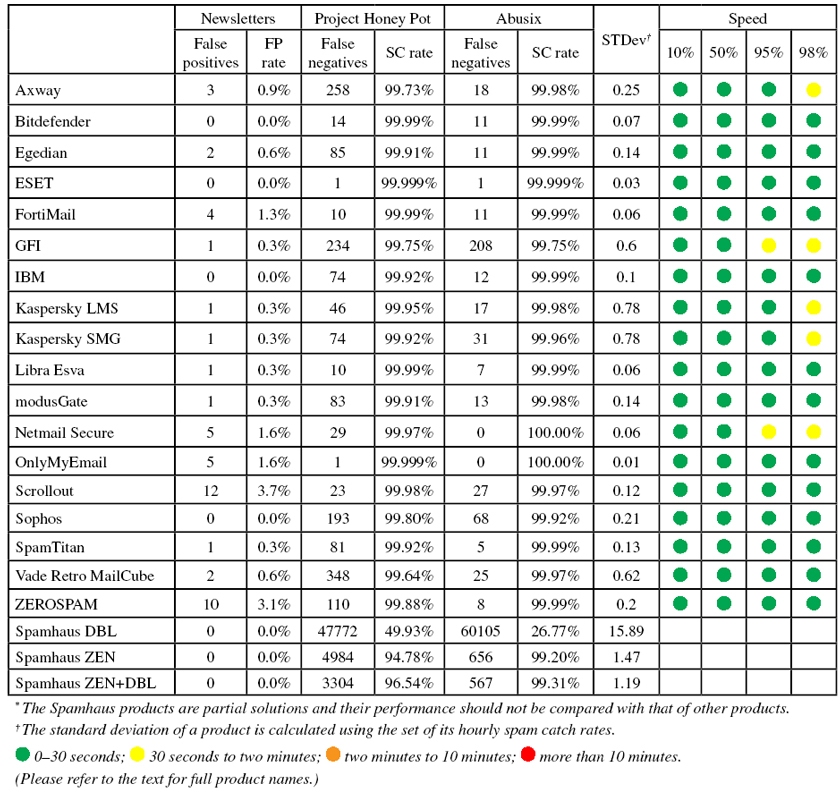

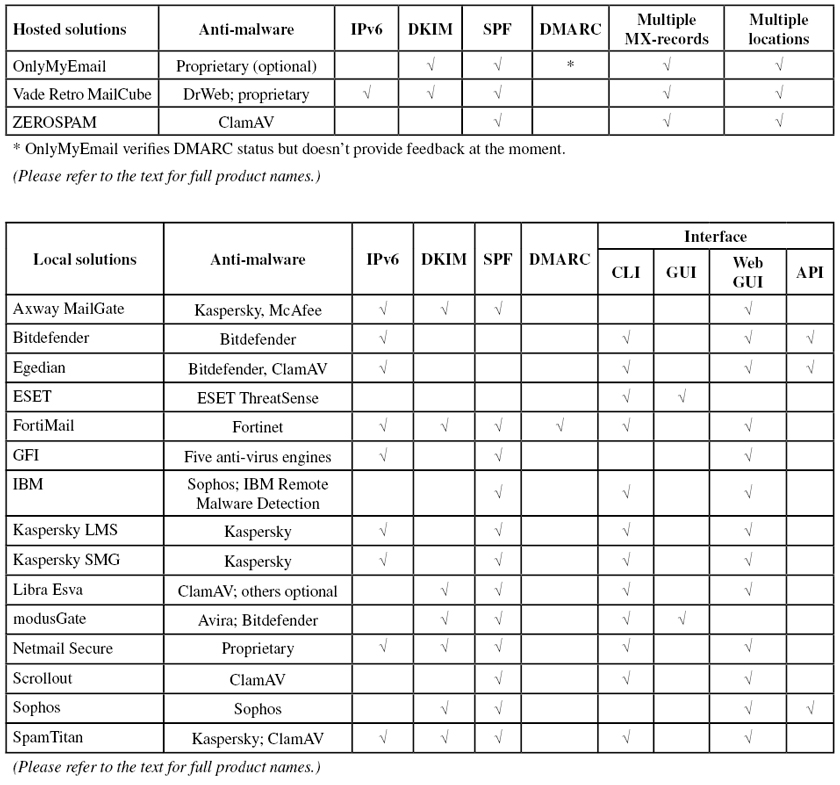

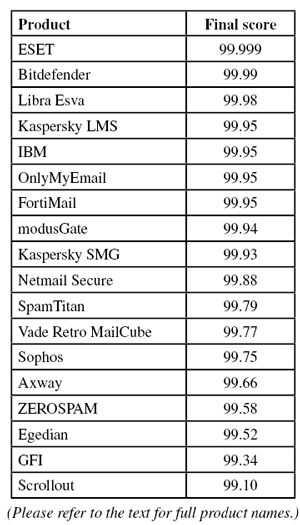

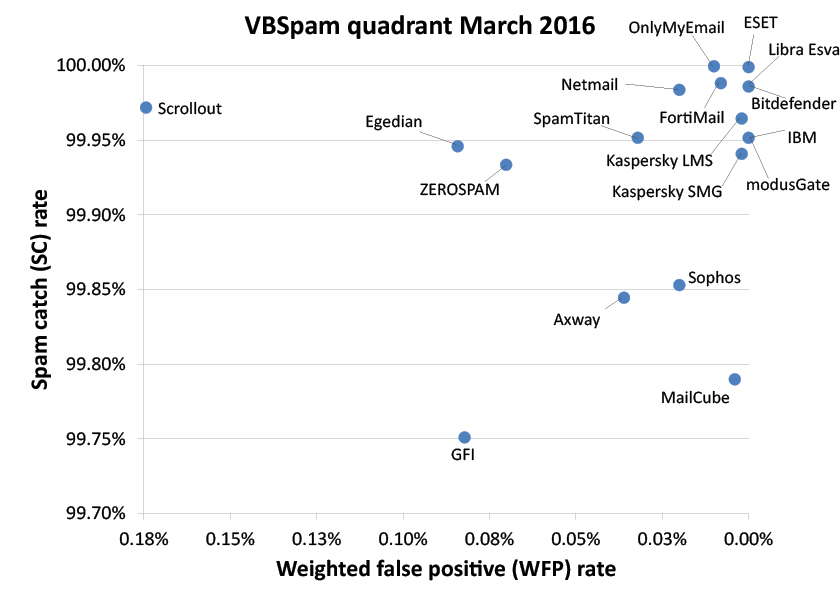

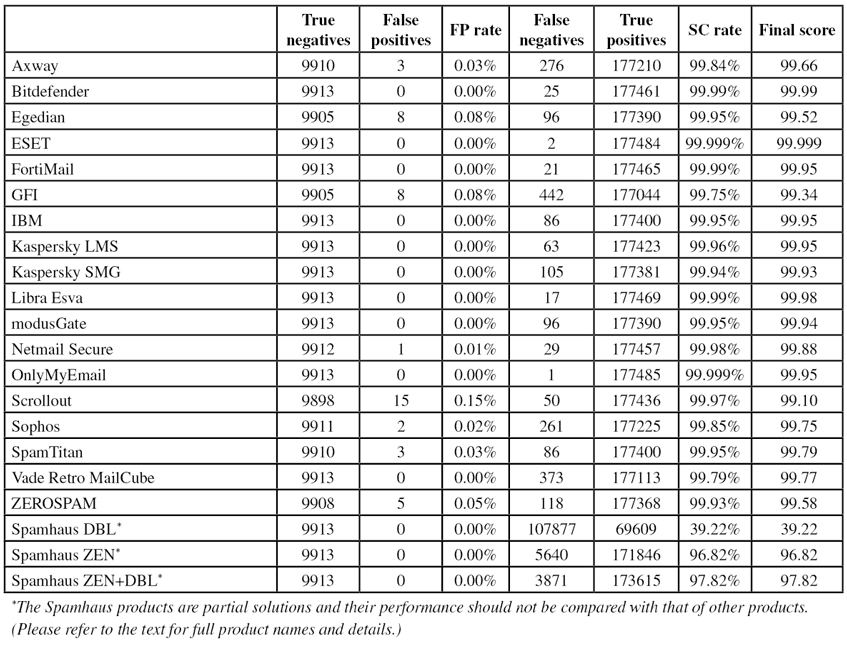

Results tables
















Conclusion

We were pleased to see that the high catch rates of the last test were, if not repeated, at least approached again. The billions of people who use email every day have good reason to feel well protected by this important part of a layered security model.

The next VBSpam test will run in April and May 2016, with the results scheduled for publication in May. Developers interested in submitting products, or who want to know more about how Virus Bulletin can help their company measure or improve its spam filter performance, should email martijn.grooten@virusbtn.com.
