VBSpam Email Security Comparative Review December 2020

Ionuţ Răileanu

Virus Bulletin

Copyright © 2020 Virus Bulletin




Introduction

In this test – which forms part of Virus Bulletin’s continuously running security product test suite – six full email security solutions, one custom configured solution1 and four blacklists of various kinds elected to be publicly tested against various streams of wanted, unwanted and malicious emails, the results for which are included in this report.

Filtering the large bulk of spam emails is a task that the security solutions covered in this report managed to accomplish very well. However, spam is still the most common attack vector and the most sophisticated threats don’t come in bulk. By malware and phishing emails we relate to these rare spam emails, which are usually more difficult to be filtered, so to have a better view of the tested solutions, we recommend to check these catch rates too. The novelty in this test is an increase of phishing emails that use legitimate services (e.g. Google Docs) to deliver the malicious payloads.

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test. (Note: these statistics are relevant only to the spam samples we received in real time.)

# Sender’s IP country Percentage of spam
1 Japan 8.65%
2 China 8.47%
3 Brazil 7.82%
4 United States 5.38%
5 Argentina 4.38%
6 India 3.90%
7 Vietnam 3.21%
8 Peru 2.14%
9 Republic of Korea 2.09%
10 Indonesia 1.99%

Top 10 countries from which spam was sent.

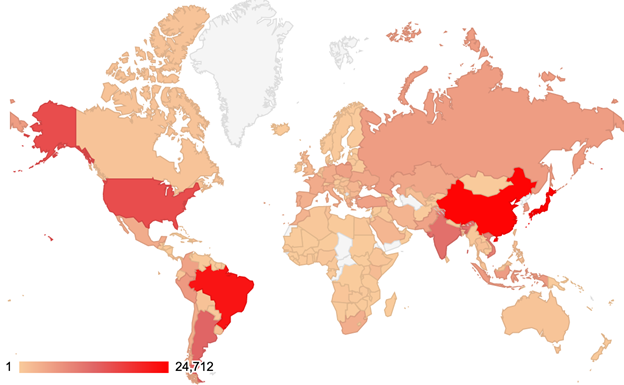

Figure1-map.pngGeographical distribution of spam based on sender IP address.



Malware and phishing

In this section we present some of malware and phishing emails that proved the most challenging for the products in the test.2 By ‘malware’ we mean those emails containing a malicious attachment. By ‘phishing’ we mean emails that contain URLs that lead to malware, as well as those that impersonate a legitimate institution/individual and those that attempt to steal a user’s credentials.



Google docs URLs with password-protected files

This phishing campaign was the most challenging for the security solutions we tested. The Google Docs URLs were active for a short period of time and downloaded a password-protected zip archive. We found similarities with other spam campaigns of this kind that were active during the same period (20 – 23 November), but we weren’t able to obtain more for our analysis as the URLs were unavailable at the time of our research.

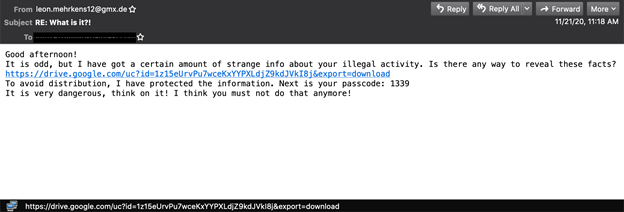

Figure2-phishing-containing-legit-urls.pngExample of a phishing email containing legitimate URLs.



zLoader

The majority of the security solutions in our test failed to correctly filter emails of this kind. The attached .XLS file is password protected (with the password provided in the content of the email) and, when opened, it tries to send a request to purefile24[.]top, a domain that has been reported in connection with zLoader. At the time of our analysis, no malicious payload was downloaded from that domain.

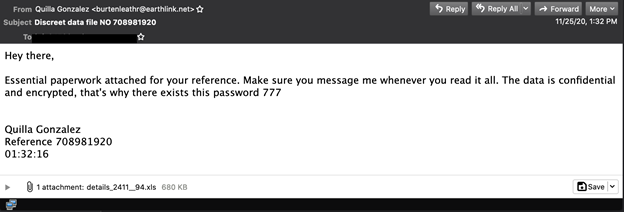

Figure3-zloader-malspam.pngExample of a zLoader malspam.

Figure4-opened-xls-leads-to-zloader.pngScreenshot of an opened xls file that leads to zLoader.



Results

Spam catch rates were high, with all of the products blocking more than 99% of the spam, but those on malware and phishing were significantly lower. Of the participating full solutions, one achieved a VBSpam award – ZEROSPAM – while a further six performed well enough to achieve a VBSpam+ award: Axway, Bitdefender, Fortinet, IBM Lotus Protector, Libraesva and Spamhaus DQS.



Axway MailGate 5.6

SC rate: 99.82%
FP rate: 0.00%
Final score: 99.82
Malware catch rate: 86.01%
Phishing catch rate: 98.10%
Project Honey Pot SC rate: 99.89%
Abusix SC rate: 99.81%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




Bitdefender Security for Mail Servers 3.1.7

SC rate: 99.92%
FP rate: 0.00%
Final score: 99.92
Malware catch rate: 98.60%
Phishing catch rate: 98.95%
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.89%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




Fortinet FortiMail

SC rate: 99.84%
FP rate: 0.00%
Final score: 99.84
Malware catch rate: 99.22%
Phishing catch rate: 96.96%
Project Honey Pot SC rate: 99.73%
Abusix SC rate: 99.81%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




IBM Lotus Protector for Mail Security

SC rate: 99.86%
FP rate: 0.00%
Final score: 99.86
Malware catch rate: 98.82%
Phishing catch rate: 98.34%
Project Honey Pot SC rate: 99.73%
Abusix SC rate: 99.84%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




Libraesva ESG v.4.7

SC rate: 99.91%
FP rate: 0.00%
Final score: 99.91
Malware catch rate: 99.94%
Phishing catch rate: 98.81%
Project Honey Pot SC rate: 99.90%
Abusix SC rate: 99.90%
Newsletters FP rate: 0.0%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg




Spamhaus Data Query Service

SC rate: 99.59%
FP rate: 0.00%
Final score: 99.49
Malware catch rate: 98.94%
Phishing catch rate: 97.05%
Project Honey Pot SC rate: 99.30%
Abusix SC rate: 99.59%
Newsletters FP rate: 0.9%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




ZEROSPAM

SC rate: 99.54%
FP rate: 0.02%
Final score: 99.36
Malware catch rate: 99.66%
Phishing catch rate: 98.57%
Project Honey Pot SC rate: 99.21%
Abusix SC rate: 99.53%
Newsletters FP rate: 0.7%
Speed:

10% GREEN 50% GREEN 95% GREEN 98% GREEN




Abusix Mail Intelligence

SC rate: 99.25%
FP rate: 0.19%
Final score: 98.35
Malware catch rate: 97.20%
Phishing catch rate: 97.72%
Project Honey Pot SC rate: 95.51%
Abusix SC rate: 99.78%
Newsletters FP rate: 0.0%



IBM X-Force Combined

SC rate: 98.08%
FP rate: 0.02%
Final score: 97.98
Malware catch rate: 87.30%
Phishing catch rate: 88.60%
Project Honey Pot SC rate: 98.25%
Abusix SC rate: 98.01%
Newsletters FP rate: 0.0%



IBM X-Force IP

SC rate: 96.19%
FP rate: 0.02%
Final score: 96.08
Malware catch rate: 87.02%
Phishing catch rate: 87.32%
Project Honey Pot SC rate: 97.24%
Abusix SC rate: 95.99%
Newsletters FP rate: 0.0%



IBM X-Force URL

SC rate: 65.30%
FP rate: 0.00%
Final score: 65.30
Malware catch rate: 3.53%
Phishing catch rate: 17.34%
Project Honey Pot SC rate: 76.22%
Abusix SC rate: 63.64%
Newsletters FP rate: 0.0%



Results tables

  True negatives False positives FP rate False negatives True positives SC rate Final score VBSpam
Axway 4853 0 0.00% 501.8 284826.4 99.82% 99.82 vbantispam-plus.gif
Bitdefender 4853 0 0.00% 240 285088.2 99.92% 99.92 vbantispam-plus.gif
FortiMail 4853 0 0.00% 467 284861.2 99.84% 99.84 vbantispam-plus.gif
IBM 4853 0 0.00% 388.6 284939.6 99.86% 99.86 vbantispam-plus.gif
Libraesva 4853 0 0.00% 242.8 285085.4 99.91% 99.91 vbantispam-plus.gif
Spamhaus DQS 4853 0 0.00% 1158.2 284169 99.59% 99.49 vbantispam-plus.gif
ZEROSPAM 4852 1 0.02% 1298.6 284013.6 99.54% 99.36 vbantispam-pass.gif
Abusix Mail Intelligence* 4844 9 0.19% 2126.6 283201.6 99.25% 98.35 N/A
IBM X-Force Combined* 4852 1 0.02% 5469.4 279858.8 98.08% 97.98 N/A
IBM X-Force IP* 4852 1 0.02% 10884.8 274443.4 96.19% 96.08 N/A
IBM BL - URL* 4853 0 0.00% 99019.2 186309 65.30% 65.30 N/A

*These products are partial solutions and their performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)



  Newsletters Malware Phishing Project Honey Pot Abusix STDev†
False positives FP rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate
Axway 0 0.0% 250 86.01% 40 98.10% 41 99.89% 460.8 99.81% 1.32
Bitdefender 0 0.0% 25 98.60%    22 98.95% 4 99.99% 236 99.89% 0.28
FortiMail 0 0.0% 14 99.22% 64 96.96% 97 99.73% 370 99.81% 0.84
IBM 0 0.0% 21 98.82% 35 98.34% 97.8 99.73% 290.8 99.84% 0.54
Libraesva 0 0.0% 1 99.94% 25 98.81% 37.6 99.90% 205.2 99.90% 0.38
Spamhaus DQS 5 0.9% 19 98.94% 62 97.05% 256.8 99.30% 901.4 99.59% 1.00
ZEROSPAM 4 0.7% 6 99.66% 30 98.57% 289.4 99.21% 1009.2 99.53% 1.41
Abusix Mail Intelligence* 0 0.0% 50 97.20% 48 97.72% 1641.4 95.51% 485.2 99.78% 1.27
IBM X-Force Combined* 0 0.0% 227 87.30% 240 88.60% 641 98.25% 4828.4 98.01% 2.69
IBM X-Force IP* 0 0.0% 232 87.02% 267 87.32% 1010.8 97.24% 9874 95.99% 4.39
IBM BL - URL* 0 0.0% 1724 3.53% 1740 17.34% 8703 76.22% 90316.2 63.64% 17.39

*These products are partial solutions and their performance should not be compared with that of other products. None of the queries to the IP blacklists included any information on the attachments; hence their performance on the malware corpus is added purely for information.
† The standard deviation of a product is calculated using the set of its hourly spam catch rates.
(Please refer to the text for full product names and details.)



  Speed
10% 50% 95% 98%
Axway speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Bitdefender speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
FortiMail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
IBM speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Libraesva speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-YELLOW.jpg
Spamhaus DQS speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
ZEROSPAM speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg

(Please refer to the text for full product names and details.)

speed-colour-blobs-GREEN.jpg 0-30 seconds speed-colour-blobs-YELLOW.jpg 30 seconds to two minutes speed-colour-blobs-ORANGE.jpg two minutes to 10 minutes speed-colour-blobs-RED.jpg more than 10 minutes



Products ranked by final score
Bitdefender 99.92
Libraesva 99.91
IBM 99.86
FortiMail 99.84
Axway 99.82
Spamhaus DQS 99.49
ZEROSPAM 99.36

(Please refer to the text for full product names and details.)



Hosted solutions Anti-malware IPv6 DKIM SPF DMARC Multiple MX-records Multiple locations
ZEROSPAM ClamAV

(Please refer to the text for full product names and details.)



Local solutions Anti-malware IPv6 DKIM SPF DMARC Interface
CLI GUI Web GUI API
Axway Kaspersky, McAfee
Bitdefender Bitdefender
FortiMail Fortinet
IBM Sophos; IBM Remote Malware Detection
Libraesva ClamAV; others optional
Spamhaus DQS Optional

(Please refer to the text for full product names and details.)






Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver20.

The test ran for 19 days, from 12am on 7 November to 12am on 26 November 2020 (GMT).

The test corpus consisted of 291,075 emails. 285,669 of these were spam, 36,705 of which were provided by Project Honey Pot, with the remaining 248,964 spam emails provided by Abusix. There were 4,853 legitimate emails (‘ham’) and 553 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

426 emails in the spam corpus were considered ‘unwanted’ (see the June 2018 report3) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 1,787 emails from the spam corpus were found to contain a malicious attachment while 2,105 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command4.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.



Footnotes

1 Spamhaus DQS is a custom solution built on top of the SpamAssassin open-source anti-spam platform.

2 This analysis is not intended to be exhaustive research on these samples but rather a short overview of the most commonly missed malware and phishing emails in the test.

3 https://www.virusbulletin.com/virusbulletin/2018/06/vbspam-comparative-review.

4 http://www.postfix.org/XCLIENT_README.html
