VBSpam Email Security Comparative Review - March 2022

Ionuţ Răileanu & Adrian Luca

Virus Bulletin

Copyright © 2022 Virus Bulletin


Introduction

In this, the Q1 2022 VBSpam Test, which forms part of Virus Bulletin’s continuously running security product test suite, six full email security solutions, one custom configured solution1, one open-source solution and two blocklists were assembled on the test bench to measure their performance against various streams of wanted, unwanted and malicious emails.

This report highlights some of the latest email-related threats and how security solutions respond to them. Emotet reappeared shortly after the end of the Q4 2021 VBSpam test cycle, and in the Q1 2022 test it accounted for a large portion of the Malware corpus. During the test period, there was always at least one security solution that managed to block each of the threats we encountered.

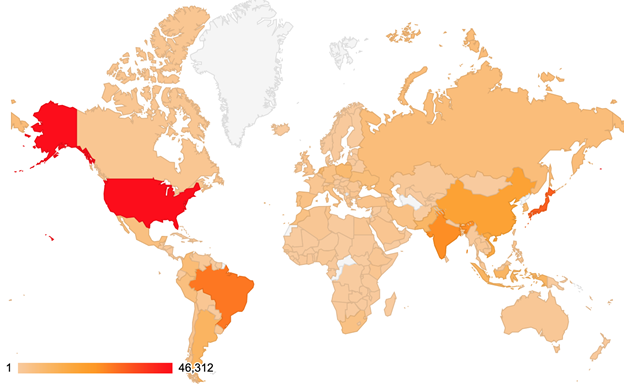

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test. (Note: these statistics are relevant only to the spam samples we received during the test period.)

# Sender's IP country Percentage of spam
1 United States 12.70%
2 Japan 8.76%
3 Brazil 7.77%
4 India 6.80%
5 China 5.02%
6 Vietnam 4.14%
7 Argentina 2.74%
8 Indonesia 2.64%
9 Pakistan 2.53%
10 Republic of Korea 2.08%




Malware and phishing

In this section we highlight the malware and phishing campaigns that managed to evade the filters of most of the tested solutions. This is not intended to be an exhaustive analysis of these samples, rather we aim for this information to be of value for those interested in protecting and defending against some of the latest threats in the email landscape.



Emotet

Having made a return to the threat landscape, the majority of the malicious samples2 spotted in this test were linked to Emotet malspam campaigns. One campaign in particular managed to evade the filters of most of the tested solutions. The emails contained just a few lines of text and a password-protected archive.

The following are some of the characteristics of the malicious attachments:

Names:

Documento.zip
latest-inquiry.tar.lz

SHA256:

0bb184f9c3e9cda4571bd806b90dbda484c331d9dce7af784405fd211f6c71c4
018eab1eef8c06c556addcc986a71b4c5beb6478945706cbb6c929feeda71d65
15c365c0de7aa4340bfe6c7aa3fc2e6c6e55cc9b5b6ee1c32d775ee5a5b4da97

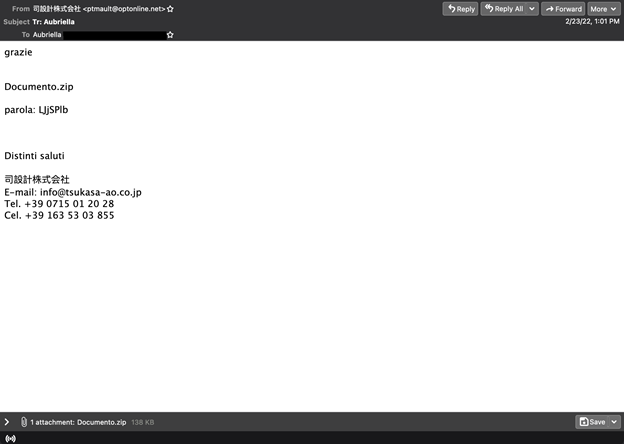

emotet.pngEmail from Emotet campaign.



GuLoader

GuLoader3 is the name of a family of trojans that download and install additional malware. One malspam campaign caught our attention because it wasn’t blocked by many of the tested solutions. We saw it active on 11 February for about an hour, from 09:30 to 10:30 UTC. The emails were sent from the same IP address, 161.35.194.187, and with the same email address in the ‘From’ header, [email protected].

The attached archive4 (78d5cacc818324c953c604fc93e8d2eddc212aa1e59afbf599efa9077d0bec0b), named DOC‑009323.tar.lz, downloaded a vbs file which further loaded the GuLoader.

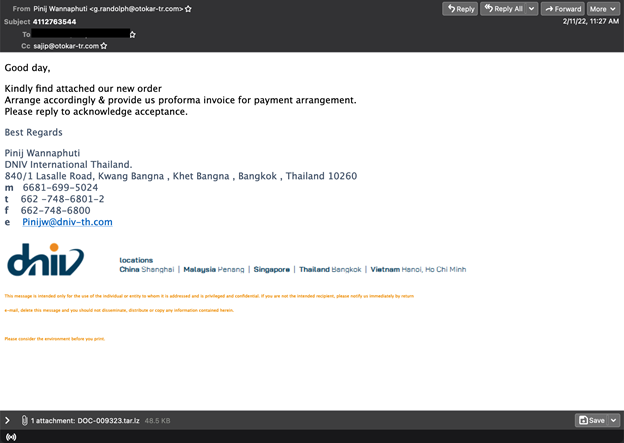

guloader.pngEmail from GuLoader campaign.


Vidar stealer

This is another brief campaign that we saw active for a short period on 13 February, from 22:40 to 22:51 UTC. It contained a jnlp attachment which, from our analysis, seems to download a piece of spyware associated with Vidar stealer.

The following are some features of the malicious attachments:

Names:

IMG_88162302..jnlp
IMG_573435033497856..jnlp
IMG_5736097004354..jnlp

SHA256:

102922875f9fd767c6dd985c2f54baaba13e0420afbc0a42d45d5e80e3aca2b8
72d54d8d584434842dba9fefa33608db0faaf25a2b002c390905ff32aae146b7
9963662ff89d728aa858d5d6fa2c1600c34532f94ea351d953d5b9174170e9b3

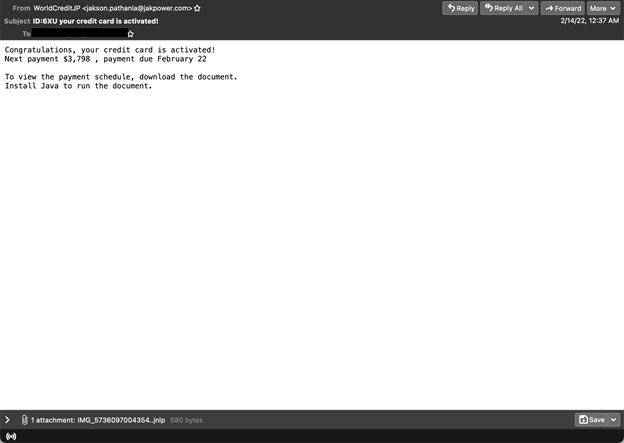

vidar-stealer.pngEmail with attachment that appears to download spyware associated with Vidar stealer.



Qakbot/Qbot5

The majority of the missed phishing emails in the test were part of a Qakbot/Qbot spam campaign. The malicious URLs were injected into other conversations/emails. The URL itself wasn’t clickable and in some cases it was reported to have no payload. In most cases on copying the URL and directly accessing it, a zip file was downloaded containing a malicious Office document.

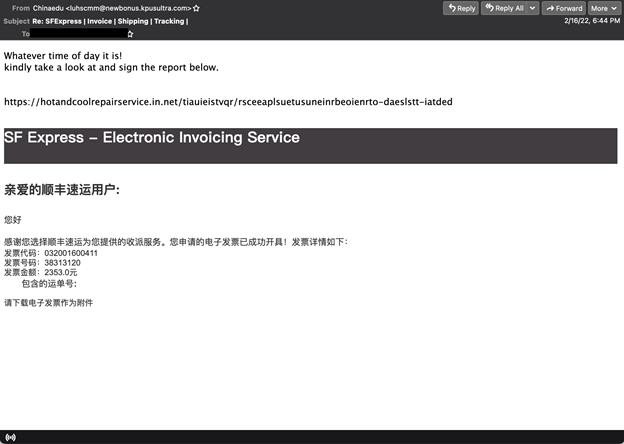

Qakbot.pngEmail from a Qakbot campaign.



Results

The majority of the tested solutions managed to achieve high spam catch rates with values higher than 99%. A better comparison of performance can be made by analysing the products’ malware and phishing catch rates (both of which are subsets of the Spam corpus). Of particular note was the performance of Libraesva with a 100% phishing catch rate and only two missed malware samples. Also noteworthy was N-able Mail Assure, which scored a 99.96% malware catch rate (just seven missed samples).

Of the participating full solutions, two – Libraesva and Zoho Mail – achieved a VBSpam award, whilst the other four – Bitdefender, Cleanmail, Fortinet, N-able Mail Assure – as well as the custom configured solution Spamhaus Data Query Service (DQS) + SpamAssassin all earned VBSpam+ certification.



Bitdefender Security for Mail Servers 3.1.7

SC rate: 99.93%
FP rate: 0.00%
Final score: 99.93
Malware catch rate: 98.84%
Phishing catch rate: 99.73%
Project Honey Pot SC rate: 100.00%
Abusix SC rate: 99.93%
MXMailData SC rate: 99.61%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN


Bitdefender starts the year with a VBSpam+ award for the Q1 VBSpam Test. The product’s results continue to be steady and reliable. It impresses with a 100% catch rate of the Project Honey Pot samples and with no false positives.



Cleanmail Domain Gateway

SC rate: 99.91%
FP rate: 0.00%
Final score: 99.87
Malware catch rate: 99.40%
Phishing catch rate: 99.35%
Project Honey Pot SC rate: 99.93%
Abusix SC rate: 99.91%
MXMailData SC rate: 99.84%
Newsletters FP rate: 1.8%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN

The developers of the Cleanmail product have good reason to be proud of their solution. The lack of false positives combined with a high spam catch rate earns them a VBSpam+ award for the current test. Also worthy of note are the higher than 99% malware and phishing catch rates.



Fortinet FortiMail

SC rate: 99.77%
FP rate: 0.00%
Final score: 99.74
Malware catch rate: 97.28%
Phishing catch rate: 99.08%
Project Honey Pot SC rate: 99.84%
Abusix SC rate: 99.80%
MXMailData SC rate: 98.40%
Newsletters FP rate: 0.9%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN

As in previous tests, Fortinet continues to show a balanced performance. The product’s final score was a little influenced by a single false positive in the newsletter corpus, but remains high thanks to a 99.77% spam catch rate. In this test the product earns its fourth VBSpam+ certification in a row.



Libraesva ESG v.4.7

SC rate: 99.97%
FP rate: 0.10%
Final score: 99.44
Malware catch rate: 99.99%
Phishing catch rate: 100.00%
Project Honey Pot SC rate: 99.95%
Abusix SC rate: 99.97%
MXMailData SC rate: 99.99%
Newsletters FP rate: 1.8%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg

Libraesva continues to achieve the highest malware and phishing catch rates of all the products in the test. The product’s spam catch rate is also impressive, with 99.97% of the samples being blocked, and it easily achieves a VBSpam award.



N-able Mail Assure

SC rate: 99.94%
FP rate: 0.00%
Final score: 99.94
Malware catch rate: 99.96%
Phishing catch rate: 99.49%
Project Honey Pot SC rate: 99.90%
Abusix SC rate: 99.94%
MXMailData SC rate: 99.97%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN

On only its third time participating in the VBSpam Test N-able Mail Assure takes first place in the final score rankings. The lack of false positives and spam catch rates higher than 99.90% earns it a VBSpam+ certification as well.



Rspamd

SC rate: 99.10%
FP rate: 0.41%
Final score: 96.99
Malware catch rate: 90.93%
Phishing catch rate: 95.77%
Project Honey Pot SC rate: 98.47%
Abusix SC rate: 99.35%
MXMailData SC rate: 94.21%
Newsletters FP rate: 1.8%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN


This is the fifth test in a row for open-source solution Rspamd and its results continue to get better each time. On this occasion it came very close to the final score threshold required for a VBSpam certification, missing it by only a shade over one percentage point, and achieving an impressive 99.10% spam catch rate.



Spamhaus Data Query Service (DQS) + SpamAssassin

SC rate: 99.54%
FP rate: 0.00%
Final score: 99.54
Malware catch rate: 97.40%
Phishing catch rate: 97.65%
Project Honey Pot SC rate: 99.20%
Abusix SC rate: 99.59%
MXMailData SC rate: 99.46%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN

Spamhaus Data Query Service + SpamAssassin is a custom configured product that integrates the Spamhaus DQS DNSBL service and the free open-source SpamAssassin solution. In this test, the product showed a balanced performance with no false positives and a spam catch rate higher than 99.50%, a performance worthy of a VBSpam+ certification.



Zoho Mail

SC rate: 99.69%
FP rate: 0.02%
Final score: 99.57
Malware catch rate: 99.35%
Phishing catch rate: 99.14%
Project Honey Pot SC rate: 99.03%
Abusix SC rate: 99.80%
MXMailData SC rate: 99.40%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN

On its second participation in the VBSpam Test, Zoho Mail put in a very good performance. With malware and phishing catch rates higher than 99% and a final score of 99.57, Zoho easily achieves a VBSpam award.



Abusix Mail Intelligence

SC rate: 99.42%
FP rate: 0.00%
Final score: 99.37
Malware catch rate: 92.76%
Phishing catch rate: 98.76%
Project Honey Pot SC rate: 98.61%
Abusix SC rate: 99.71%
MXMailData SC rate: 94.08%
Newsletters FP rate: 1.8%

Abusix Mail Intelligence is a set of blocklists that is tested as a partial solution because it has access only to parts of the emails (IP addresses, domains, URLs), which are queried as to their DNS zones. With this setup, the very high 99.42% spam catch rate and the lack of ham false positives is very impressive.



Spamhaus Public Mirrors

SC rate: 73.43%
FP rate: 0.24%
Final score: 72.22
Malware catch rate: 59.74%
Phishing catch rate: 43.00%
Project Honey Pot SC rate: 78.71%
Abusix SC rate: 73.15%
MXMailData SC rate: 57.69%
Newsletters FP rate: 0.0%

Spamhaus Public Mirrors is a new entry in this test. It is tested as a partial solution because it has access only to parts of the emails (IP addresses, domains, URLs), which are queried as to their DNS zones.



Results tables

  True negatives False positives FP rate False negatives True positives SC rate Final score VBSpam
Bitdefender 4103 0 0.00% 284 389536 99.93% 99.93 vbantispam-plus.gif
Cleanmail 4103 0 0.00% 334.2  389485.8  99.91% 99.87 vbantispam-plus.gif
FortiMail 4103 0 0.00% 901.8  388918.2  99.77% 99.74  vbantispam-plus.gif
Libraesva  4099 4 0.10% 115 389705  99.97% 99.44  vbantispam-pass.gif
N-able Mail Assure  4103 0 0.00% 249.2  389570.8  99.94% 99.94 vbantispam-plus.gif
Rspamd  4086 17 0.41%  3493.8  386326.2  99.10% 96.99
Spamhaus Data Query Service (DQS) + SpamAssassin  4103 0 0.00% 1806.4  388013.6  99.54% 99.54 vbantispam-plus.gif
Zoho Mail  4102 1 0.02%  1207 388613  99.69%  99.57 vbantispam-pass.gif
Abusix Mail Intelligence*  4103 0 0.00% 2266.2  387553.8  99.42% 99.37
Spamhaus Public Mirrors*  4093 10 0.24%  103575.2  286244.8  73.43%  72.22

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*These products are partial solutions and their performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)

  Newsletters Malware Phishing Project Honey Pot Abusix MXMailData STDev
False positives FP rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate
Bitdefender 0 0.0% 204 98.84% 10 99.73% 0 100.00% 243 99.93% 41 99.61% 0.32
Cleanmail 2 1.8% 106 99.40% 24 99.35% 32.2 99.93% 285 99.91% 605 94.21% 0.25
FortiMail 1 0.9% 478 97.28% 34 99.08% 76.6 99.84% 658.2 99.80% 1 99.99% 0.49
Libraesva 2 1.8% 2 99.99% 0 100.00% 23.8 99.95% 90.2 99.97% 167 98.40% 0.12
N-able Mail Assure 0 0.0% 7 99.96% 19 99.49% 51.2 99.90% 195 99.94% 56 99.46% 0.18
Rspamd 2 1.8% 1593 90.93% 157 95.77% 749.6 98.47% 2139.2 99.35% 17 99.84% 1.39
Spamhaus Data Query Service (DQS) + SpamAssassin  0 0.0% 457  97.40%  87 97.65%  390.2 99.20%  1360.2  99.59% 63 99.40%  0.7
Zoho Mail  0 0.0% 114 99.35%  32 99.14%  474.8  99.03% 669.2  99.80% 3 99.97%  0.43
Abusix Mail Intelligence*  2 1.8%  1272 92.76%  46 98.76%  680.2 98.61%  967 99.71%  619 94.08%  1.02
Spamhaus Public Mirrors*  0 0.0% 7071  59.74%  2114  43.00%  10409  78.71%  88742.2  73.15%  4424  57.69%  20.45

The standard deviation of a product is calculated using the set of its hourly spam catch rates.
Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*These products are partial solutions and their performance should not be compared with that of other products. None of the queries to the IP blocklist included any information on the attachments; hence their performance on the malware corpus is added purely for information.
(Please refer to the text for full product names and details.)



   Speed
10% 50% 95% 98%
Bitdefender speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Cleanmail Domain Gateway speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
FortiMail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Libraesva speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-YELLOW.jpg
N-able Mail Assure speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Rspamd speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Spamhaus Data Query Service (DQS) + SpamAssassin speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Zoho Mail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
speed-colour-blobs-GREEN.jpg 0-30 seconds speed-colour-blobs-YELLOW.jpg 30 seconds to two minutes speed-colour-blobs-ORANGE.jpg two minutes to 10 minutes speed-colour-blobs-RED.jpg more than 10 minutes

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.



Products ranked by final score
N-able Mail Assure 99.94
Bitdefender 99.93
Cleanmail Domain Gateway 99.87
FortiMail 99.74
Zoho Mail 99.57
Spamhaus Data Query Service (DQS) + SpamAssassin 99.54
Libraesva 99.44
Abusix Mail Intelligence* 99.37
Rspamd 96.99
Spamhaus Public Mirrors* 72.22

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*These products are partial solutions and their performance should not be compared with that of other products.



Hosted solutions Anti-malware IPv6 DKIM SPF DMARC Multiple MX-records Multiple locations
Cleanmail Domain Gateway Cleanmail
N-able Mail Assure N-able Mail Assure
Zoho Mail Zoho

(Please refer to the text for full product names and details.)



Local solutions Anti-malware IPv6 DKIM SPF DMARC Interface
CLI GUI Web GUI API
Bitdefender Bitdefender
FortiMail Fortinet
Libraesva ClamAV; others optional
Rspamd None
Spamhaus Data Query Service (DQS) + SpamAssassin Optional

(Please refer to the text for full product names and details.)
Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.




(Please refer to the text for full product names and details.)



Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver20.

The test ran for 19 days, from 12am on 5 February to 12am on 24 February 2022 (GMT) – the test period was three days longer than usual as a result of some technical issues experienced 8 to 9 February.

The test corpus consisted of 394,101 emails. 389,888 of these were spam, 48,953 of which were provided by Project Honey Pot, 330,478 were provided by Abusix with the remaining 10,457 spam emails provided by MXMailData. There were 4,103 legitimate emails (‘ham’) and 110 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

85 emails in the spam corpus were considered ‘unwanted’ (see the June 2018 report6) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 17,562 emails from the spam corpus were found to contain a malicious attachment while 3,709 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command7.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.



Footnotes

1 Spamhaus Data Query Service (DQS) + SpamAssassin is a custom solution built on top of the SpamAssassin open-source anti-spam platform.

2 https://bazaar.abuse.ch/sample/0bb184f9c3e9cda4571bd806b90dbda484c331d9dce7af784405fd211f6c71c4/.

3 https://blog.malwarebytes.com/detections/trojan-guloader/.

4 https://bazaar.abuse.ch/sample/b3b697f1100c8c075aaf74d735416c94ff4e6a4940dccf111c7183ea8a098739#file_info.

5 https://app.any.run/tasks/1bfdd424-ed90-4b33-9611-d8d04f433630/.

6 https://www.virusbulletin.com/virusbulletin/2018/06/vbspam-comparative-review.

7 http://www.postfix.org/XCLIENT_README.html.



Download PDF




Latest reviews:

VBSpam Comparative Review

In the Q2 2022 VBSpam Test seven full email security solutions, one custom configured solution, one open-source solution and two blocklists were assembled on the test bench to measure their performance against various streams of wanted, unwanted and…

VBSpam Comparative Review

In the Q1 2022 VBSpam Test six full email security solutions, one custom configured solution, one open-source solution and two blocklists were assembled on the test bench to measure their performance against various streams of wanted, unwanted and…

VBSpam Comparative Review

In the Q4 2021 VBSpam test the performance of nine full email security solutions, one custom configured solution, one open-source solution and one blocklist was measured against various streams of wanted, unwanted and malicious emails.

VBSpam Comparative Review

In this test the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist was measured against various streams of wanted, unwanted and malicious emails.

VBSpam Comparative Review - June 2021

In this test the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist was measured against various streams of wanted, unwanted and malicious emails.

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
