VBSpam Email Security Comparative Review - December 2022

Ionuţ Răileanu & Adrian Luca

Virus Bulletin

Copyright © 2022 Virus Bulletin


Introduction

In this test – which forms part of Virus Bulletin’s continuously running security product test suite – we measured the performance of a number of email security solutions against various streams of wanted, unwanted and malicious emails. One third of the solutions we tested opted to be included in the public test, the rest opting for private testing (all details and results remaining unpublished). The solutions tested publicly were eight full email security solutions, one custom configured solution1, one open-source solution and one blocklist.

This Q4 2022 report marks the 70th VBSpam test since VBSpam certification began in 2009 – we thank all those who have participated, and on this occasion we also welcome Mimecast, which makes its VBSpam debut in this test.

During the 16 days in which the test ran we saw a fair number of malware and phishing attacks, but the security solutions proved to be a good line of defence, blocking the majority of spam samples in the test.

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test. (Note: these statistics are relevant only to the spam samples we received during the test period.)

# Sender's IP country Percentage of spam
1  Brazil  10.16%
2  China  6.93%
3  Japan  6.28%
4  India  5.45%
5  United States  5.20%
6  Argentina  4.11%
7  France  3.16%
8  Republic of Korea  3.08%
9  Vietnam  2.71%
10  Peru  2.19%

Top 10 countries from which spam was sent.

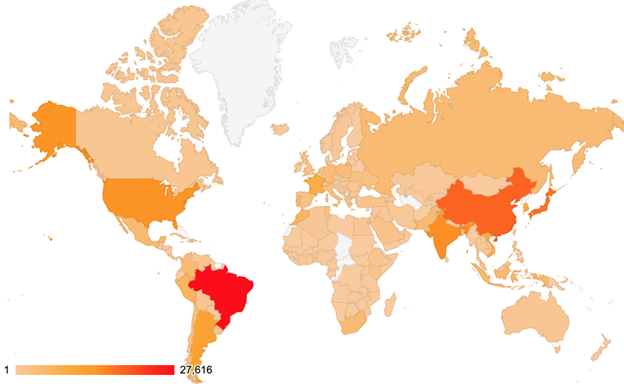

Geographical distribution of spam based on sender IP address.





Malware and phishing

Agent Tesla

This malware sample was one of those that managed to escape detection by most of the solutions in the test. It was reported to have been linked with Agent Tesla2. We saw only two samples of this kind, each with the same gz archive attached. The Agent Tesla remote access trojan (RAT) was hidden in the archive with an inflated executable. The following are some features:

  • Subject: po
  • Mail From: kittinan@tomasaccesorios[.]com[.]ar
  • Attachment name: G88AH33-339.gz
  • Attachment SHA256: 6d9efa19352da2c7a37b43b5c854f660c562b93ef07711f1186cce78cebfafd0
  • First seen: 10 November at 02:38 UTC and 08:09 UTC

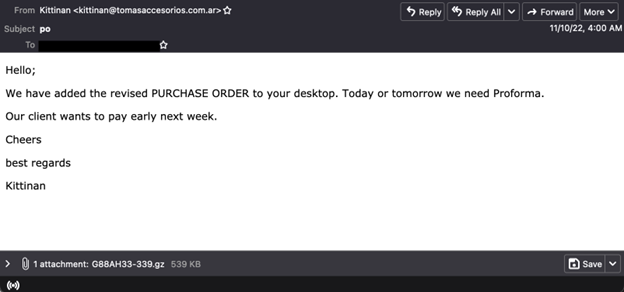

agent tesla.pngMalspam sample with an Agent Tesla infected attachment.



Emotet

The Emotet malspam campaign continues to evolve, representing a recurring challenge for security solutions. The emails contain a few lines of text and a password to open the password-protected attachment.

A new feature3 of this particular Emotet campaign is the attacker’s attempt to get the user to manually copy the malicious xls file to a location that is bypassed by default by Microsoft Office scanners.

emotet-contetn.pngContent of the Emotet xls infected files.

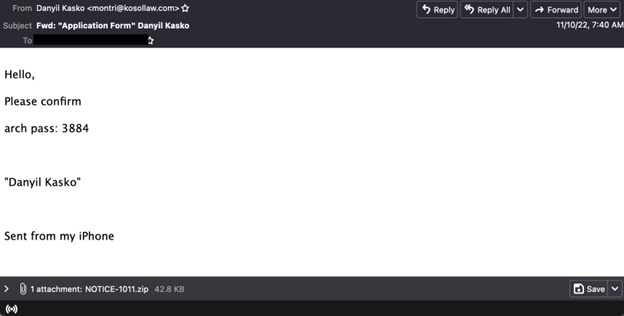

Malspam sample with an Emotet infected attachment.



Banking phishing

We continue to see a diversity of languages in the most commonly missed phishing emails. In this test, these happened to be banking phishing emails, abusing social media shortening URLs (t[.]co, lnkd[.]in).

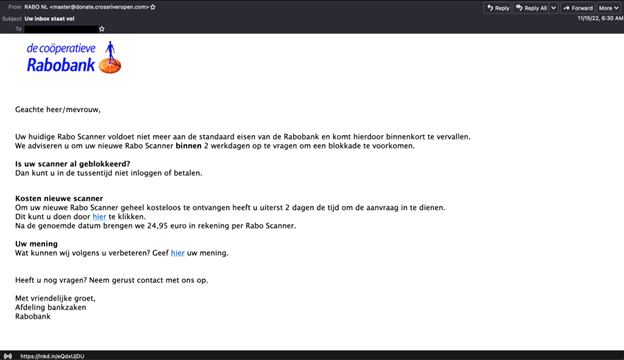

German-banking-phish.pngGerman banking phishing sample using a lnkd[.]in shortening URL.

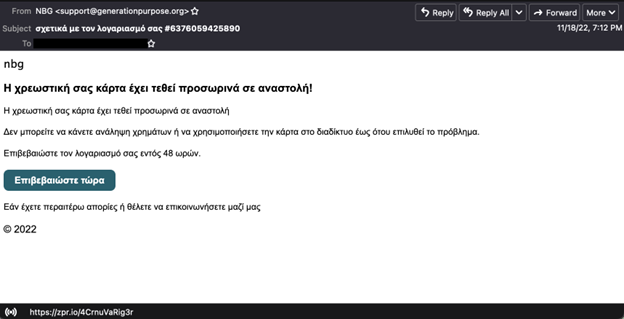

Greek-banking-phish.pngGreek banking phishing sample.

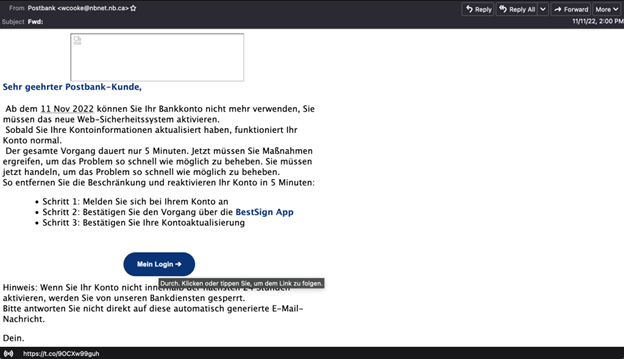

German-phish-tco.pngGerman phishing sample using a t[.]co shortening URL.



Results

The majority of the tested solutions achieved spam catch rates of more than 99%. A better comparison can be made by analysing the products’ performance against the malware and phishing sets, both of which are subsets of the spam corpus. Here we highlight the performance of Cleanmail and Mimecast, which both achieved a 100% malware catch rate, as well as that of Bitdefender, which only missed one phishing sample.

Of the participating full solutions, one (Zoho Mail) achieved a VBSpam award, while seven were awarded a VBSpam+ certification: Bitdefender, Cleanmail, Fortinet, Mimecast, N-able Mail Assure, N-able SpamExperts and SEPPmail.



Bitdefender Security for Mail Servers 3.1.7

SC rate: 99.98%
FP rate:
0.00%
Final score:
99.98
Malware catch rate:
99.82%
Phishing catch rate:
99.98%
Project Honey Pot SC rate:
99.99%
Abusix SC rate:
99.98%
MXMailData SC rate:
99.87%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Bitdefender’s performance in the Q4 2022 VBSpam test is impressive. The product’s VBSpam+ certification streak continues, this time with a final score of 99.98, the highest phishing catch rate in this test, and no ham or newsletter false positives.



Cleanmail Domain Gateway

SC rate: 99.94%
FP rate:
0.00%
Final score:
99.94
Malware catch rate:
100.00%
Phishing catch rate:
99.55%
Project Honey Pot SC rate:
99.91%
Abusix SC rate:
99.95%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



No malware sample managed to evade Cleanmail’s filters, and the product correctly classified all ham and newsletter samples. With a spam catch rate of 99.94%, Cleanmail easily achieves VBSpam+ certification.



Fortinet FortiMail

SC rate: 99.97%
FP rate:
0.00%
Final score:
99.97
Malware catch rate:
99.84%
Phishing catch rate:
99.90%
Project Honey Pot SC rate:
99.94%
Abusix SC rate:
99.97%
MXMailData SC rate:
99.75%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Fortinet’s performance in this test was impressive too. With catch rates exceeding 99% in the malware, phishing and spam sets, and no false positives of any kind, Fortinet earns a VBSpam+ award.



Mimecast

SC rate: 99.94%
FP rate:
0.00%
Final score:
99.90
Malware catch rate:
100.00%
Phishing catch rate:
99.43%
Project Honey Pot SC rate:
99.62%
Abusix SC rate:
99.96%
MXMailData SC rate:
100.00%
Newsletters FP rate:
1.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Mimecast makes a strong debut in the VBSpam test. Alongside a perfect performance on the malware corpus, we highlight the lack of ham false positives and a 99.94% spam catch rate. The product earns a VBSpam+ award on its first visit to the VBSpam test bench.



N-able Mail Assure

SC rate: 99.91%
FP rate:
0.00%
Final score:
99.91
Malware catch rate:
99.84%
Phishing catch rate:
99.06%
Project Honey Pot SC rate:
99.71%
Abusix SC rate:
99.93%
MXMailData SC rate:
99.92%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



It was another great performance for N-able Mail Assure in the Q4 2022 VBSpam test. With malware, phishing and spam catch rates all exceeding 99%, and no ham or newsletter false positives, the product is awarded VBSpam+ certification.



N-able SpamExperts

SC rate: 99.91%
FP rate:
0.00%
Final score:
99.91
Malware catch rate:
99.84%
Phishing catch rate:
99.06%
Project Honey Pot SC rate:
99.71%
Abusix SC rate:
99.93%
MXMailData SC rate:
99.92%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



N-able’s second entry in this test, SpamExperts, put in a similiarly impressive performance, also achieving malware, phishing and spam catch rates in excess of 99% and a zero false positive score. Thus SpamExperts is also awarded VBSpam+ certification.



Rspamd

SC rate: 97.63%
FP rate: 0.93%
Final score: 92.93
Malware catch rate: 63.58%
Phishing catch rate: 91.11%
Project Honey Pot SC rate: 96.60%
Abusix SC rate: 98.04%
MXMailData SC rate: 62.73%
Newsletters FP rate: 2.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN




In this test, the open-source Rspamd struggled a little with the samples in the malware corpus, but the numbers for the overall spam corpus are encouraging, with a decent catch rate of 97.63%.



SEPPmail.cloud Filter

SC rate: 99.98%
FP rate:
0.00%
Final score:
99.95
Malware catch rate:
99.92%
Phishing catch rate:
99.92%
Project Honey Pot SC rate:
99.86%
Abusix SC rate:
99.99%
MXMailData SC rate:
99.87%
Newsletters FP rate:
1.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg



The developers of the Swiss-based SEPPmail solution have good reason to be proud of their product, which achieved the highest spam catch rate in this test, alongside a zero false positive rate. What’s more, the product scored over 99.90% against the malware and phishing sets. SEPPmail earns a VBSpam+ award.



Spamhaus Data Query Service + SpamAssassin

SC rate: 97.79%
FP rate: 0.00%
Final score: 97.79
Malware catch rate: 99.35%
Phishing catch rate: 98.07%
Project Honey Pot SC rate: 98.49%
Abusix SC rate: 97.72%
MXMailData SC rate: 99.07%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN




Spamhaus Data Query Service + SpamAssassin is a custom configured solution that integrates the Spamhaus DQS DNSBL service and the free open-source solution SpamAssassin. In this test the combined solution correctly identified all ham and newsletter samples, and although it didn’t reach the VBSpam certification threshold we highlight its impressive malware and phishing catch rates.



Zoho Mail

SC rate: 99.64%
FP rate: 0.00%
Final score: 99.52
Malware catch rate: 97.33%
Phishing catch rate: 99.02%
Project Honey Pot SC rate: 99.13%
Abusix SC rate: 99.70%
MXMailData SC rate: 97.14%
Newsletters FP rate: 3.2%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Zoho Mail achieved a decent overall spam catch rate exceeding 99.60%. We continued to see a good performance on the phishing samples as well, with a 99.02% catch rate and no ham false positives. Zoho Mail easily earns a VBSpam award.



Abusix Mail Intelligence

SC rate: 99.02%
FP rate: 0.00%
Final score: 98.94
Malware catch rate: 65.28%
Phishing catch rate: 96.80%
Project Honey Pot SC rate: 95.16%
Abusix SC rate: 99.66%
MXMailData SC rate: 63.02%
Newsletters FP rate: 2.1%

Abusix Mail Intelligence is a set of blocklists that is tested as a partial solution because it has access only to parts of the emails (IP addresses, domains, URLs), which are queried to their DNS zones. With this setup, the 99.02% spam catch rate and lack of ham false positives is very impressive.



Results tables

  True negatives False positives FP rate False negatives True positives SC rate Final score VBSpam
Bitdefender 2578 0 0.00% 41.8 271795.6 99.98% 99.98 vbantispam-plus.gif
Cleanmail Domain Gateway 2578 0 0.00% 150.6 271686.8 99.94% 99.94 vbantispam-plus.gif
FortiMail 2578 0 0.00% 86.4 271751 99.97% 99.97 vbantispam-plus.gif
Mimecast 2578 0 0.00% 165.4 271672 99.94% 99.90 vbantispam-plus.gif
N-able Mail Assure 2578 0 0.00% 234.4 71603 99.91% 99.91 vbantispam-plus.gif
N-able SpamExperts 2578 0 0.00% 232.4 71605 99.91% 99.91 vbantispam-plus.gif
Rspamd 2554 24 0.93% 6440 265397.4 97.63% 92.93
SEPPmail.cloud Filter 2578 0 0.00% 43.4 271794 99.98% 99.95 vbantispam-plus.gif
Spamhaus Data Query Service (DQS) + SpamAssassin 2578 0 0.00% 6011.8 265825.6 97.79% 97.79
Zoho Mail 2578 0 0.00% 986 270851.4 99.64% 99.52 vbantispam-pass.gif
Abusix Mail Intelligence* 2578 0 0.00% 2676.8 269160.6 99.02% 98.94 N/A

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)



  Newsletters Malware Phishing   Project Honey Pot
Abusix MXMailData STDev
False positives FP rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate
Bitdefender 0 0.0% 7 99.82%  1 99.98%  1 99.99% 41 99.98%  3 99.87%  0.12
Cleanmail Domain Gateway 0 0.0% 0 100.00% 22  99.55%  17 99.91%  136 99.95%  0 100.00%  0.27
FortiMail 0 0.0% 6 99.84%  5 99.90%  12 99.94%  70 99.97%  6 99.75%  0.19
Mimecast 1 1.1% 0 100.00% 28 99.43%  73.8 99.62%  98 99.96%  0 100.00% 0.4
N-able Mail Assure  0 0.0% 6 99.84% 46 99.06%  56.8  99.71%  178 99.93%  2 99.92%  0.48
N-able SpamExperts  0 0.0% 6 99.84% 46 99.06%  55.8 99.71%  177 99.93%  2 99.92%  0.47
Rspamd  2 2.1% 1406  63.58%  434 91.11%  658.2 96.60%  4915 98.04%  886 62.73%  5.28
SEPPmail.cloud Filter  1 1.1% 3 99.92%  4 99.92%  27 99.86%  15 99.99%  3 99.87%  0.16
Spamhaus Data Query Service (DQS) + SpamAssassin 0 0.0% 25 99.35%  94 98.07%  291.8  98.49%  5706 97.72%  22 99.07%  8.7
Zoho Mail 3 3.2% 103 97.33%  48 99.02%  168.6  99.13% 763  99.69%  68 97.14%  0.93
Abusix Mail Intelligence* 2 2.1% 1340 97.14%  156 96.80%  936.4  95.16%  863 99.65%  879 63.02%  2.5

The standard deviation of a product is calculated using the set of its hourly spam catch rates.
Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products. None of the queries to the IP blocklist included any information on the attachments; hence its performance on the malware corpus is added purely for information.
(Please refer to the text for full product names and details.)





   Speed
10% 50% 95% 98%
Bitdefender speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Cleanmail Domain Gateway speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
FortiMail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Mimecast speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Mail Assure speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Spam Experts speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Rspamd speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
SEPPmail.cloud Filter speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-YELLOW.jpg
Spamhaus Data Query Service (DQS) + SpamAssassin speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Zoho Mail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
speed-colour-blobs-GREEN.jpg 0-30 seconds speed-colour-blobs-YELLOW.jpg 30 seconds to two minutes speed-colour-blobs-ORANGE.jpg two minutes to 10 minutes speed-colour-blobs-RED.jpg more than 10 minutes

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
(Please refer to the text for full product names and details.)

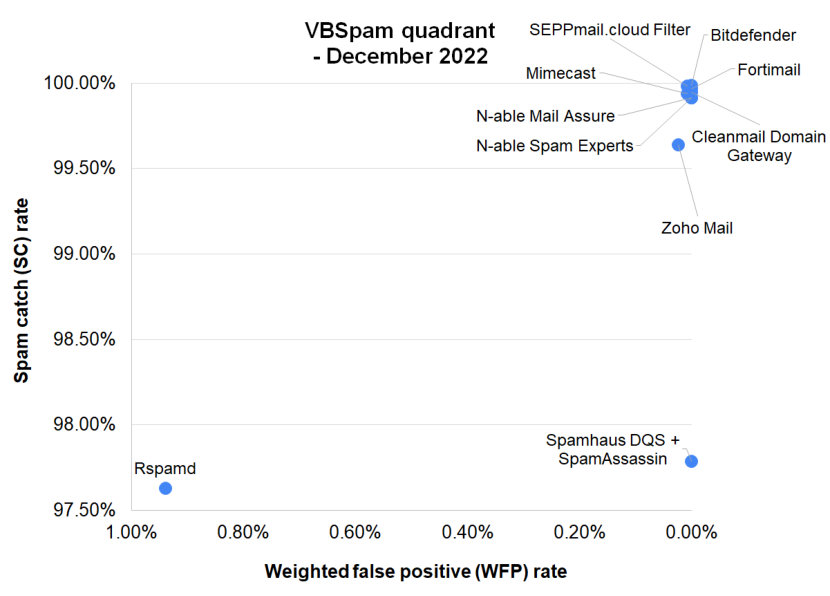

Products ranked by final score
Bitdefender 99.98
FortiMail 99.97
SEPPmail.cloud Filter 99.95
Cleanmail Domain Gateway 99.94
N-able SpamExperts 99.91
N-able Mail Assure 99.91
Mimecast 99.90
Zoho Mail 99.52
Spamhaus Data Query Service (DQS) + SpamAssassin 97.79
Rspamd 92.93

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.



Hosted solutions Anti-malware IPv6 DKIM SPF DMARC Multiple MX-records Multiple locations
Cleanmail Domain Gateway Cleanmail
Mimecast Mimecast
N-able Mail Assure N-able Mail Assure
N-able SpamExperts SpamExperts
SEPPmail.cloud Filter SEPPmail √  √  √   √ √  √
Zoho Mail Zoho

(Please refer to the text for full product names and details.)



Local solutions Anti-malware IPv6 DKIM SPF DMARC Interface
CLI GUI Web GUI API
Bitdefender Bitdefender
FortiMail Fortinet
Rspamd None
Spamhaus Data Query Service (DQS) + SpamAssassin Optional

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.

(Please refer to the text for full product names and details.)






Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver20.

The test ran for 16 days, from 12am on 5 November to 12am on 21 November 2022 (GMT).

The test corpus consisted of 274,599 emails. 271,927 of these were spam, 19,409 of which were provided by Project Honey Pot, 250,141 were provided by Abusix, with the remaining 2,377 spam emails provided by MXMailData. There were 2,578 legitimate emails (‘ham’) and 94 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

112 emails in the spam corpus were considered ‘unwanted’ (see the June 2018 report) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 3,860 emails from the spam corpus were found to contain a malicious attachment while 4,881 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command4.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.



Footnotes

1 Spamhaus Data Query Service (DQS) + SpamAssassin is a custom solution built on top of the SpamAssassin open-source anti-spam platform.

2 https://bazaar.abuse.ch/sample/720b7352f254c6ad7bd16506d5a1d51ce7813da9d0bfe5b9657e5b959ad14ec5/.

3 https://www.proofpoint.com/us/blog/threat-insight/comprehensive-look-emotets-fall-2022-return.

4 http://www.postfix.org/XCLIENT_README.html.

Download PDF




Latest reviews:

VBSpam comparative review

The Q1 2024 VBSpam test measured the performance of nine full email security solutions, one custom configured solution and one open‑source solution.

VBSpam comparative review

The Q4 2023 VBSpam test measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q3 2023 VBSpam test we measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q2 2023 VBSpam test we measured the performance of nine full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q1 2023 VBSpam test we measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
