VBSpam Email Security Comparative Review - March 2023

Ionuţ Răileanu & Adrian Luca

Virus Bulletin

Copyright © 2023 Virus Bulletin


Introduction

In the Q1 2023 VBSpam test – which forms part of Virus Bulletin’s continuously running security product test suite – we measured the performance of a number of email security solutions against various streams of wanted, unwanted and malicious emails. One third of the solutions we tested opted to be included in the public test, the rest opting for private testing (all details and results remaining unpublished). The solutions tested publicly were: eight full email security solutions, one custom configured solution1, one open-source solution and one blocklist.

For the majority of the solutions we tested, more than 99% of spam emails didn’t pose any challenge. The difference came in the ability of the filters to be fine-tuned in order to avoid false positives.

While threat actors continue to take advantage of legitimate public services such as social media URL shortenings and unusual malicious OneNote attachments, we saw quick response times from the security solutions in blocking these threats.

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test. (Note: these statistics are relevant only to the spam samples we received during the test period.)

# Sender's IP country Percentage of spam
1 China 12.00%
2 Brazil 8.72%
3 United States 7.13%
4 Japan 5.43%
5 Russian Federation 3.84%
6 Argentina 3.33%
7 India 2.85%
8 Republic of Korea 2.69%
9 Peru 2.25%
10 Morocco 2.04%

 Top 10 countries from which spam was sent.

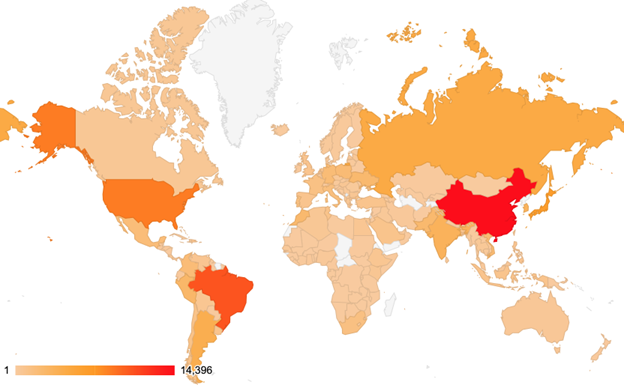

Geographical distribution of spam based on sender IP address.



Highlights

OneNote malware campaign

In this quarter, and during the time the test ran, we observed an active malicious campaign of emails with .one files attached. Whilst both the number and variation of these samples were unusual, the way the user was tricked into accessing the malicious payload was always the same: an image overlaying links to different kinds of executables, shortcut (LNK) files, or script files such as HTML application (HTA) or Windows script files (WSF).

For the solutions participating in the test this was the most challenging malware campaign encountered during the whole of the test period. However, the challenge came only at the beginning of the campaign, after which the products became more adept at blocking it.

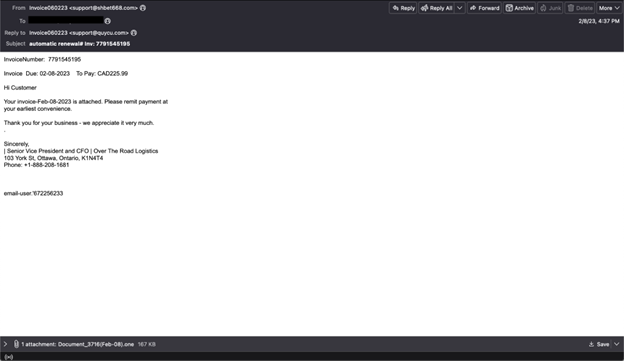

OneNote-malspam.pngMalspam email with a malicious .one file attached.

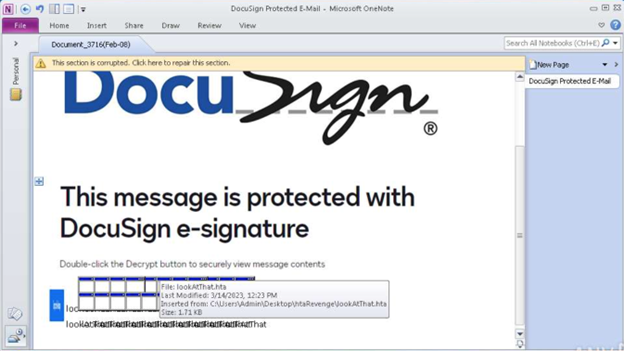

OneNote-file.pngOneNote file with the .hta files hidden under an overlaid image resembling a button.



Social media URL shortening phishing

We have seen this kind of phishing campaign before, but the use of social media shortening URLs continues to make it challenging for the filters to block an email before it reaches the user’s inbox.

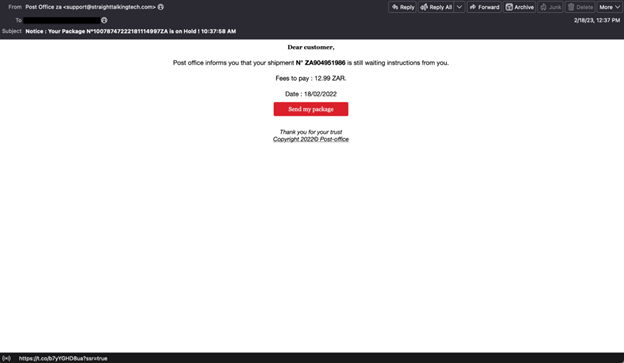

soc-media-url-shortening.pngPhishing email using social media shortening URL.



We saw a few samples of this kind, each coming from a different IP address. We were unable to find a link between this campaign and any particular threat actor. However, it is highlighted here because it was the most commonly missed phish in this test.

  • Subjects:
    Notice : Your Package
    N   symbol.jpg 10078747222181114997ZA is on Hold ! 10:37:58 AM

    Notice : Your Package
    N   symbol.jpg 53784568613487413211ZA is on Hold ! 02:17:49 AM
  • From:
    Post Office za <support@straighttalkingtech[.]com>
    Customer Support <techsupport@ask4key[.]com>
  • Email URLs:
    hxxps://t[.]co/b7yYGHD8ua?ssr=true
    hxxps://t[.]co/kVolpyNxzB?ssr=true
  • Landing URLs:
    https://postofficce[.]page[.]link/XktS
    https://postofficesouthafrican[.]page[.]link/rniX



Results

The majority of the tested solutions managed to achieve spam catch rates of over 99%. A better comparison between the products can be made by analysing their malware and phishing catch rates, both of which are subsets of the spam corpus. Here we highlight the performance of Fortinet, Mimecast, N-able Mail Assure, N-able SpamExperts and SEPPmail, all of which achieved a 100% malware catch rate, and Fortinet blocked 100% of phishing samples as well.

Of the participating full solutions, two – SEPPmail.cloud Filter and Zoho Mail – achieved a VBSpam award, while six – Bitdefender GravityZone Premium, Cleanmail Domain Gateway, FortiMail, Mimecast, N-able Mail Assure and N-Able SpamExperts – plus the custom configured solution Spamhaus DQS + SpamAssassin were awarded VBSpam+ certification.



Bitdefender GravityZone Premium

SC rate: 99.97%
FP rate:
0.00%
Final score:
99.97
Malware catch rate:
99.88%
Phishing catch rate:
99.98%
Project Honey Pot SC rate:
100.00%
Abusix SC rate:
99.97%
MXMailData SC rate:
99.88%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



It was another great performance from Bitdefender, this time with the version of the solution for Exchange servers. The lack of false positives and a final score of 99.97 easily secures the product a VBSpam+ certification.



Cleanmail Domain Gateway

SC rate: 99.81%
FP rate:
0.00%
Final score:
99.81
Malware catch rate:
98.39%
Phishing catch rate:
98.83%
Project Honey Pot SC rate:
99.91%
Abusix SC rate:
99.86%
MXMailData SC rate:
96.34%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Cleanmail kicks off the 2023 VBSpam testing series with a VBSpam+ award. A solid 99.81% spam catch rate and no false positives of any kind confirms that the Swiss-based solution can be considered a reliable one.



Fortinet FortiMail

SC rate: 99.98%
FP rate:
0.00%
Final score:
99.98
Malware catch rate:
100.00%
Phishing catch rate:
100.00%
Project Honey Pot SC rate:
99.90%
Abusix SC rate:
99.99%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



It was another impressive performance from Fortinet. With no malware or phishing samples missed, no false positives, and a 99.98% spam catch rate, a VBSpam+ award was earned with ease.



Mimecast

SC rate: 99.88%
FP rate:
0.00%
Final score:
99.85
Malware catch rate:
100.00%
Phishing catch rate:
99.93%
Project Honey Pot SC rate:
99.64%
Abusix SC rate:
99.91%
MXMailData SC rate:
100.00%
Newsletters FP rate:
1.2%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Not a single malware email passed Mimecast’s filters in this test. Combined with a 99.88% spam catch rate and no false positives, the product earns a VBSpam+ award.



N-able Mail Assure

SC rate: 99.90%
FP rate:
0.00%
Final score:
99.90
Malware catch rate:
100.00%
Phishing catch rate:
99.74%
Project Honey Pot SC rate:
99.91%
Abusix SC rate:
99.89%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



It was another great performance by N-able Mail Assure in the Q1 2023 test. With a 100% malware catch rate, higher than 99% phishing catch rate and no ham or newsletter samples blocked, N-able Mail Assure is awarded a VBSpam+ certification.



N-able SpamExperts

SC rate: 99.90%
FP rate:
0.00%
Final score:
99.90
Malware catch rate:
100.00%
Phishing catch rate:
99.74%
Project Honey Pot SC rate:
99.91%
Abusix SC rate:
99.89%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



It was the same story for N-able’s second entry in this test, SpamExperts: a 100% malware catch rate, higher than 99% phishing catch rate, no ham or newsletter samples blocked, and another VBSpam+ certification awarded.



Rspamd

SC rate: 96.02%
FP rate:
0.47%
Final score:
93.47
Malware catch rate:
74.87%
Phishing catch rate:
94.43%
Project Honey Pot SC rate:
91.95%
Abusix SC rate:
96.93%
MXMailData SC rate:
72.46%
Newsletters FP rate:
7.3%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN




Rspamd achieved a higher than 95% spam catch rate while blocking more than 90% of the phishing samples. The open‑source solution was challenged by the malware samples but we saw an improvement in the product’s overall performance since the last test.



SEPPmail.cloud Filter

SC rate: 99.99%
FP rate:
0.11%
Final score:
99.31
Malware catch rate:
100.00%
Phishing catch rate:
99.98%
Project Honey Pot SC rate:
99.96%
Abusix SC rate:
100.00%
MXMailData SC rate:
100.00%
Newsletters FP rate:
4.9%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% speed-colour-blobs-YELLOW.jpg



SEPPmail’s solution achieved the highest spam catch rate in this test, with only seven samples missed. Some false positives brought the final score down a little, but the product earns a  VBSpam award with ease.



Spamhaus Data Query Service + SpamAssassin

SC rate: 99.74%
FP rate:
0.00%
Final score:
99.74
Malware catch rate:
98.43%
Phishing catch rate:
99.70%
Project Honey Pot SC rate:
99.95%
Abusix SC rate:
99.74%
MXMailData SC rate:
98.23%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Spamhaus SpamAssassin Data Query Service (DQS) is a custom configured solution that integrates the Spamhaus DQS DNSBL service and the free open-source solution SpamAssassin. In this test no ham or newsletter sample was blocked by the combined solution. With a final score of 99.74 the product easily earns a VBSpam+ certification.



Zoho Mail

SC rate: 99.54%
FP rate:
0.00%
Final score:
99.40
Malware catch rate:
99.76%
Phishing catch rate:
98.69%
Project Honey Pot SC rate:
99.00%
Abusix SC rate:
99.61%
MXMailData SC rate:
99.59%
Newsletters FP rate:
4.9%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Zoho Mail scored well on the overall spam catch rate. We saw a strong performance on the malware corpus, with 99.76% of samples blocked, and a lack of ham false positives. The product earns a VBSpam award.



Abusix Mail Intelligence

SC rate: 98.45%
FP rate: 0.00%
Final score: 98.42
Malware catch rate: 76.96%
Phishing catch rate: 98.23%
Project Honey Pot SC rate: 91.76%
Abusix SC rate: 99.80%
MXMailData SC rate: 68.57%
Newsletters FP rate: 1.2%

Abusix Mail Intelligence is a set of blocklists that is tested as a partial solution because it has access only to parts of the emails (IP addresses, domains, URLs), which are queried to their DNS zones. With this setup, the solution’s 98.45% spam catch rate and lack of ham false positives is commendable.



Results tables

  True negatives False positives FP rate False negatives True positives SC rate Final score VBSpam
Bitdefender GravityZone Premium 2768 0 0.00% 37 119926.2 99.97% 99.97 vbantispam-plus.gif
Cleanmail Domain Gateway 2768 0 0.00% 225 119738.2 99.81% 99.81 vbantispam-plus.gif
Fortinet FortiMail 2768 0 0.00% 25 119938.2 99.98% 99.98 vbantispam-plus.gif
Mimecast 2768 0 0.00% 141.2 119822 99.88% 99.85 vbantispam-plus.gif
N-able Mail Assure 2768 0 0.00% 124.2 119839 99.90% 99.90 vbantispam-plus.gif
N-able SpamExperts 2768 0 0.00% 124.2 119839 99.90% 99.90 vbantispam-plus.gif
Rspamd 2755 13 0.47% 4773.2 115190 96.02% 93.47
SEPPmail.cloud Filter 2765 3 0.11% 7 119956.2 99.99% 99.31 vbantispam-pass.gif
Spamhaus DQS + SpamAssassin‡ 2768 0 0.00% 307.4 119655.8 99.74% 99.74 vbantispam-plus.gif
Zoho Mail 2768 0 0.00% 552 119411.2 99.54% 99.40 vbantispam-pass.gif
Abusix Mail Intelligence* 2768 0 0.00% 1853.8 118109.4 98.45% 98.42 N/A

‡Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)



  Newsletters Malware   Phishing Project Honey Pot Abusix MXMailData STDev
False positives FP rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate
Bitdefender GravityZone Premium 0 0.0% 3 99.88% 1 99.98% 0 0.00% 35 99.97% 2 99.88% 0.21
Cleanmail Domain Gateway 0 0.0% 40 98.39% 50 98.83% 12 99.91% 151 99.86% 62 96.34% 1.59
Fortinet FortiMail 0 0.0% 0 100.00% 0 100.00% 14 99.90% 11 99.99% 0 100.00% 0.21
Mimecast 1 1.2% 0 100.00% 3 99.93% 49.2 99.64% 92 99.91% 0 100.00% 0.78
N-able Mail Assure 0 0.0% 0 100.00% 11 99.74% 12 99.91% 112.2 99.89% 0 100.00% 0.66
N-able SpamExperts 0 0.0% 0 100.00% 11 99.74% 12 99.91% 112.2 99.89% 0 100.00% 0.66
Rspamd 6 7.3% 624 74.87% 239 94.43% 1090.8 91.95% 3215.4 96.93% 467 72.46% 5.83
SEPPmail.cloud Filter 4 4.9% 0 100.00% 1 99.98% 5 99.96% 2 99.998% 0 100.00% 0.14
Spamhaus DQS + SpamAssassin 0 0.0% 39 98.43% 13 99.70% 7.2 99.95% 270.2 99.74% 30 98.23% 0.77
Zoho Mail 4 4.9% 6 99.76% 56 98.69% 135.4 99.00% 409.6 99.61% 7 99.59% 1.33
Abusix Mail Intelligence* 1 1.2% 572 76.96% 76 98.23% 1115.8 91.76% 205 99.80% 533 68.57% 3.66

The standard deviation of a product is calculated using the set of its hourly spam catch rates.
Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products. None of the queries to the IP blocklist included any information on the attachments; hence its performance on the malware corpus is added purely for information.
(Please refer to the text for full product names and details.)





   Speed
10% 50% 95% 98%
Bitdefender GravityZone Premium speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Cleanmail Domain Gateway speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Fortinet FortiMail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Mimecast speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Mail Assure speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Spam Experts speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Rspamd speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
SEPPmail.cloud Filter speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-YELLOW.jpg
Spamhaus Data Query Service (DQS) + SpamAssassin speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Zoho Mail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
speed-colour-blobs-GREEN.jpg 0-30 seconds speed-colour-blobs-YELLOW.jpg 30 seconds to two minutes speed-colour-blobs-ORANGE.jpg two minutes to 10 minutes speed-colour-blobs-RED.jpg more than 10 minutes

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
(Please refer to the text for full product names and details.)



Products ranked by final score
Fortinet FortiMail 99.98
Bitdefender GravityZone Premium 99.97
N-able Mail Assure 99.90
N-able Mail SpamExperts 99.90
Mimecast 99.85
Cleanmail Domain Gateway 99.81
Spamhaus DQS + SpamAssassin 99.74
Zoho Mail 99.40
SEPPmail.cloud Filter 99.31
Rspamd 93.47

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.



Hosted solutions Anti-malware IPv6 DKIM SPF DMARC Multiple MX-records Multiple locations
Cleanmail Domain Gateway Cleanmail
Mimecast Mimecast
N-able Mail Assure N-able Mail Assure
N-able SpamExperts SpamExperts
SEPPmail.cloud Filter SEPPmail √  √  √   √ √  √
Zoho Mail Zoho

(Please refer to the text for full product names and details.)



Local solutions Anti-malware IPv6 DKIM SPF DMARC Interface
CLI GUI Web GUI API
Bitdefender GravityZone Premium Bitdefender
FortiMail Fortinet
Rspamd None
Spamhaus Data Query Service (DQS) + SpamAssassin Optional

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.

(Please refer to the text for full product names and details.)






Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver20.

The test ran for 16 days, from 12am on 4 February to 12am on 20 February 2023 (GMT).

The test corpus consisted of 122,862 emails. 120,012 of these were spam, 13,581 of which were provided by Project Honey Pot, 104,735 were provided by Abusix with the remaining 1,696 spam emails provided by MXMailData. There were 2,768 legitimate emails (‘ham’) and 82 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

61 emails in the spam corpus were considered ‘unwanted’ (see the June 2018 report) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 2,483 emails from the spam corpus were found to contain a malicious attachment while 4,290 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command2.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.



Footnotes

1 Spamhaus Data Query Service (DQS) + SpamAssassin is a custom solution built on top of the SpamAssassin open-source anti-spam platform.

2 http://www.postfix.org/XCLIENT_README.html.

Download PDF




Latest reviews:

VBSpam comparative review

The Q4 2023 VBSpam test measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q3 2023 VBSpam test we measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q2 2023 VBSpam test we measured the performance of nine full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q1 2023 VBSpam test we measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

VBSpam comparative review

In the Q4 2022 VBSpam test we measured the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist.

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
