Sinowal banking trojan

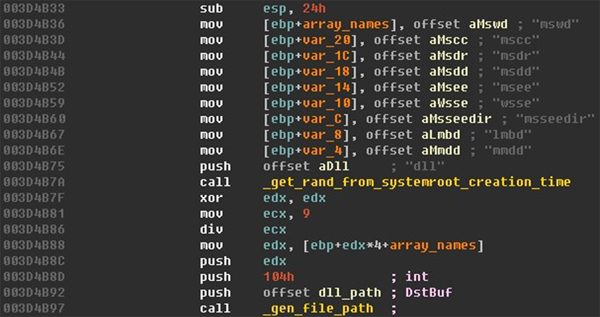

After being dropped and decoded by the installer, the loader module is loaded with the fdwReason parameter of the EntryPoint function set to 0xFEFEFEEE, indicating that this is the first time it has run. The DllRegisterServer function will be called later to perform the following tasks:

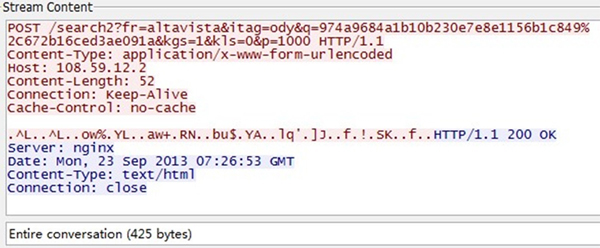

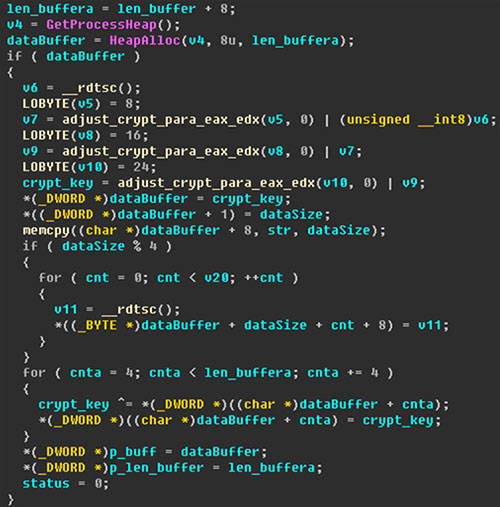

Running in the regsvr32.exe process, the loader module will check the fdwReason parameter of the EntryPoint function. This time, the value of fdwReason is DLL_PROCESS_ATTACH. In this case, the hash of the name of the current process will be calculated and compared against a set of hashes that represent some particular processes. The result of the comparison will determine what happens in the next step.

A Python version of the hash generation algorithm is shown in Figure 4.

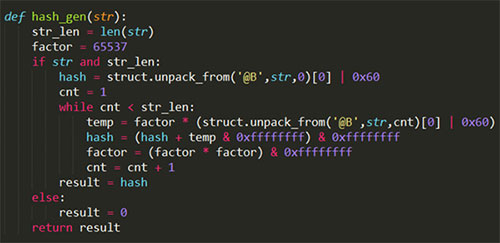

Figure 4. Hash generation algorithm.

Some useful hash values and their corresponding filenames are listed below:

The main work in the regsvr32.exe process can be divided into three parts:

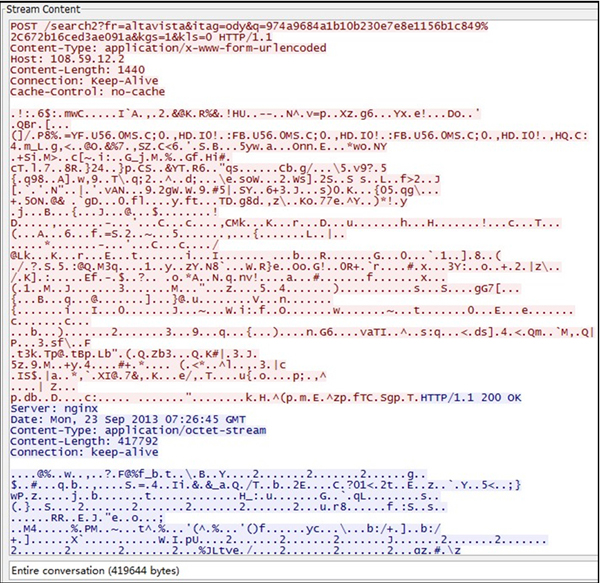

Once the loader module is loaded in the explorer.exe process, it will realise that Explorer has become its host process by using the hash comparison described earlier. Then it will retrieve the encrypted manager module from the hard disk and decrypt it with a key generated on the basis of the SystemRoot creation time. Next, the EntryPoint and Initialize functions of the manager module will be invoked in sequence so that the manager module can work in the Explorer process. We will discuss the manager module in detail later.

If the loader module is loaded in a process of iexplore.exe, firefox.exe or chrome.exe, it will record some information in the registry key ‘HKCU\Software\Microsoft\Notepad’ or, if that fails, ‘HKCU\Software\AppDataLow’. The value ‘LastMsg’ is set to the number of browser processes that have been injected by the loader module. The value ‘msg{Number}’ records the identity of the browser program being injected. Some examples are as follows:

If the loader module is loaded in the Explorer process or any other user-mode process, such as a web browser process, it will search for a special file from the folder containing the loader module. The file in question is XTEA-encrypted and its first double-word after decryption should be 0xBEEFBEEF. We call it the ‘beef file’. The double-word 0xBEEFBEEF is written into the beef file by the loader module. Other data in the beef file will be written by the manager module, which will be discussed later. The structure of the beef file is as follows:

Beef File:
+0      0xBEEFBEEF
+4      NumOfEntries (should <= 0x20)
+8      BeefEntry[NumOfEntries]

Struct BeefEntry:
+0      EntryName
+14h    SizeHashes
+18h    SizeModule
+1Ch    Hashes[SizeHashes]
+1Ch+ SizeHashes  Module[SizeModule]

EntryName: entry name consisting of four characters, including ‘mini’, ‘mi64’, ‘gbcl’, ‘gc64’, ‘iecl’, ‘ffcl’, ‘crcl’ and ‘snif’.

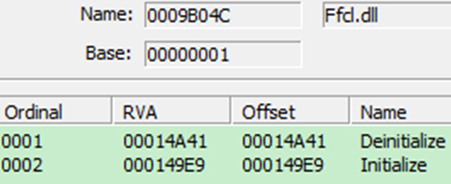

Hashes: an array of hashes. The loader module will compare the hash of the name of its host process with each hash in this array. If a match is found, the corresponding module stored in this BeefEntry will be loaded into the host process. Module: a module exporting two functions – Initialize and Deinitialize.

When the manager module or a plug-in module from the beef file is loaded into a process by a copy of the loader module injected into the same process (the manager module will only be loaded in the Explorer process), the EntryPoint function and its initialization will be invoked by the loader module (see Figure 6).

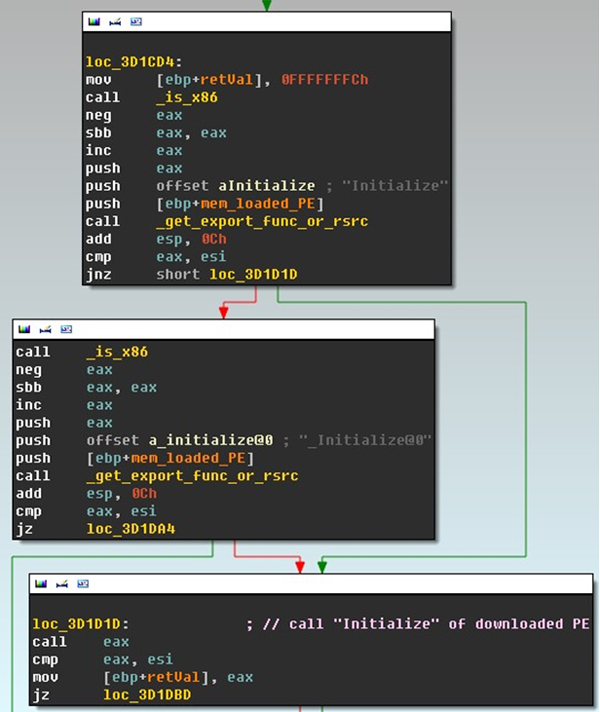

Figure 6. Invoke Initialize function.

When the manager module or plug-in module finishes its work, its Deinitialize function will be invoked by the loader module. After that, the loader module will unload itself by calling the FreeLibrary API and then reload itself by calling the LoadLibraryA API with the path of the loader binary on disk as the parameter. Using this method, the loader module, manager module and plug-in modules are periodically reloaded into a host process, which ensures that any newly downloaded or updated modules will be given a chance to run.

As an advanced banking trojan, Sinowal is equipped with a weapon to defeat Trusteer Rapport [4], a security tool used to prevent phishing and man-in-the-browser attacks. Trusteer Rapport runs in all browser processes, monitoring suspicious activities by hooking Windows APIs.

If Trusteer Rapport is found to be installed on the compromised machine, the following actions will be taken by the loader module running in a browser process:

Unlike the hard-coded C&C server URL used for downloading the manager module, the C&C server domains for downloading configuration data and plug-in modules are obtained through a DGA (Domain Generation Algorithm) which is based on the current date and time taken from Google. Some generated domains are shown in Figure 7.

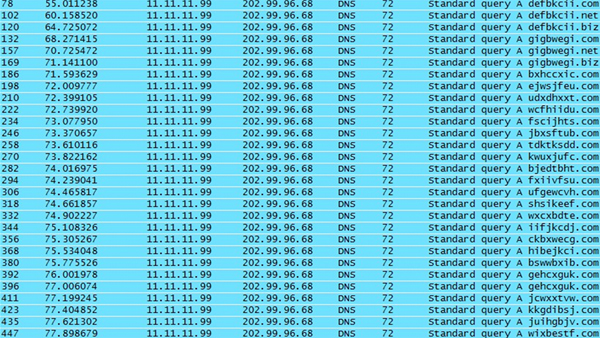

Figure 7. C&C server domains.

To register the compromised machine with the C&C server, encrypted local information, including the IP address table, is uploaded. A custom encryption algorithm is employed in the communication between the manager module and the C&C server. The first double-word of the transferred data is the crypt key, and a signature double-word ,‘BIP’ 0x02, is at offset 0x10 to the beginning of the decrypted data, as shown in Figure 8.

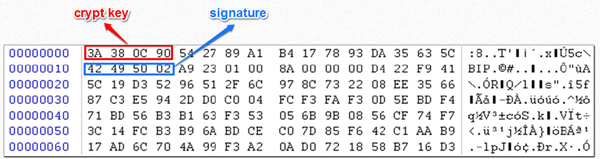

Figure 8. Crypt key and signature double-word.

Plug-in modules and configuration data are downloaded using the same encryption scheme as described above. The configuration contains thousands of URLs belonging to online banks and e-commerce services around the world. A small piece of decrypted configuration is shown in Figure 9.

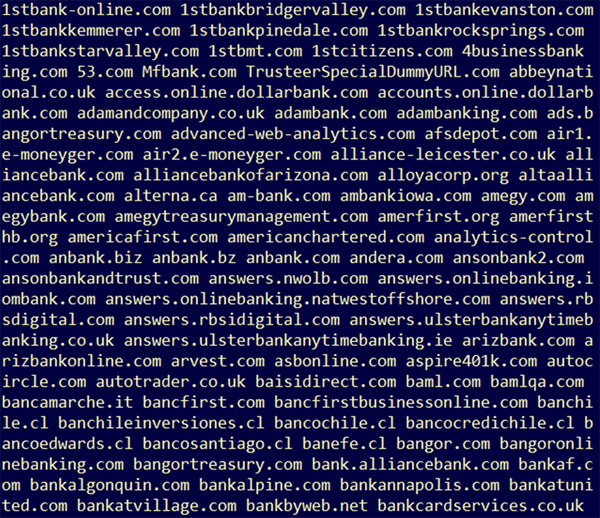

Figure 9. URLs in configuration.

The URLs in the configuration data reveal that the financial institutions targeted by Sinowal are distributed in the following countries:

The plug-in modules are downloaded and stored in the beef file.

The manager module creates a named pipe through which it exchanges data and scripts with the plug-in modules. The pipe’s name is generated by the routine shown in Figure 10.

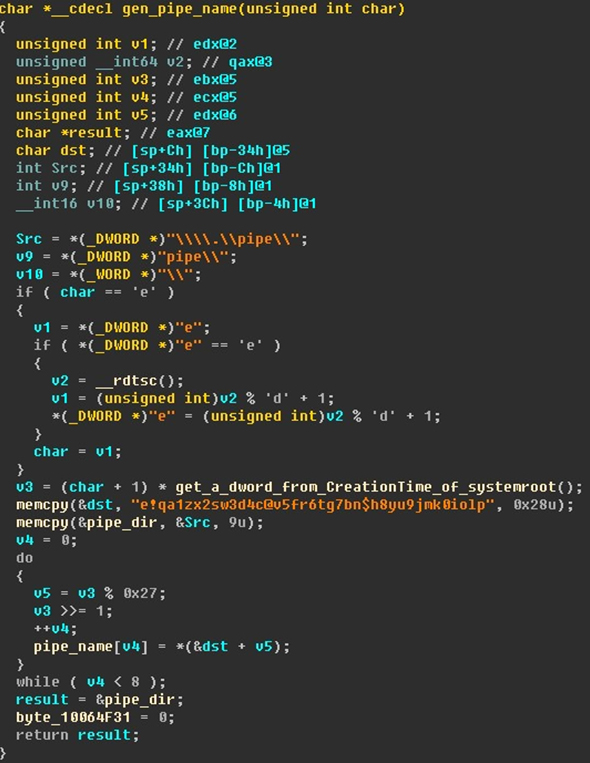

Figure 10. Generation of pipe name.

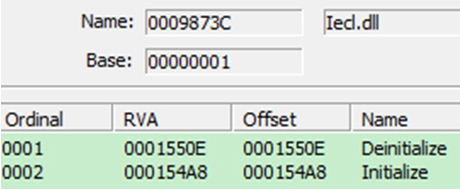

Because Sinowal targets victims who speak various different languages around the world, it is important to ensure that mlang.dll, which provides multi-language support, exists on the victim’s computer. If mlang.dll does not exist on the machine, the Iecl module will not work.

To enable browser active scripting, which is required by the Iecl module, the registry value ‘HKCU\Software\Microsoft\Windows\CurrentVersion\Internet Settings\Zones\3\1400’ is set to zero. This means that Internet Explorer will no longer prompt the user before running dynamic scripts.

Figure 12 shows an overview of the complete procedure of stealing bank accounts and running the malicious script. In the following sections, we will discuss how it works, step by step.

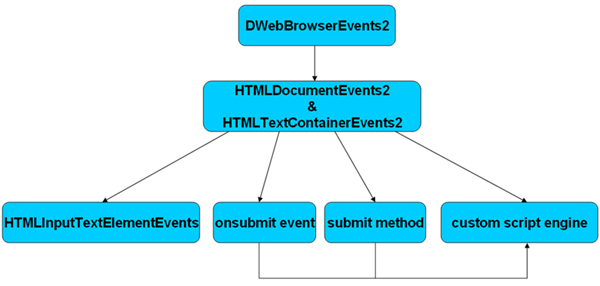

Figure 12. Procedure of hijacking IE.

The Iecl module will enumerate all running instances of Internet Explorer (IE). For each IE browser object, a property named ‘__BRCL__’ is created and set as a string generated as a result of calling the GetTickCount API. This property is used to identify a specific IE browser object.

For each IE object, an IDispatch interface object is constructed and connected to the IConnectionPoint interface of a connection point for the DIID_DWebBrowserEvents2 of the browser object. In this way, the IDispatch object can respond to browser events using the Invoke method.

If the dispIdMember parameter of the Invoke method is DISPID_BEFORENAVIGATE2 or DISPID_NEWWINDOW3, the Iecl module will check the URL the browser is going to. If the URL is on a blacklist maintained by Sinowal, the visit to this URL will be cancelled by setting DISPPARAMS.Cancel to VARIANT_TRUE.

If the dispIdMember parameter is DISPID_NAVIGATECOMPLETE2, the Iecl module will check the URL the browser has arrived at. If the URL is blacklisted, navigation will be stopped by calling IWebBrowser2::Stop.

If the dispIdMember parameter is DISPID_DOWNLOADBEGIN, the host name of the current URL will be obtained and saved in the IDispatch object constructed for this browser object.

If the dispIdMember parameter is DISPID_BEFORENAVIGATE2, DISPID_DOWNLOADBEGIN, DISPID_NAVIGATECOMPLETE2 or DISPID_DOWNLOADCOMPLETE, the IHTMLDocument2 interfaces of all the frames opened in the browser will be obtained. An IDispatch interface object will be created for each frame. This IDispatch object will be connected to the IConnectionPoint interface for the DIID_HTMLDocumentEvents2 of the frame. If the value of the ‘tagName’ property of this frame is ‘BODY’, the IDispatch object will also be connected to the IConnectionPoint interface for the DIID_HTMLTextContainerEvents2 of the frame. The job of this IDispatch object is to monitor forms on web pages and to execute a given script at specific points in time, which will be discussed later.

If the dispIdMember parameter is DISPID_ONQUIT, the IDispatch object for DIID_DWebBrowserEvents2 will be disconnected from the connection point. If no other IE browser instance is running in the system, a WM_QUIT message will be sent to the Iecl module, which will then cease to work.

The Invoke method of the IDispatch object for DIID_HTMLDocumentEvents2 and DIID_HTMLTextContainerEvents2 will find all form elements on a web page and monitor the content and submission of each form.

If the dispIdMember parameter of the Invoke method refers to keyboard and mouse events, such as DISPID_HTMLDOCUMENTEVENTS2_ONCLICK or DISPID_HTMLDOCUMENTEVENTS2_ONKEYPRESS, the Invoke method will do nothing.

If the dispIdMember parameter is DISPID_HTMLDOCUMENTEVENTS2_ONREADYSTATECHANGE or DISPID_HTMLDOCUMENTEVENTS2_ONPROPERTYCHANGE, and the readyState of the HTML document is ‘complete’, the following actions will be taken on each form in the HTML document:

First, an attribute named ‘cnct’ will be created for the form. This attribute is used as a flag telling the Iecl module that the form is already under control.

Secondly, a newly created IDispatch object will be connected to the connection point for the DIID_HTMLInputTextElementEvents of each input text element of the form if the type of the element is ‘password’ and the method of the form is ‘post’. In the Invoke method of the IDispatch object, an attribute named ‘pwd’ is created for the password input text element, and the value of this attribute is set to the content of the element – which is very likely the password entered by the compromised user. The ‘pwd’ attribute is used to highlight the password when the form content is grabbed and sent to the C&C server.

Next, two IDispatch objects are created. One is attached to the onsubmit event of the form by calling IHTMLElement2::attachEvent; the other is assigned to the member ‘submit’ by calling IDispatchEx::InvokeEx with the parameter wFlags set to DISPATCH_PROPERTYPUT. These two IDispatch objects are used to collect the following sensitive information:

Finally, the grabbed form data will be sent through a pipe to the manager module, which in turn will send the information to the C&C server.

When the state of an HTML document changes to ‘rendering’, ‘download_complete’ or ‘submit’, the Iecl module reports the current URL and HTML document state to the C&C server and receives a custom script to execute. The manager module acts as a middle-man in this procedure.

In order to run the custom script provided by the C&C server, the Iecl module creates a member of IHTMLDocument::Script and names the member with a randomly generated string. Then an IDispatch interface object is created and wrapped in a VARIANTARG with type VT_DISPATCH. This VARIANTARG will be assigned to the randomly named member of IHTMLDocument::Script so that this member will act as a script interpreter, recognizing and executing the custom script provided by the C&C server.

The IDispatch object for the randomly named member contains names of a set of commands used in the custom script, each command having a number as its ID, which will be retrieved by the GetIDsOfNames and GetDispID methods.

In the Invoke method of this IDispatch object, commands of the custom script will be parsed and executed. The commands and their descriptions are as follows:

jsre (dispId 0x01): JavaScript regular expression parser.

open (dispId 0x02): open given URL with given referrer. The parameter is in the format {Host}/{Path}?rhcpre={Base64 Encoded Referrer}&{Parameter List}. The URL to be opened is {Host}/{Path}?{Parameter List}, and the referrer set in the HTTP header is {Base64 Decoded Refererr}. This command gives the Iecl module the ability to pop up a phishing page at the appropriate time without raising suspicion.

close (dispId 0x03): close a specific Internet Explorer browser object.

eval (dispId 0x04): run the custom script given as the first parameter. The second parameter is the value of the ‘__BRCL__’ property identifying the browser object.

screen (dispId 0x05): take a screenshot in JPEG format and send it to the C&C server.

encrypt (dispId 0x06): custom encryption routine using XOR.

image (dispId 0x07): get and base64-encode the stored data of a given URL in the cache entry file.

request (dispId 0x08): download a string from the C&C server using the IStream interface.

video (dispId 0x09): record an MPEG video of the user screen by using an open-source x264 library embedded in the Iecl module, and send the video to the C&C server.

update (dispId 0x0A): update the time property of the current host.

freeze (dispId 0x0B): lock the in-place activation window in the browser.

unfreeze (dispId 0x0C): unlock the in-place activation window in the browser.

cookie (dispID 0x0D): search cookies for the current URL.

report (dispId 0x0E): report local information to the C&C server.

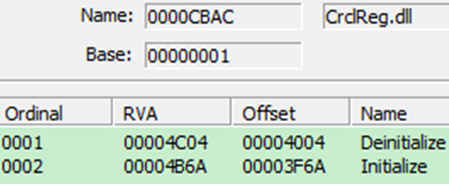

The main job of the CrclReg module is to install a Chrome extension which will conduct banking fraud. The files for the Chrome extension, including a DLL, are embedded in the binary of the CrclReg module, as shown in Figure 14.

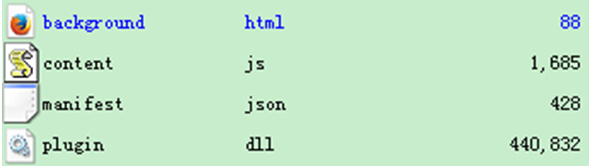

Figure 14. Files for Chrome extension.

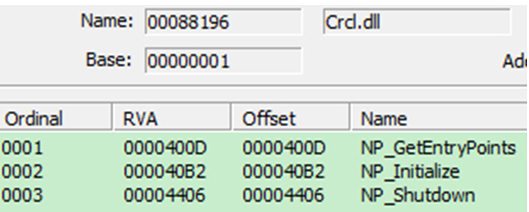

In fact, the original name of the DLL for the extension is ‘Crcl.dll’, as shown in Figure 15.

Figure 15. Crcl.dll for Chrome extension.

These files are dropped into a randomly named folder in the C:\WINDOWS\TEMP directory.

To install the extension, the following shell command is executed by calling the ShellExecuteA API with the parameter operation set to ‘open’:

{Path of chrome.exe} --pack-extension=’{Path of Randomly named Folder}’ --no-message-box

A .crx file is generated as a result of the command.

The ScriptItemize, ShowWindow and DrawTextW APIs are hooked to make the installation process silent and invisible. In addition, the extension is enabled in incognito mode. We can see the installed extension named ‘Default Plug-in’ in Chrome’s extension panel, as shown in Figure 16.

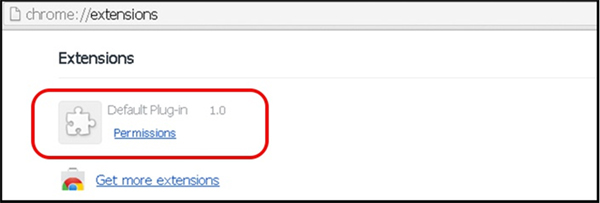

Figure 16. Malicious Chrome extension.

In the exported NP_GetEntryPoints function of Crcl.dll, a set of NPAPI functions are provided for the browser to invoke at the appropriate time. The most important NPAPI functions are NPP_New and NPP_GetValue. NPP_New is called by the browser to create a new instance of the extension. In this function, several listeners are set up to monitor web activities. The script setting the listeners is hard-coded in Crcl.dll, as shown in Figure 17.

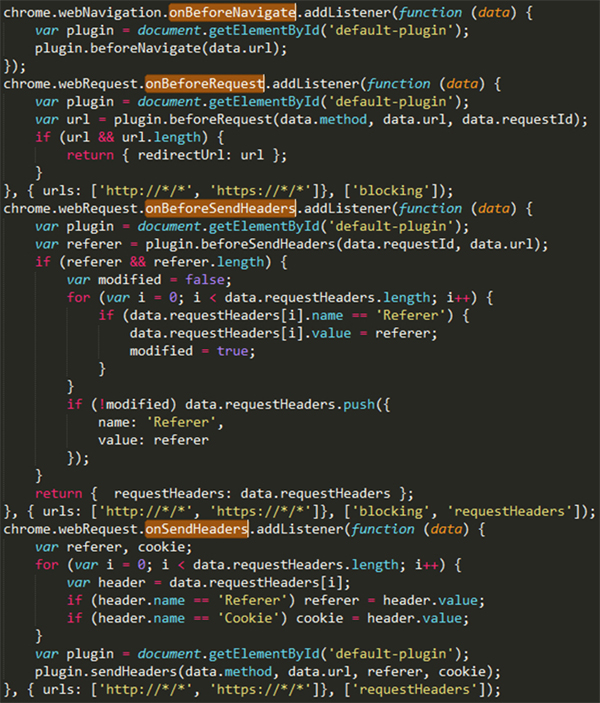

Figure 17. Script for monitoring web activities.

The script equips the extension with the capacity to redirect network traffic, forge the HTTP referrer, intercept session cookies, and monitor browser navigation.

The NPP_GetValue function creates a ScriptableNPObject to receive and execute the script from the browser. The content.js file packed in the .crx file of the extension contains a script for stealing form content. The de-obfuscated version of content.js is shown in Figure 18.

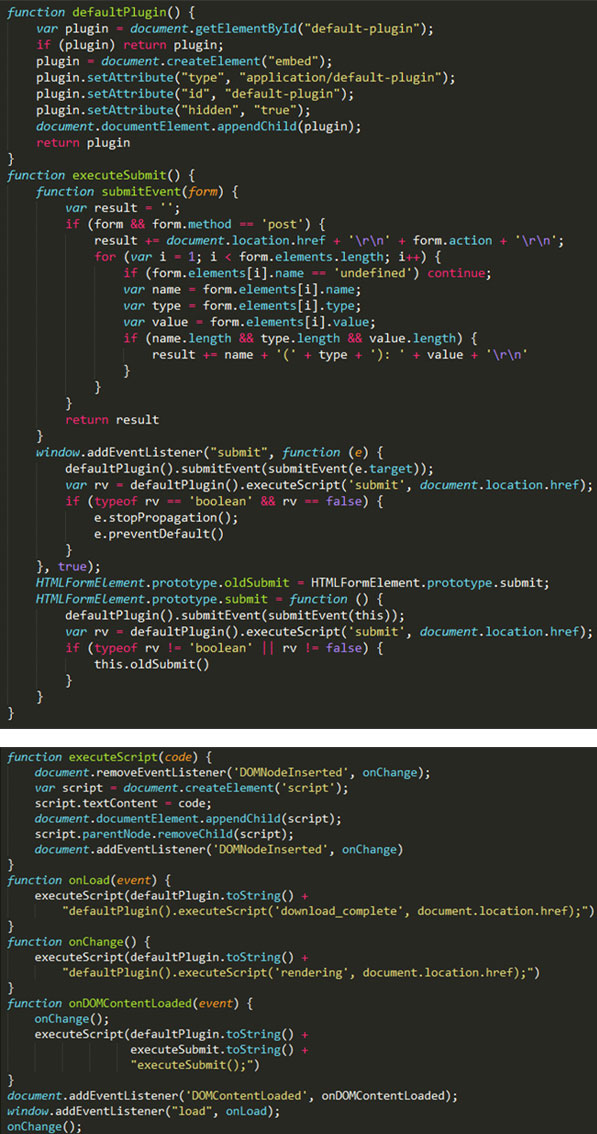

Figure 18. De-obfuscated content.js.

The submitEvent function defined in the script will grab the form content when a form is submitted. The collected information will be given as a parameter to a method also named ‘submitEvent’ of the ScriptableNPObject representing the extension. This submitEvent method implemented in Crcl.dll will transfer stolen form data through a pipe to the manager module, which then communicates directly with the C&C server.

From inside the Invoke method of ScriptableNPObject for the extension, we can see a list of script commands and the routines for executing them.

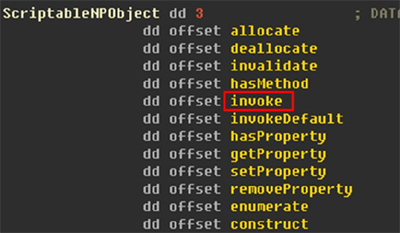

Figure 19. The Invoke method of ScriptableNPObject.

The commands are as follows:

beforeNavigate: monitor the URL the browser is going to

executeScript: get script from the C&C server to run when the state of the HTML document changes to ‘rendering’, ‘download_complete’ or ‘submit’

beforeRequest: redirect traffic for certain URLs

beforeSendHeaders: forge referrer in the HTTP request header

sendHeaders: intercept information in the HTTP request header, including request method, destination URL, referrer URL and HTTP session cookie

submitEvent: send stolen form data to the manager module through a pipe

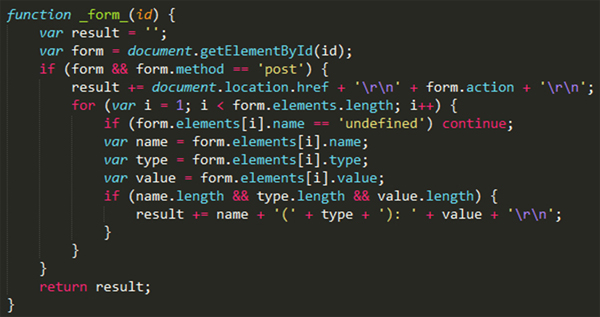

jsre, screen, video, encrypt, request, open, close, eval, image, update, cookie, report: implement the same functionalities as discussed in the section on Internet Explorer banking fraud.

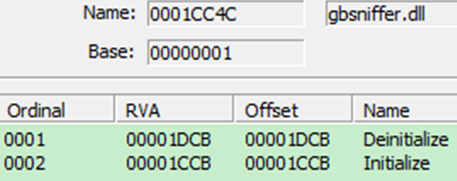

To monitor data transferred on the network and intercept the original data of hash operations, the sniffer module hooks a number of APIs, listed as follows:

Ws2_32.dll: closesocket, WSASend, WSARecv, send, recv

Wininet.dll: InternetConnectA, HttpOpenRequestA, HttpSendRequestA HttpSendRequestW, InternetReadFile, InternetCloseHandle

Advapi32.dll: CryptHashData

Bcrypt.dll: BCryptHashData

nspr4.dll: PR_Read, PR_Write, PR_Close

Ole32.dll: CoGetClassObject

The sniffer module will collect sensitive information from POP3, SMTP and FTP sessions. The following information extracted from a monitored session will be sent through a pipe to the manager module:

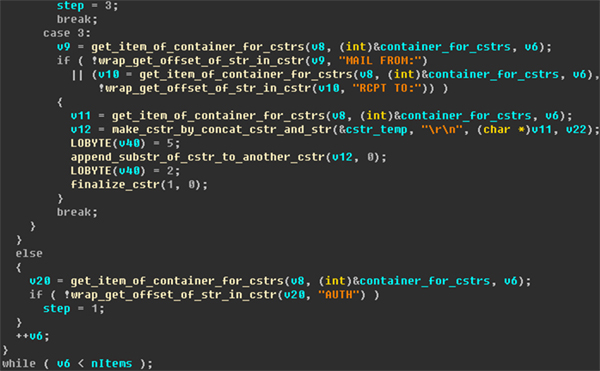

The code for harvesting email addresses is shown in Figure 23.

Figure 23. Harvesting email addresses.
