In this article we present details of a security vulnerability in the Nexus Android botnet command-and-control (C&C) panel that was exploited to compromise the C&C panel in order to gather threat intelligence. In addition, a model of mobile AppInjects is presented to uncover how overlay attacks are performed on compromised Android devices to hijack user accounts and steal credentials.
The threat of Android botnets is sophisticated and increasing at an exponential rate. Android botnets are a formidable threat to the security and privacy of millions of users worldwide. The unique characteristics of mobile devices, such as their always-on connectivity, the extensive personal data they contain, and their high processing power, make Android botnets a potent weapon for cybercriminals. The ability to infect a significant number of devices stealthily amplifies the impact of cybercriminals’ malicious activities and poses significant challenges to cybersecurity professionals and organizations.
As the most widely used mobile operating system, Android has become a prime target for cybercriminals who seek to assemble networks of compromised devices, known as botnets, to carry out large-scale cyber attacks. These malicious networks can be harnessed for various purposes, including distributed denial-of-service (DDoS) attacks, data theft, spam campaigns, cryptocurrency mining, and even espionage.
In this article we discuss the inherent security flaw present in the Nexus Android C&C panel, which has been exploited to gather internal details of the C&C design. After successful compromise, we focus on AppInjects and on how exactly payloads are injected into legitimate applications on compromised Android devices.
Details of the Nexus Android bot binary have been presented earlier . In addition, the Nexus Android botnet has been rented out as malware-as-a-service  in the Russian underground cyber market to enhance the crimeware market .
For penetration testers and security researchers, it is important to find security vulnerabilities in the C&C panels of botnets in order to obtain access and gain intelligence to help combat botnet infections. C&C panel compromise allows threat analysts and researchers to:
Successful exploitation of security vulnerabilities in malicious software plays a crucial role in understanding the design of botnets and their inherent capabilities. This further helps security researchers to generate threat intelligence to help combat similar attacks. This is why security researchers prefer to target centralized C&C panels deployed by malware operators to manage and operate compromised systems at a large scale. If the C&C panel is compromised, security researchers can dissect the complete architecture of deployed botnets in the wild. Let’s analyse a security vulnerability in the Nexus Android botnet C&C panel that has successfully been exploited to gain access to the panel.
First let’s look at the Nexus Android botnet C&C panel. Figure 1 shows the landing page of the Android botnet.

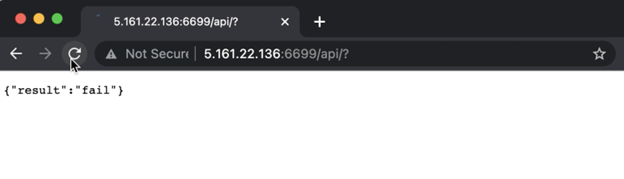

On further enumeration and resource fuzzing, it was discovered that the /api resource was available. When an HTTP GET request was initiated it resulted in “fail”, as the request did not have authentication credentials, and the API endpoint failed to validate. However, during this analysis the URL structure of the API endpoint was confirmed.
Specific versions of the Nexus Android botnet C&C panel are vulnerable to SQL injection vulnerability. The API endpoint used by the C&C panel for communication with the compromised Android devices allows remote attackers to inject payloads to directly access the backend SQL interface and extract credentials on the fly. The vulnerability exists in the “value” HTTP GET parameter. The potential vulnerable URL is presented below:
http://<nexus android c&c host>/api/?param=sms&value=1<injected payload] &botid=f991a83c2a9f25c8de68ad597e98a91b&method=bots.update&access=1

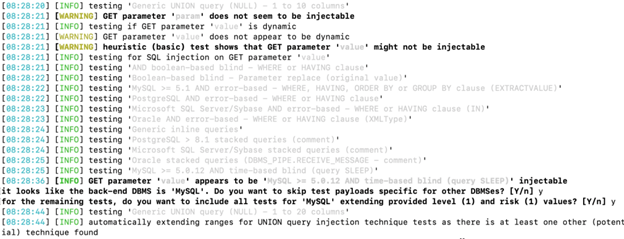

Figure 3 presents the SQL injection tests launched to determine the vulnerable parameter. It highlights that the “value” parameter is successfully injected with the “MySQL >= 5.0.12 AND time-based blind (query SLEEP)” payload.

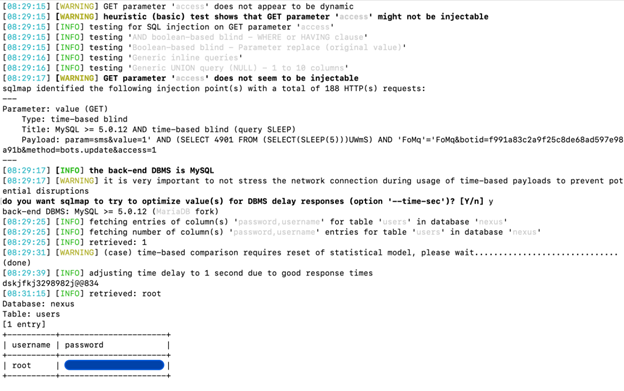

Once the injectable parameter is known, additional payloads are injected. The successful SQL injection executed is time-based , which is a blind SQL injection technique in which the payload is injected and the database pauses for some time to run the query successfully, thereby resulting in extraction of data from the active tables. The attacker creates a logic to enumerate data one character at a time by implementing a time check to extract complete data strings from the table. In Figure 4, you can see that the database name is ‘nexus’ and the table name is ‘users’. The response time is adjusted to obtain the string, which is the password. The blind time-based SQL injection technique is also useful in executing payloads successfully even if the database has load or performance issues.

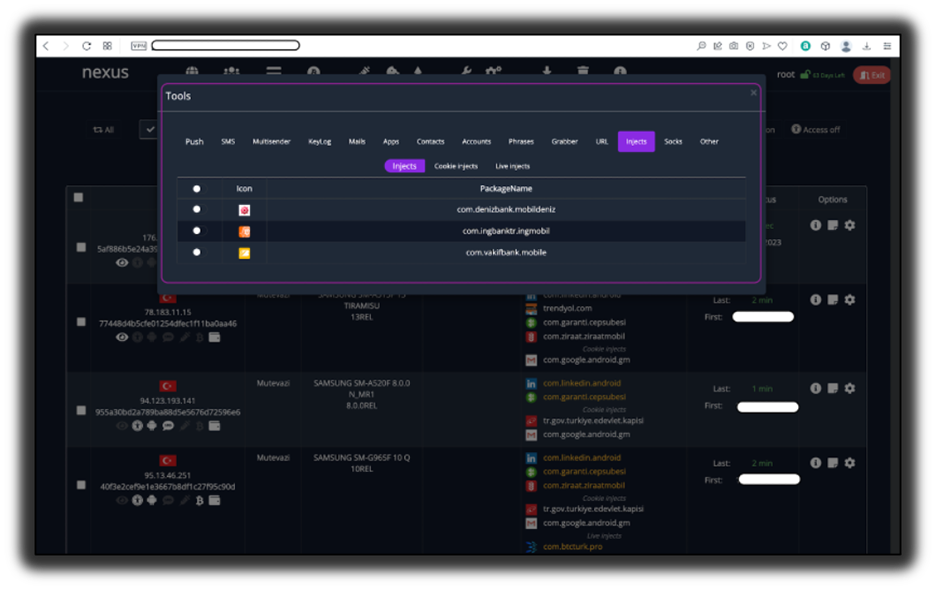

After obtaining the username and password, it was possible to successfully access the C&C panel, as shown in Figure 5.
This research underlines the importance of penetration testing and vulnerability exploitation in generating threat intelligence to combat adversaries in a proactive manner.
Note: We believe that the Nexus Android botnet C&C panel could be vulnerable to more SQL injections specific to different components.
In the next section, we present the attack model of mobile AppInjects.

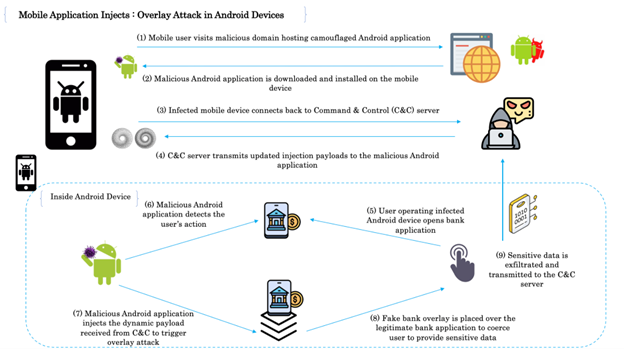

The Nexus Android bot executes overlay attacks on compromised devices. Overlay attacks are carried out on compromised Android devices by abusing the User Interface (UI) and inherent APIs supported by the Android OS. The attacker designs a malicious application or software element that creates a deceptive overlay on top of a legitimate application or user interface. The deceptive overlay tricks users into interacting with it, capturing sensitive information such as login credentials, credit card details, or personal data. Figure 6 outlines the working model of an overlay attack.
Let’s discuss the overlay attack model in detail.

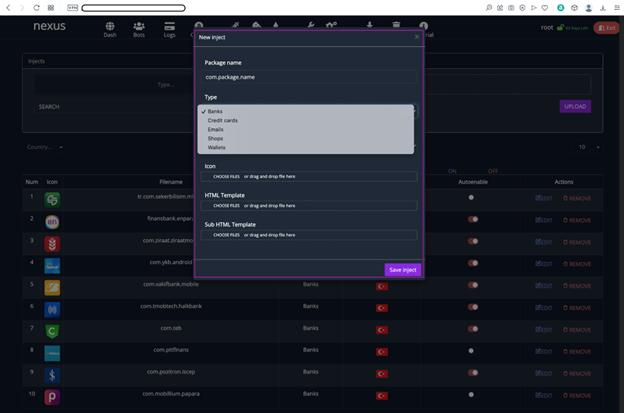

As discussed in the last section, once the Nexus C&C panel was successfully compromised, we were able to analyse the mobile AppInjects. It was discovered that the Nexus C&C panel provides a well-structured AppInject code that can simply be added to the Nexus bot during the build process and the AppInjects were used to trigger overlay attacks. Figure 7 shows the AppInject functionality in the Nexus Android botnet C&C panel.

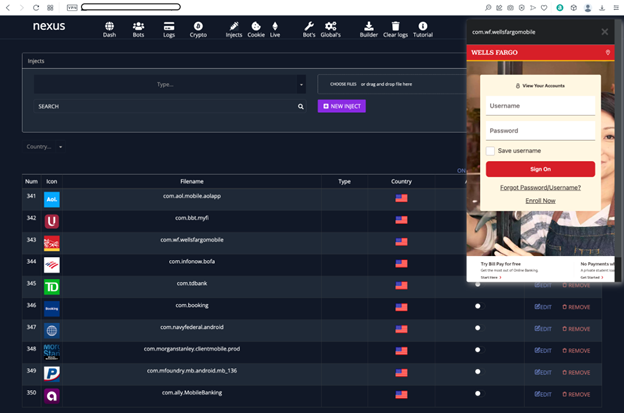

The C&C panel is equipped to automatically insert the AppInject code in the camouflage application during the build generation. The process is completely automated as the attacker can simply specify the options and select the AppInject payload to be added. On further analysis, we discovered that the Nexus Android C&C panel stores AppInjects for a variety of banks. Figure 8 shows the AppInject payload for Wells Fargo bank.

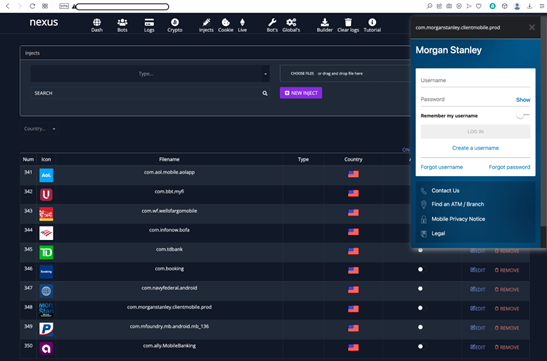

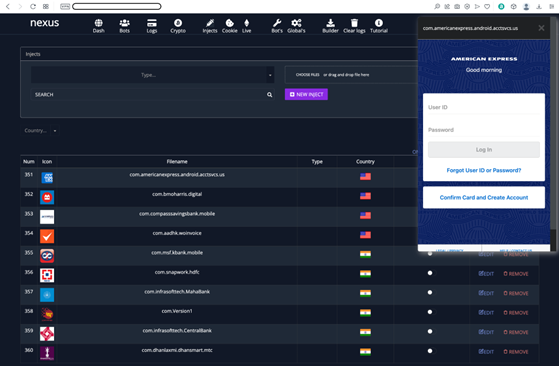

The AppInject code for Morgan Stanley and American Express banking applications are also shown in the Appendix. This reflects that attackers opt for automation to ease the process of generating camouflage applications with AppInject code embedded directly into them.
A number of recommendations and best practices are discussed below to stay proactive against mobile attacks and fraud:
Threat intelligence plays a pivotal role in the fight against Android botnets. In this article, we have shown how penetration testing and vulnerability assessment provide vital tactics in compromising the Nexus Android botnet C&C panel to generate threat intelligence. These botnets present significant challenges to the security of Android devices, as well as posing risks to user privacy and the integrity of mobile ecosystems.
Organizations must invest in advanced threat intelligence tools, hone their incident response capabilities, and continuously educate their workforce to recognize and report potential threats effectively. Embracing an intelligence-driven approach to cybersecurity will be crucial for staying resilient against these threats.
To effectively combat the ever-evolving threat landscape posed by Android botnets, collaboration among various stakeholders is essential. Organizations, security vendors, researchers, and law enforcement agencies must work together to share threat intelligence and coordinate efforts to dismantle botnet infrastructures.
