Obfuscation in Android malware, and how to fight back

2014-07-02

Axelle Apvrille

Fortinet, France

Ruchna Nigam

Fortinet, France
Editor: Martijn Grooten

Abstract

Axelle Apvrille and Ruchna Nigam take an in-depth look at obfuscation techniques encountered while analysing Android malware - including both use of off-the-shelf products and custom obfuscation techniques.


Malware authors are certainly creative when it comes to hiding their payloads from analysts’ eyes, using methods such as emulator detection, application icon hiding, reflection etc. This paper focuses on obfuscation techniques encountered while analysing Android malware. We present five off-the-shelf products (ProGuard, DexGuard, APK Protect, HoseDex2Jar and Bangcle) and make suggestions as to how researchers can detect when they have been used in malware, and some techniques to help with their reversing. We also list some custom obfuscation techniques we have encountered in malware: loading native libraries, hiding exploits in package assets, truncating URLs, using encryption etc. We provide examples and supply the sha256 hash in each case. Finally, we reveal a few new obfuscation techniques of which we are aware, which might be used by malware authors in the future. There are techniques for injecting malicious bytecode, manipulating the DEX file format to hide methods, and customizing the output of encryption to hide an APK. We provide the current state of play as regards ongoing research to detect and mitigate against these mechanisms.

1. Introduction

While obfuscation is not reprehensible, it has always been particularly popular with malware authors. Numerous Windows malware families use packers, obfuscation and anti-debugging techniques to hide their devious intentions from end-users and security researchers alike.

‘The use of ProGuard or a similar program to obfuscate your code is strongly recommended for all applications that use Google Play Licensing.’ [1]

In this paper, our aim is to assist security researchers and anti-virus analysts in their reverse engineering of Android malware. We provide tips to detect specific obfuscators, as well as techniques for reversing them and accessing the real payload.

2. Detecting and reversing off-the-shelf Android obfuscation tools

ProGuard is the most well known of all the Android obfuscators, as it is integrated into the Android build framework itself. It is also often encountered in malware (in a partial database of 460,493 samples, we spotted it in 15% of samples). However, other tools, such as DexGuard – the extended commercial version of ProGuard – and APK Protect also exist.

2.1 ProGuard

By default, ProGuard renames paths, class names, methods and variables using the alphabet. Thus, spotting strings such as ‘a/a/a;->a’ in the smali code is a strong indication that the sample has been obfuscated using ProGuard. Of course, this simplistic method of detection is not infallible because ProGuard can be configured to use any replacement dictionary you wish using the options -obfuscationdictionary, -classobfuscationdictionary and -packageobfuscationdictionary. For instance, Android/GinMaster.L uses a custom dictionary, where the strings were probably generated randomly using something like http://www.random.org/strings.

The replacement of path names, class names, methods and variables cannot be undone. However, usually the reversing of ProGuard-ed samples isn’t too difficult because the strings and code layout are not modified. The work is very similar to reversing an application coded by a beginner (poor choice of variable names etc.).

2.2 DexGuard

Working on DexGuard-ed samples is much more difficult. [2] lists the obfuscator’s features. The main reason why DexGuard-obfuscated samples are more difficult to work with is because the class and method names are replaced with non-ASCII characters and strings are encrypted. Tools such as JD-GUI [3] and Androguard [4] are more difficult to use (e.g. difficult to get name completion). It is as if reverse engineers have had their senses dulled: text strings and even some familiar function calls and patterns no longer exist to guide the analyst to the more interesting parts of the code.

Fortunately, no obfuscator is perfect. [5] clarifies parts of how DexGuard works. Meanwhile, we provide a code snippet that can be used to detect it, and three different ways to help with the reversing of DexGuard-ed samples.

First, its detection – i.e. identifying the use of DexGuard on a sample – is usually fairly visual: the repetitive use of non ASCII characters gives it away. The code snippet below lists non-ASCII smali files in smali disassembled code.

$ find . -type f -name “*.smali” -print | perl -ne ‘print if /[$^$ [:ascii:]]/’

Second, its reversing can be made easier by using the following tools or techniques:

  • DexGuard decryption python script. [6] provides a script template that can be applied to each DexGuard-ed sample. The script decrypts encrypted strings, which makes reversing easier. However, this tool only works with samples that use old versions of DexGuard, not the more recent ones.

  • Logging. A reverse engineer can disassemble the sample with baksmali [7], insert calls to Android logging functions (see below), recompile the application (smali), and run it.

    invoke-static {v1, v2}, Landroid/util/Log;->e( Ljava/lang/String;Ljava/lang/String;)I

    This displays corresponding strings in Android logs. It is an archaic, but simple and useful debugging technique. Nevertheless, this technique requires modification of the malicious sample – a practice anti-virus analysts are usually not authorized (or willing) to perform for ethical and security reasons.

  • String renaming. To work around the problems caused by non-ASCII characters, all strings can auto-matically be renamed to a dummy ASCII string. To do this, we enhanced Hidex [8]. Originally, this tool was created to demonstrate the feasibility of hiding methods in a DEX file (see Section 4 and [9]). However, progressively, it has evolved into a small DEX utility tool that can be used for the following:

    • To list strings (option --show-strings).

    • To automatically rename non-ASCII strings (option --rename-strings). This is what we use, for instance, in the case of DexGuard. Each string that contains non-ASCII characters is replaced automatically by a unique string generated only with ASCII characters and which is the same size as the original string. ( In theory, there are cases where we should fall short of replacement strings and thus fail to do the renaming. For example, if a sample has more strings of a single character than possible ASCII characters, the replacement is impossible. In practice, we have never encountered this limitation.) The replacement string must meet the aforementioned requirements of uniqueness and size, to conform to the DEX file format. For proper replacement, note that string size (UTF16 size field of string data item) is in UTF16 code units, not in bytes. Please refer to [10].

      There is one constraint that Hidex does not currently handle: the ordering of strings. In DEX files, strings must be ordered alphabetically. Renaming the strings usually breaks the correct ordering. Consequently, Android will refuse to load the modified classes.dex file. In the case of reverse engineering malware, this is not a real problem (perhaps it is even more secure/ethically correct) because Android reversing tools such as baksmali, apktool, dex2jar and Androguard do not enforce correct ordering of strings either. Thus, they are able to disassemble the modified classes.dex without any problem.

    • To parse DEX headers and detect headers hiding additional information (see Section 2.4).

    • To detect potential hidden methods (option --detect).

2.3 APK Protect

APK Protect [11] is another advanced off-the-shelf obfuscation product. The first time we spotted it being used in Android malware was in Android/SmsSend.ND!tr in March 2014. It is easy to identify its use in malware, because the string ‘APKProtected’ is present in the DEX. Like DexGuard, its reversing is difficult. In particular, we worked out its string encryption process, which is illustrated in Figure 1.

String encryption process used in APK Protect-ed malware.

Figure 1. String encryption process used in APK Protect-ed malware.

To decrypt an encrypted string, one must:

  1. Swap the first and last two bytes.

  2. Base64 decode the string. Actually, the code of the APK Protect-ed sample hides the call to Base64 decoding methods. It does not call the method directly but via Java reflection. The path for Base64 (android.util.Base64) is decoded from a XOR encrypted string, and the method name (decode) is created by picking up the appropriate characters in the path name.

  3. XOR the decoded string.

  4. Decrypt the result using the hard-coded key ‘#safeguar’.

Knowing this, it is possible to implement one’s own string decryptor. The implementation must be adapted to each sample as XOR keys change.

$ java SmsDecrypt
Processing string: ==aFgIDU0oPWgoK...
d64xor: 96500db3f2242a4b2ac920e4...
Decrypting: ybbc[CENSORED]icp.cc

An alternative to this labour-intensive method (which has to be repeated for every single sample) is to send the sample for analysis by Andrubis [12]. As shown in Figure 2, Andrubis does the work for us, showing the URLs the malware contacts and the decryption key.

Andrubis analysis results showing the decryption key and output.

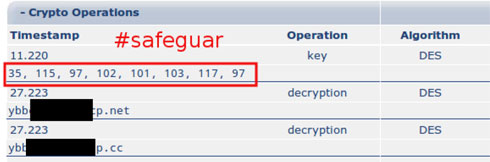

Figure 2. Andrubis analysis results showing the decryption key and output.

2.4 HoseDex2Jar

HoseDex2Jar is a packer that was released a year ago. It is quite simple, and thus easy to circumvent. It is based on the premise that, normally, DEX headers are exactly 0x70 bytes long. However, it was found that Android does not strictly enforce the header size, so one can add data at the end of the header.

This is precisely what HoseDex2Jar does:

  1. Encrypts the DEX.

  2. Creates a new DEX for the packed app.

  3. Puts the encrypted DEX into the new DEX header (e.g. end).

  4. Sets the DEX header size.

This is easy to spot: look for DEX files with header size greater than 0x70 (= 112). This can be done using Hidex, which displays a warning:

$ ~/dev/hideandseek/hidex/hidex.pl --input classes.dex-hosed
WARNING: strange header size: 136080
DEX Header of file:
Magic : 6465780a30333500

To reverse hosed applications, Tim Strazzere released a de-hoser [13]. We have not encountered any hosed malware yet.

2.5 Bangcle

Bangcle [14] is an online service for packing Android executables. The process is the following:

  1. Register on Bangcle to get a user account.

  2. Download the Bangcle Assistant tool.

  3. Use the tool to upload your package. At this point, Bangcle servers do check that the package is not malicious, but they can be fooled.

  4. Retrieve the protected app (for a signed version of the protected app, a keystore must be uploaded by the user).

The packing process modifies the structure of the original APK quite extensively:

  • The name of the application is changed (always) to com.secapk.wrapper.ApplicationWrapper.

  • There are new assets and new native libraries.

  • The manifest is modified.

  • The classes.dex file is completely modified. The original activity no longer exists and is replaced by a generic placeholder.

There are several ways to detect the use of Bangcle: the application’s name ‘com.secapk.wrapper.ApplicationWrapper’, the presence of an asset named ‘bangcle classes.jar’, the presence of native libraries named ‘libsecexe’ and ‘libsecmain’, and class names such as ‘FirstApplication’ or ‘ACall’.

The difficulty lies in reversing samples that are protected with Bangcle. Though this has yet to be confirmed, [15] claims that ‘a growing percentage of malware, such as bank Zeus, SMS Sender, and re-packaged applications, are packed by [the Bangcle] service’. We spotted Bangcle in Android/Feejar.B.

Bangcle is particularly resistant to reverse engineering because:

  • Functions exported by native libraries have obfuscated names.

  • Several libc functions, like mmap2, munmap, open, read, write, close and msync, are hooked. It is likely that ptrace is hooked too, as debuggers have difficulty attaching to certain Bangcle processes.

  • The libraries are compiled with stack protection enabled (stack chk guard).

  • The real application is encrypted, and only decrypted in memory at runtime. In particular, the RC4 algorithm is used [16].

Interesting analyses can be found in [17] and [18] (in Chinese).

The solution we used in order to gain a better understanding of packed malware consists of using IDA Pro’s ARM remote debugger. The remote debugger server is on the Android platform, while it communicates with IDA Pro on a remote host. We attach to the thread of a process that loads libsecmain and dump the memory when it is decrypted (see Figure 3).

Decrypted memory of a protected application.

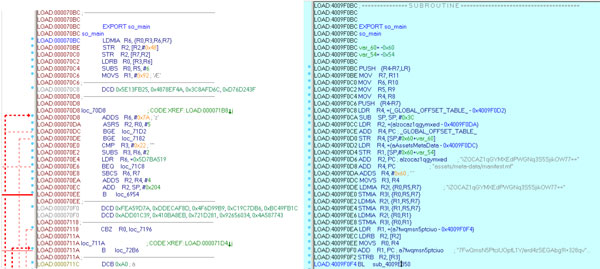

Figure 3. Decrypted memory of a protected application.

(Click here to view a larger version of Figure 3.)

Android malware nameYear of discoveryObfuscation
SmsSend.N 66699d5c55f442203d5b933e87339d3c2f7f256037b45d6ad3ba9e00a65008512012ProGuard-ed
Plankton.B!tr 6600fdf4e758bfab3b73ab26270dd9f4c02847f144e28c255919aee7d91a0f112011ProGuard-ed parts
DroidKungFu.D!tr 938efb5bdc96d353b28af57da2021b6a3c5a64452067059bf50d7fb7c7a664262011ProGuard-ed parts
Dendroid.A!tr 0b8ba0c6cebe5695639bf1b282b52f126dba733f3c204e37615a3ba5f7dd6fe82014DexGuard-ed
Rmspy.A!tr 57e37d4cfc9e0ea9287ba72185c12bb4ccf4e1a56041f3c3d12c31be1aaf55062013DexGuard-ed
0bad.A b65c352d44fa1c73841c929757b3ae808522aa2ee3fd0a3591d4ab67598d172013DexGuard-ed
SmsSend.ND 3aee81db24540fb6b3666a38683259fd32713187ec6e0b421da9b91bd216205f2014APK Protect-ed
Feejar.B 0000350c0792f61ee513f40bd9a42d09144cc6a3c4f2171f812ef415a9a516402014Bangcle

Table 1. Examples of malware using off-the-shelf obfuscation tools.

3. Custom obfuscation

Malware authors have been very active in designing their own obfuscation techniques. Some of the techniques are basic, and others are more complicated:

  • Using very long class names to defeat tools. This technique has been mentioned in [19] and seen in the wild in Android/Mseg.A!tr.spy (sha256 hash: cc42f8a1fc6805a9deeaae198fb4580b304b51489dec4209929a09b9c3868aee).

  • Using nops to modify the bytecode flow. This was mentioned in [20], and is extremely common.

  • Path obfuscation. For example, in an Android/Plankton sample, the normal Airpush SDK path is replaced by com/OajgOKqg/FYmaEVCV92392.

  • Path phishing. This consists of using a well known (legitimate) path and hijacking it for illegitimate purposes. For example, in Android/RuSMS.AO, com.adobe.air (normally used by Adobe AIR) is used to hide the malicious functionality. Path phishing is very common too.

  • Hiding packages, JARs etc. in raw resources or assets. Table 2 lists some examples of malware samples that hide malicious packages in resource files. For example, Android/SmsZombie.A!tr hides a malicious package in a JPG named ‘a33.jpg’ in the assets directory. Android/Gamex.A!tr hides an en-crypted malicious package in an asset named ‘logos.png’. This is close to what is referred to as a poly-glot file [21], i.e. a file which is valid and meaningful for different formats. In Gamex, the asset ‘log-os.png’ is not a valid PNG (thus not really a polyglot), but a ZIP. However, it has the peculiarity of being a valid ZIP file as such, and also another valid ZIP file when XOR’ed with the right key (18).

    Android malware nameYear of discoveryObfuscation
    Gamex.A!tr ae7a20692250f85d7a2ed205994f2d26f2d695aef15a9356938454bccbbbd0692013Assets contain a file named ‘logos.png’. This is not a PNG, but a ZIP, and it unzips to different valid outputs depending on whether XOR’ed with key (18) or not.
    SmsZombie.A!tr 45099416acd51a4517bd8f6fb994ee0bb9408bdd80dd906183a3cdb4b39c47912012Hides malicious package in ‘a33.jpg’.
    DroidCoupon.A!tr 94112b350d0fece0a788fb042706cb623a55b559ab4697cb10ca6200ea77142011The Rage Against the Cage exploit is hidden in a PNG file in raw resources.

    Table 2. Examples of samples hiding malicious packages in resource files.

  • Hiding bytecode. (For instance, abusing linear sweep disassemblers[22] .) According to [16], this is encountered in up to 30% of obfuscated samples. For example, we find it in Android/Agent.SZ!tr. This technique can be detected by looking for Dalvik bytecode that does a goto followed by fill-array-data opcode (see Figure 4). Reverse engineers can use the script androdis.py released with Androguard [4].

    Bytecode is hidden in the array of fill-array-data and invisible to Dalvik disassemblers, which use linear sweep.

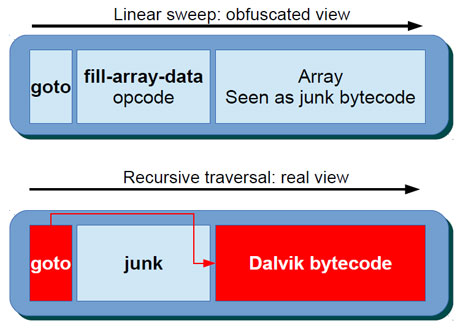

    Figure 4. Bytecode is hidden in the array of fill-array-data and invisible to Dalvik disassemblers, which use linear sweep.

  • String table. Android/GinMaster.L (sha256 hash: e86467622b8faf903edcebe0a57b85c036aa59b1820694ef326b50062dfdc910) builds its own string table as a char array (see below array named ‘OGqHAYq8N6Y6tswt8g’).

    package Eg9Vk5Jan;
     class x18nAzukp {
       final private static char[][] OGqHAYq8N6Y6tswt8g;
       static x18nAzukp()
       {
         v0 = new char[][48];
         v1 = new char[49];
         v1 = {97, 0, 110, 0, 100, 0, 114, 0, 111, ...
         v0[0] = v1;
         v2 = new char[56];
         v2 = {... 110, 0, 97, 0, 103, 0, 101, 0, 114, 0};
         v0[1] = v2;
         ...
       }
    protected static String rLGAEh9JeCgGn73A(int p2) {
         return new String(
    Eg9Vk5Jan.x18nAzukp.OGqHAYq8N6Y6tswt8g[p2]);
    }
    ...
    new StringBuilder(x18nAzukp.rLGAEh9JeCgGn73A(43))


    The rest of the code references the strings in that char array. So you never see the strings directly, but instead indirect calls like rLGAEh9JeCgGn73A(43) etc.

  • Naïve encoding or encryption. Many samples use Base64 (e.g. Android/Stels), XOR (Android/FakeInst), Caesar (Android/Pincer), or simply chop the data into several chunks (e.g. Android/RuSMS.AO below).

    String.valueOf(“http”) + “://” + “ap” + “iad” + “ver” + “t.ru”);

    Some other samples are more creative: Android/Vdloader encrypts characters by subtracting their position in the string (first character minus 0, second character minus 1, etc.), while Android/Tascudap uses its own algorithm. Table 3 lists a few examples of samples that use their own custom techniques.

    Android malware nameYear of discoveryObfuscation
    Agent.SZ!tr 1673f18d7f5778dc4875f10dc507fc9d59be82eaf5060dfc4bfa7a7d6007f7df2014Hides bytecode using [22].
    RuSMS.AO 768cfe8f5ca52c13508b113875f04a68174387e44321d68c132e2a7b6e0cbe0a2014Strings are cut into several parts so as not to be spotted. Uses Adobe’s AIR namespace so as not to look suspicious.
    Stels.A!tr 03c1b44c94c86c3137862c20f9f745e0f89ce2cdb778dc6466a06a65b7a591ae2013Custom base64 to decode the URL.
    Pincer.A!tr.spy fee013fcbbd30ef37c99eab56aa550d27e00e69150f342b80b08d689a98ccefe2013Caesar shift to read C&C URL and phone number.
    Tascudap.A!tr 0be2a4b3a0e68769fa5b3c9cd737e0e87abd6cddb29a7e1fdf326f407a658b542013ProGuard-ed. URL is generated from custom encryption. Malware also uses AES with a key which is built from a hard-coded seed.
    SaurFtp.A!tr.spy e769fdf8f2e1a5311ef089c422a7c0cb360d77082d7d1ef139a95c9321ec402013C&C URL is XOR encrypted.
    FakeInst.A!tr.dial ac118892190417c39a9ccbc81ce740cf4777fde12012SMS text bodies and phone numbers are hidden in a text chunk inside a PNG and ‘encrypted’ using XOR.
    Vdloader.A!tr c17ca0937891974d852f619d3b7be5defc79c6d7bf6f3beeebb991e6845639022012Custom encryption: decrypted = char - pos.
    Temai.A!tr 14354ddd2a9d63b3b5c5db94fd717953572f1293f291e26bc7a4725be4b0b3b82012Downloads another password-protected ZIP file. This ZIP file is decrypted with a hard-coded password, and is a script that opens a backdoor on the phone.
    LuckyCat.A!tr 5d2b0d143f09f31bf52f0a0810c66f94660490945a4ee679ea80f709aae3bd2012XOR encryption of traffic sent to attacker.
    Pjapps.A!tr 02329dc3aa91b5175461b3c298b411fe9d35c8425a5fa485c3a3c4daa12c7d2a2011URL to contact is ‘encrypted’ with a simple algorithm where you only keep one character in every two.

    Table 3. A non-exhaustive list of malicious Android samples using custom obfuscation techniques.

  • Encryption. Malware authors use encryption for various reasons [23]: to conceal strings and exploits, to encrypt communication with the C&C server, to send encrypted emails, and so on. Recent statistical analysis of our Android malware database showed that 27% of malware samples use encryption. (This percentage should be understood as an approximate maximum, as some pieces of malware use encryption but in the ‘legitimate’ parts of their code, not for malicious intent. This has been computed over a set of 460,493 Android samples.) For example, Android/Geinimi uses DES, Android/SmsSpy.HW!tr uses Blowfish, and Android/RootSmart uses AES. Also note that Android’s License Verification Library (LVL) uses AES-based obfuscation:

    1. A hard-coded prefix (‘com.android.vending.licensing.AESObfuscator-1|’) is added to the string to be obfuscated.

    2. The string is encrypted using AES in CBC mode and PKCS5 padding. The key and IV are hard coded.

    3. The encrypted result is encoded with Base64.

    package com.android.vending.licensing;
    ...
    public class AESObfuscator implements Obfuscator {
    ...
      private static final String CIPHER_ALGORITHM =
        “AES/CBC/PKCS5Padding”;
      private static final byte[] IV = { 16, 74, 71, -80...
      private static final String header =
        “com.android.vending.licensing.AESObfuscator-1|”;


    LVL’s obfuscation is used in some samples of Android/Plankton.

    In most cases, the encryption is hard coded. However, some malware do not actually hard code it, but regenerate the key from a random number generator seeded with a hard-coded seed. For instance, this technique is used by Android/RootSmart and Android/Fjcon.

    Table 4 lists a few examples of samples that use encryption as an obfuscation technique.

    Android malware nameYear of discoveryObfuscation
    SmsSpy.HW!tr.spy 69cb8163e959e60b0e024457449c4c8d2586ed3cf2e46351fdedec8ef64a7a792014Contains an asset, ‘data.xml’, which is encrypted using Blowfish ECB and a hard-coded key.
    Agent.BH!tr.spy 5c89b1b008efee0c3a6294d0a02c77845cd91d1faad5df6bf7b6d54a5f3cd0d32014Sends emails using SMTP with TLS authentication.
    GMaster.B 18ad4064750a0e4733a828794f76e6d5b4e60b0fc79c54ba1d8955db82e489d22013Uses Triple DES EDE, CBC with PKCS7 padding to send JSON object containing IMSI, IMEI and various OS parameters.
    FakeDefend.A!tr 5ad411cdcbf68f8f449c470b514ed4ee31cafdf2997c3cd0e6af032750edca582013List of fake infections to display on the device is encrypted with AES.
    NotCompatible.A!tr.bdr 2c5e656af90044cf5cc694519a42477cb18bd4b2722b1474cdead4a8748d3f702012C&C URLs located in a raw resources file are encrypted using AES in ECB mode. The encryption key is the sha256 hash of a hard-coded value.
    Fjcon.A!tr 39f64285207b8184c4940252e2fadf7e903ea0a611bc1bebc84d33a8b692bada2012URLs are encrypted using AES. The encryption key is generated using a SHA-1-based PRNG, seeded with value 125.
    RootSmart.A!tr.dldr ccdfe44762c1c3492f0ca4135afdc258fa7b39ecb9c156a6f0f15e9d05a3ac7e2012Domain name is encrypted using AES. The encryption key is generated using a SHA-1-based PRNG.
    BaseBridge.A!tr 07e1349dfc31e9e6251a2920521e453f71ce296352861902b99734a8a7b7f5542011Uses variable and string obfuscation. Uses AES encryption.
    Hongtoutou.A!tr 4ae1c0faa06ee4dfb6c96b6537d027e90c870d7d3ddcfd5fcde680be9dc51c692011Encrypts phone info sent to attacker, using DES.
    SndApp.A!tr.spy 7e057d3133639374195da6c9805fd7f0edb818047d49955c3f5291f01b942011Uses AES in CBC mode.
    JSmsHider.A!tr 0ea2d931ebb55668ecb101304f316725f6fa1574dbb191dc2d647c65b3aebf2011Encrypts its communication with the C&C using DES.
    Geinimi.A!tr 2e998614b17adbafeb55b5fb9820f63aec5ce8b42011Communication with the C&C is encrypted, so are commands and strings inside the binary. The algorithm is DES, and the key is hard coded.

    Table 4. Examples of malicious samples using cryptography as an obfuscation technique.

    The reversing of samples using cryptography usually means copy-pasting the decompiled Java code that handles the decryption (perhaps with slight adaptation) and running it independently on the data to decrypt. Python comes in handy for writing quick decryption code as there are many decryption libraries. For example, we decrypt an encrypted XML configuration file of Android/SmsSpy.HW!tr using the following code:

    import Crypto
    from Crypto.Cipher import Blowfish
    def PKCS5Padding(string):
      byteNum = len(string)
      packingLength = 8 - byteNum % 8
      appendage = chr(packingLength) * packingLength
      return string + appendage
    def DoDecrypt(string):
      key = ‘tisWsx2xivgQXRxq’
      c1 = Blowfish.new(key, Blowfish.MODE_ECB)
      packedString = PKCS5Padding(string)
      return c1.decrypt(packedString)

  • Loading non-Dalvik code. For instance, Android/DroidKungFu.G loads an ELF executable which holds the payload. Android/FakePlay.B!tr holds a malicious JavaScript that implements click fraud. On Windows Mobile, we have seen WinCE/Redoc loading Basic via Basic4PPC. Basic4Android exists, but we haven’t seen any malicious samples using it yet. Flash code could hold malicious payloads too.

    Android malware nameYear of discoveryObfuscation
    FakePlay.B!tr 4bde46accfeb2c85fe75c6dd57bba898fbb3316f7c4be788bc18676451b545612013The malicious payload is in the JavaScript.
    DroidKungFu.G!tr b03a8fc6d508e16652b07fb0c3418ce04bd9a3c8e47a3b134615c339e6e66bf72012Asset named ‘mylogo.jpg’ is a valid JPG file, but it also contains an ELF.

    Table 5. Examples of samples loading non-Dalvik malicious code.

4. Obfuscation in the future

As we have seen in the previous sections, malware authors are interested in obfuscating their code, and if Android’s crime scene continues to follow the evolution of Windows malware (as it has done until now), then we are only at the beginning of the story. In particular, packers are likely to normalize as UPX (and others) did for Windows. In this section, we prepare for techniques malware authors might use in the near future.

In [24], Bremer demonstrates that it is possible to inject bytecode into nearly any class, with only minor modification. The class needs to have at least a virtual function, and the injection code must read the bytecode to inject as a string and replace the address of that virtual method with the address of the string. An attacker could use this technique for evil:

  • Create a genuine application which acts as a bytecode loader.

  • Read (possibly decrypt) bytecode to inject from a resource, or a remote host.

  • Inject that bytecode into the genuine application and have it perform a malicious action.

Fortunately, for now, Bremer’s technique is limited to returning integers (see Figure 5). However, there is no doubt that it can (and perhaps will) be extended in the future. Anti-virus analysts may try to detect the bytecode loading code, which is based on the iput-quick and invoke-virtual opcodes, however a generic signature will be difficult to design as there are several possible variations and potential false positives.

Injecting constant 0x07de = 2014 bytecode in Bremer’s proof of concept.

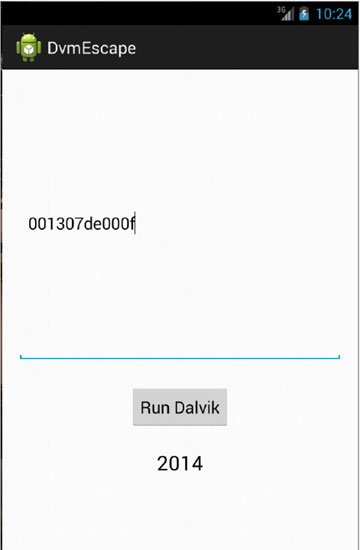

Figure 5. Injecting constant 0x07de = 2014 bytecode in Bremer’s proof of concept.

In [9], we demonstrated that it is possible to hide methods from disassemblers. This is potentially interesting to attackers if they locate their malicious code in those hidden parts. Fortunately, the technique was published along with the Hidex detection tool [8]. (For more information, please see slides from Insomni’hack 2014 [9].)

Ange Albertini has released a Python script [25], [26] that is able to manipulate the encrypted output of AES or DES so that it looks like a customizable PNG, JPG or sound file. A malware author might be interested in using this technique to hide an APK in assets or resources. He/she would create an application which looks fairly genuine, with a seemingly innocent PNG as an asset. The code would load the asset and decrypt it with a hard-coded key to reveal the real, evil APK. The malicious APK would then be installed on the device. The attack is feasible, and such an APK can be created using AngeCryption. However, a few hacks are necessary: the End Of Central Directory (EOCD), which marks the end of the ZIP file, must be duplicated and padded to 16 bytes (for encryption with AES). We are currently working on a proof of concept and detection tool.

5. Conclusion

We have seen Android malware authors use plenty of different techniques to obfuscate their code. With new tools like Bangcle, APK Protect and DexGuard, we fear that mobile malware will become increasingly difficult to reverse in the near future – not to mention techniques such as bytecode injection, method hiding or AngeCryption which haven’t been seen on the malware scene, yet.

In this paper, we have shown that we are not totally helpless in the face of obfuscation. A few simple, but well chosen Unix find/grep commands are useful for understanding what is happening. And in most cases, we have managed to reverse samples with known existing tools such as baksmali, apktool and Androguard – these tools usually work adequately (or nearly), it is more a matter of looking at the right location. Moreover, encryption, which sounds frightening at first, does not turn out to be so difficult to reverse in practice: we just have to write a few lines of code to decrypt the ciphertext. For situations in which reversing remains difficult, we have provided a few enhancements to Hidex, a Perl script which assists reverse engineers in detecting some situations, and helps with the renaming of non-ASCII strings used by some obfuscators.

So we are not helpless, but if we want to keep pace with the techniques malware authors are likely to use in the near future, we had better focus on tools and research in this area as soon as possible.

Acknowledgements

We thank Ange Albertini, Jurriaan Bremer, Anthony Desnos, Robert Lipovsky and Miroslav Legen for their help.

Bibliography

[3] JD-GUI. http://jd.benow.ca/.

[5] Nihilus. Reversing DexGuard 5.x. version 1.

[9] Apvrille, A. Playing Hide and Seek with Dalvik Executables. In Hack.Lu, October 2013. http://www.fortiguard.com/uploads/general/hidex_insomni.pdf.

[10] Android. Dalvik Executable Format. http://source.android.com/devices/tech/dalvik/dex-format.html.

[11] APK Protect. http://www.apkprotect.com/.

[15] Yu, R. Android packer: facing the challenges, building solutions. In Proceedings of the 24th Virus Bulletin International Conference (VB2014). (To be published.)

[16] Lipovsky, R. Obfuzzcation issues. In CARO Workshop, May 2014.

[17] Jia, J. Android APK. May 2013. http://blog.csdn.net/androidsecurity/ (in Chinese).

[18] Pan, B. Bangcle and crack the encryption method. December 2013. http://pandazheng.blog.163.com/blog/static/1768172092013119311705/ (in Chinese).

[19] Strazzere, T. Dex Education: Practicing Safe Dex. BlackHat USA, July 2012. http://www.strazzere.com/papers/DexEducation-PracticingSafeDex.pdf.

[20] Mody, S. ‘I am not the D’r.0,1d you are looking for’: an Analysis of Android Malware Obfuscation. In Proceedings of the 23rd Virus Bulletin International Conference, pp.105–113, October 2013.

[21] Albertini, A. This PDF is a JPEG; or This Proof of Concept is a Picture of Cats. Journal of PoC – GTFO, 3, 2014.

[22] Schulz, P. Dalvik Bytecode Obfuscation on Android, July 2012.

[23] Apvrille, A. Cryptography for Mobile Malware Obfuscation. In RSA Europe Conference, 2011. http://www.fortiguard.com/files/NMS-305-Apvrille-Revised.pdf.

[24] Bremer, J. Abusing Dalvik Beyond Recognition, October 2013. Hack.lu.




Latest articles:

VB2018 paper: Tracking Mirai variants

Mirai, the infamous DDoS botnet family known for its great destructive power, was made open source soon after being found by MalwareMustDie in August 2016, which led to a proliferation of Mirai variant botnets. This paper presents a set of Mirai…

VB2018 paper: Hide’n’Seek: an adaptive peer-to-peer IoT botnet

This paper presents a thorough analysis of the inner workings of Hide’n’Seek, a peer-to-peer IoT botnet discovered in January 2018. With an exploit table that can be updated in memory and modular in its approach, Hide’n’Seek gives us a glimpse of…

Botception: botnet distributes script with bot capabilities

Researchers Jan Sirmer and Adolf Streda describe the branch of the Necurs botnet that they have been monitoring, the changes it has undergone in the course of a year, and present an analysis of the next stage of the attack: Flawed Ammy.

VB2018 paper: Since the hacking of Sony Pictures

Minseok (Jacky) Cha describes various attacks in Korea which occurred after the Sony Pictures hacking incident and which are suspected to be the work of the same group, the Lazarus Group.

VB2018 paper: Uncovering the wholesale industry of social media fraud: from botnets to bulk reseller panels

In this paper GoSecure researchers Masarah Paquet-Clouston and Olivier Bilodeau explore an undocumented segment of the social media fraud (SMF) industry: wholesaling, from botnet supply operations to bulk reselling.


Bulletin Archive

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
