VB2014 paper: Hiding the network behind the network. Botnet proxy business model

Over the years, botnet creators have implemented various methods for protecting their networks and especially their command and control (C&C) servers. Since hiding the C&C server usually means that a botnet will remain active for longer, there exist specialized hosting services that are able to hide a server behind many proxies.

During one of our investigations, we discovered a network of this type, which at the time of writing this paper has 10 ‘clients’ (i.e. 10 servers distributing different malware families). This proxy network has two types of redirection: one on the HTTP standard port (protecting the C&C servers) and the other on the UDP standard port (protecting a dedicated server that handles the DNS resolution for domains generated by Domain Generation Algorithms or chosen at will).

This infrastructure is designed in such a way as to allow critical changes to be made in the shortest time possible, so any abuse report regarding the proxy nodes is handled immediately. The so called ‘cleaning’ is done by making some minor changes to the configuration of the proxy nodes. This is usually achieved by changing the proxies between clients. Therefore the financial loss caused by interruption of the malware distribution, is minimized.

In this paper, we will describe the architecture of this network and the changes made during the time we have been monitoring it. We will also present some examples of malware families that make use of it.

This network model has at least two levels of proxies protecting the real C&C servers. Currently, it has 10 ‘clients’, serving different types of malware to unsuspecting users. Each client has its own set of machines, responsible for handling the UDP traffic. They act as name servers for that specific client and its corresponding HTTP traffic. The infrastructure is designed in such a way as to hide the real C&C servers and to easily be able to apply changes, when needed.

Figure 1 shows the components of the infrastructure.

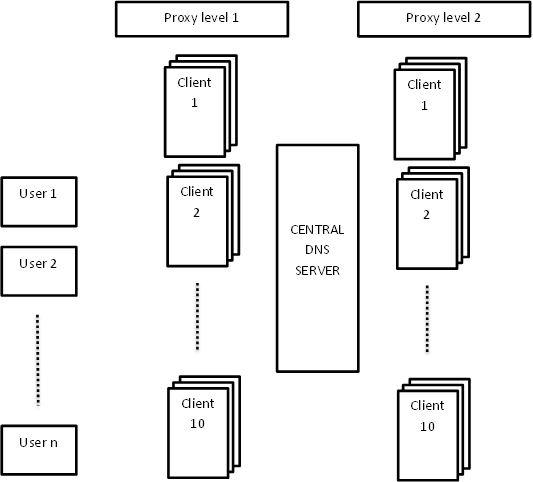

Figure 1. Network’s general infrastructure.

Proxy level 1 is responsible for redirecting the UDP traffic (on port 53) and the HTTP traffic (on port 80). Figure 2 shows the way in which redirection works, using the ‘client 4’ as an example. A user, infected with a piece of malware spread by client 4, tries to connect to a domain, dX. The machines used in the first level of the proxy are set as authoritative name servers for these domains. So, any DNS resolution request for the dX domain arrives here. All the traffic received on port 53 is redirected to a central DNS server. The port used for this redirection is BASE_PORT + client_id, where BASE_PORT is a high number. This approach enables the central DNS server to differentiate between the clients. This server responds with four active IPs, randomly chosen from the list of IP addresses allocated to the current client. The victim’s computer chooses one of these IP addresses (IP 4n in Figure 2) and sends an HTTP request to the machine corresponding to it. This machine will redirect the request on a machine from the second level proxy, usually on port 80.

Figure 2. DNS and HTTP redirections (BP=BASE_PORT).

At the time of writing this paper, this network has 10 clients. When we discovered the network, it had one inactive client and eight active clients, called ‘ozerside’, ‘special’, ‘owner’, ‘nobody_xxx’, ‘owl’, ‘eclipse’, ‘curl’ and ‘victor’ (see Table 1). Around 23 November 2013, the ninth client was activated under the name ‘Lee(iq)’ (see Table 2), and on 20 February 2014 the 10th client was added, without a name (see Table 3).

Table 1, Table 2 and Table 3 illustrate information displayed by the ‘users.php’script located on the central DNS server.

We noticed that some changes had also been made to other clients: client 4 is now called ‘demien (otkaz)’ and is no longer active; clients 6 and 7 changed their names to ‘dokben, 777’ and ‘rxtitans’, respectively.

With the help of some local authorities we managed to analyse some data. An encrypted binary file (ELF) named ‘map’ gave us an insight into the network. The decryption uses the waterfall technique: 13 areas are decrypted, and each decryption depends on the previous one through an index table.

The last area is a bash script that has two main functionalities:

The self-update procedure is very simple. The updated binary file is downloaded via a request to http://IP_MAP_UPDATE/update. Integrity checks are performed using MD5 hashes. The MD5 hash for the binary file is also retrieved from the same link. The bash script checks the data consistency (that is, whether the computed MD5 for the freshly downloaded file is the same as the retrieved one). The next step is to find out whether an update is necessary. If the MD5 for the downloaded binary file differs from the MD5 for the existing binary file, then the old version is replaced with the new one and the process is restarted.

The second functionality is very similar. Through a request to http://IP_DNS_SERVER/<file1>?ip=<currentMachineIP>, an xml file is downloaded and saved, temporarily, as ‘service.xml’. The file contains rules for UDP and HTTP forwarding, as can be seen in Figure 3. The IP used for this update is the IP for the central DNS server. The xml file is parsed, the extracted ‘tunnelling’ rules are applied in the system, and the services affected by those rules (nginx and 3proxy) are restarted.

The structure of the service.xml file is illustrated in Figure 3.

Figure 3. Service.xml file (BP=BASE_PORT).

We noticed that every UDP request is redirected to the central DNS server. The UDP traffic is forwarded to the port BASE_PORT + client_id and, in this way, the DNS server can identify which client sent the request.

The DNS server will respond with a list of IPs corresponding to the identified client, a list of four IPs, not necessarily unique and not necessarily the same for different queries (as mentioned previously, a random list of active IPs). The infected computer will choose one of the IP addresses and send an HTTP request that will be redirected by the level 1 proxy to the IP specified in service.xml for the HTTP protocol. Usually, the value for ‘to_port’ is 80, but it can vary (for example, ‘client 2’ was assigned an HTTP port with value 18230), as we can see from the clients management interface illustrated in Figure 4. The HTTP traffic is actually redirected to an IP from the second proxy layer.

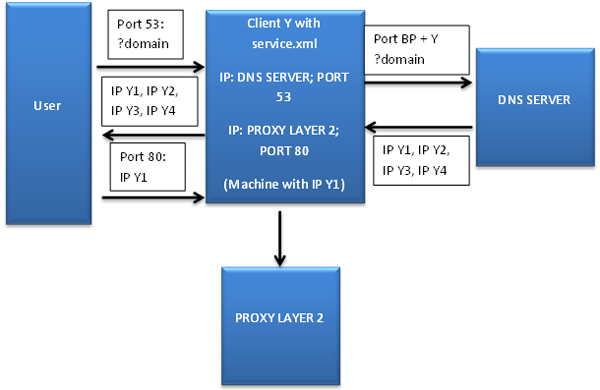

Figure 4. Traffic tunnelling (BP=BASE_PORT).

Central DNS server

The DNS server has three main roles: it resolves DNS queries, as discussed in the ‘Proxy Level 1’ section; it serves updates for service.xml; and it represents the management interface for all the clients.

During our investigation we have been monitoring the ‘map’ file updates for proxy level 1 machines, and we have observed the DNS server being moved from one machine to another. With the help of the local authorities, we managed to gather information about the old server. A collection of PHP scripts was analysed, most of which were related to a management interface.

These files were divided in three main categories: admin, checker and system, as can be seen in Figure 5.

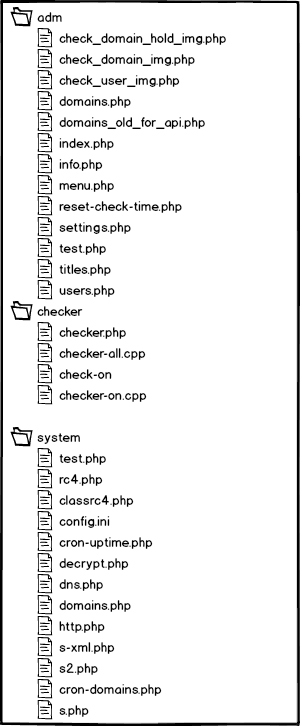

Figure 5. Directory tree from central DNS server.

System

Here, we found scripts for RC4 encryption and decryption, config files, and scripts that delete from the database the servers that have an ‘expired’ LastCall (where the time elapsed since the last valid response is greater than a certain timeout).

We also found the template file for the service.xml update (Figure 6).

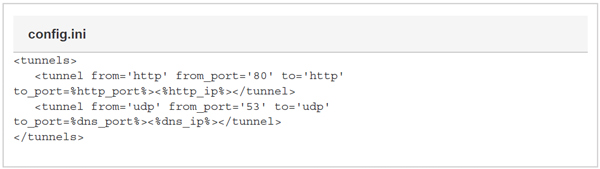

Figure 6. Template for the service.xml file.

Abuse reports

This complex network architecture proves to be very effective in the case of abuse reports. We submitted two types of abuse report, and on each occasion the network recovered very quickly.

The first type of abuse report was related to the servers from the first proxy level. This issue can be resolved only by switching between users’ IP lists. This change is made in the central DNS server, in the ‘servers’ table of the MySQL database. An update for the service.xml file is also provided to the affected machines in order for them to change IP addresses for the HTTP redirection (Figure 7).

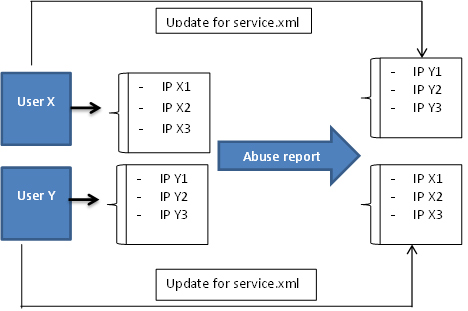

Figure 7. Solution for recovering from abuse reports.

The second type of abuse report is related to the IPs corresponding to the second level of proxies. The events we observed in this case did not last more than 24h, so the downtime for the malware is very small. Usually, after the abuse is reported, the machine is stopped (it doesn’t respond as it should), but after approximately three to four hours, a new IP appears in the system and, in less than 24 hours, the malware is back in business. The changes needed consist of modifying some data from the central DNS server and a service.xml file update. On the central DNS server, in the client’s corresponding file (‘users/%uid%’), the old IP is replaced with the new one. Also, all the clients from the first-level proxy, that redirected the HTTP traffic to the affected IP, will receive a new service.xml file, updated with the new IP.

Statistics

This network is very dynamic – IP addresses are moved from one user to another, new IP addresses are added, and old IP addresses are removed. The charts shown in Figure 8 and Figure 9 illustrate the IP changes that occurred on the first proxy level during the period in which we were monitoring the network.

Figure 8. Number of IPs added weekly.

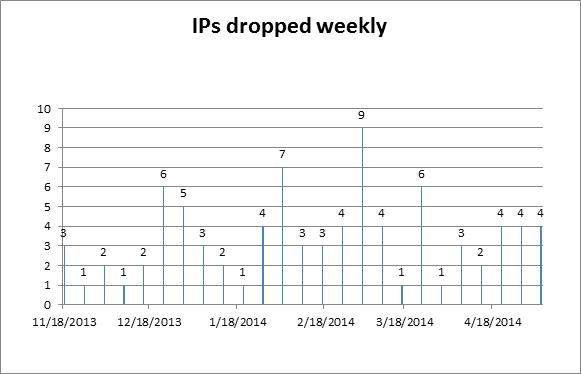

Figure 9. Number of IPs removed weekly.

A map for the proxy level 1 IP addresses in November 2013 is illustrated in Figure 10. There were four serves in the Ukraine, 12 in Russia, and five in Kazakhstan.

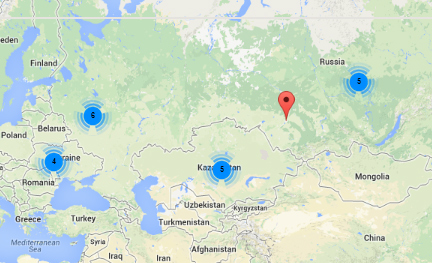

Figure 10. Servers added in November 2013.

In January 2014, they extended their business to the United States (Figure 11). In February 2014, they added a server in Germany (Figure 12). In May 2014, a new server appeared in the Netherlands (Figure 13).

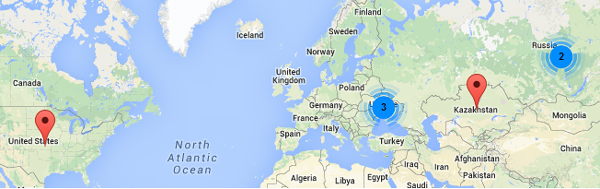

Figure 11. Servers added in January 2014.

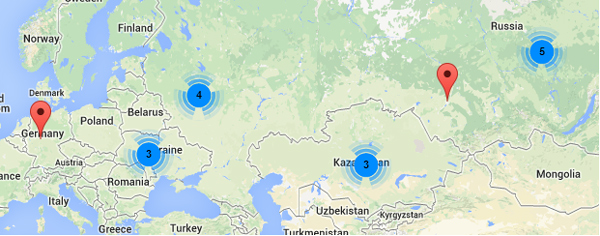

Figure 12. Servers added in February 2014.

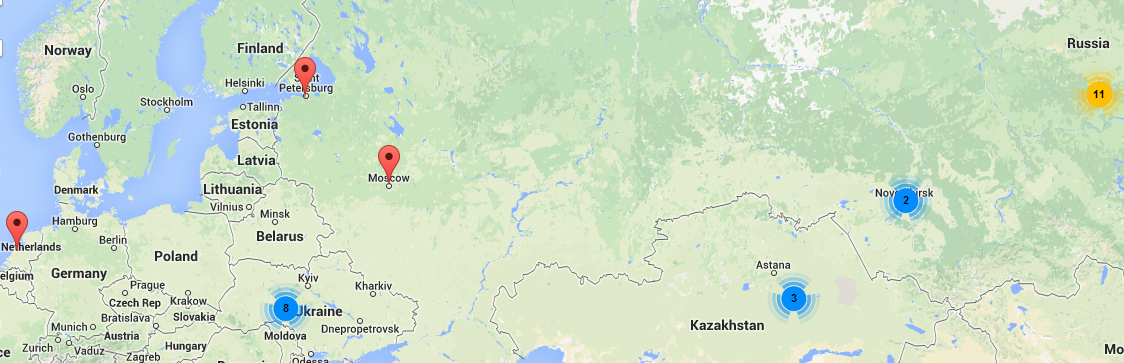

Figure 13. Servers added in May 2014.

(Click here for a larger view of Figure 13.)

A map illustrating all the IPs which passed through the system during our investigation is shown in Figure 14.

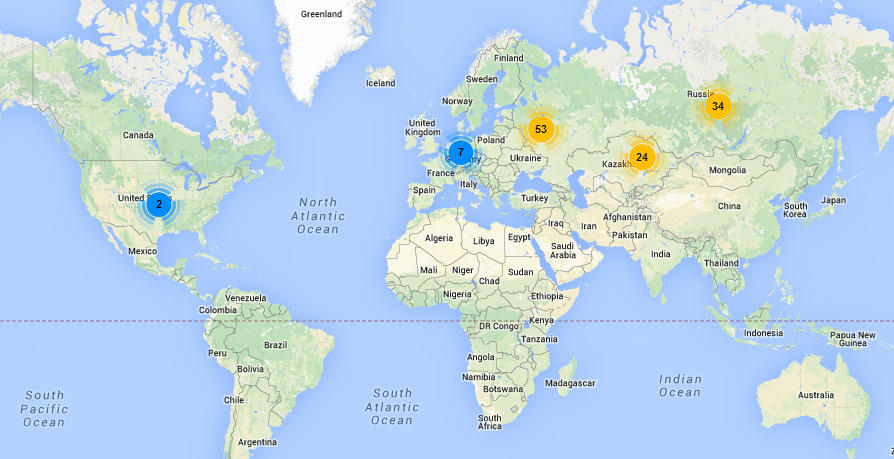

Figure 14. Servers map from November 2013 to May 2014.

(Click here for a larger view of Figure 14.)

This network has proven to be well thought out and maintained. The structure hides the real C&C servers very well and has the ability to recover from abuse reports in less than 24 hours. It has a great dynamic, adding new servers and removing old ones almost every day. It also seems to be very well known among malware creators, who use if for distributing various types of malware.

We are currently continuing our investigation in order to find all the nodes of the network with the aim of taking them down.
