Analysing greyware applications and taking a definitive decision on whether or not to block them is more than often a tedious job, combining research and both dynamic and static analysis. In their VB2014 paper, Stefan Catalin Hanu, Stefan Mosoi and Marius Lucaci explore the possibility of streamlining the analysis of PUAs by using some of the resources the developers of these applications utilize to justify their behaviour: their EULAs.
Copyright © 2014 Virus Bulletin
Over the last few years, a certain category of software has become more and more of a nuisance to AV labs and computer users alike: adware and potentially unwanted applications (PUAs). Walking the thin greyware line, these applications try (and sometimes succeed) to persuade even the AV labs that they are honest and trustworthy. Their motivation is monetary gain, so getting installed on as many computer systems as possible is a way to increase their earnings. This is often achieved by using dubious methods of distribution or using social engineering to trick the user into willingly accepting the software’s installation.
We define Potentially Unwanted Applications (PUAs) (sometimes also referred to as Potentially Unwanted Programs [PUPs]) as computer programs that in some circumstances employ techniques that circumvent security measures or have a negative effect on the user’s interaction with specific applications or actions. This is a rather broad definition, and includes different types of computer programs such as jokes, diallers, browser hijackers, spyware and adware. The latter has seen its ups and downs but the statistics for the last year are showing a disturbing trend, as shown in Figure 1. To better understand the recent evolution of adware, we considered the data from March 2013 as the baseline and determined the monthly growth. This baseline is shown as the 0 tick on the Y axis.

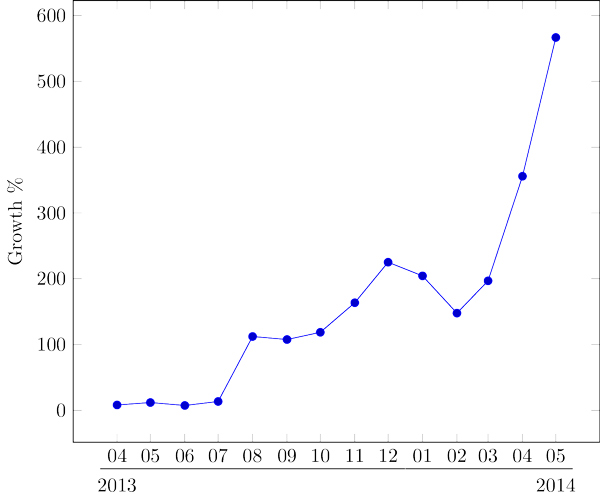

Figure 1. Monthly procentual evolution with 2013-03 as a baseline. (Data provided courtesy of Bitdefender.)
Advertising has been around for a long time, in different forms, always finding ways to interact with people and influence them. The Internet offers access to millions of potential ‘victims’ and this source of revenue is being exploited by legitimate companies and adware creators alike. Having as many users installing their software as possible is a way to increase their earnings.
The other application is similar to the free version of EULAlyzer, the main difference being that it’s an online web page and ‘uses only automated keyword recognition systems’ . Both EULAlyzer and EULA Analyzer rely on the user’s ultimate decision, making both of them unusable for large-scale automated analysis.

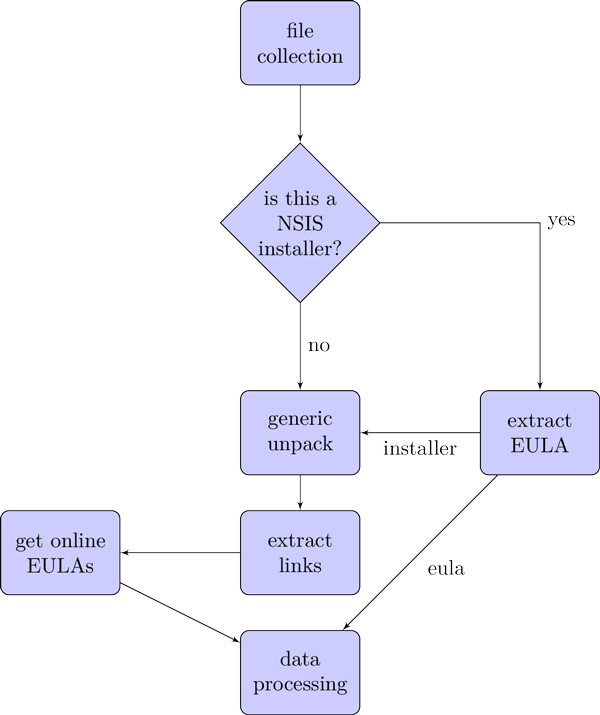

Our goal is to create a system that can automatically classify a binary executable as being either clean or adware while providing more relevant information for the researcher. This means that it must first obtain a EULA from the input file and then compute a score that will help classify it. Even at this level of analysis, two problems emerge: obtaining the EULA, and understanding it. Our trials to overcome the latter are further discussed in Section 2.1, while data collection and processing are detailed in Sections 2.2 and 2.3.
Reading and understanding the contents of the End-User License Agreement is one of the recommendations computer users generally tend to follow the least. From a study proposed by Jeff Sauro  and confirmed by a later paper , we find that ‘more than 50% of the users take less than eight seconds, which is clearly too short, to read the entire notice’ . So why is this happening, knowing that a ‘EULA is a legal contract between you and the software publisher’ ? For once, their presence in every piece of software or website, makes implicit approval an accepted part of installing an application. Furthermore, the legal terminology associated with them, combined with unnecessary and sometimes voluntary language obfuscation makes reading this contract a daunting task for the average user.
Most EULAs and privacy policies adhere to a common writing standard, and in our research, we found that the majority of the documents follow the same patterns. And patterns are great for creating algorithms that can tap into their predictability. So let us further investigate them from a human perspective. Starting from a macro-level, a EULA is nothing more than a document providing information about the relationship between a consumer and the software publisher, regarding a specific service or application. If we go deeper, we can distinguish a specific format in which the data is presented: sections and paragraphs related to a specific subject tend to be located in the same part of the document. This opens new possibilities for searching relevant data in a subset of the document to improve performance. Going even deeper, at the word-level, we can see that some adware-related behaviour is described similarly by using a relatively small subset of words. Making sense of all this might seem trivial for us, but constructing efficient algorithms that can correctly understand and flag parts of the EULA is more difficult than one might anticipate.
This is a text classification problem that we think is most suited for NLP processing and supervised learning. We will also research whether and how it is feasible to classify EULAs by using deterministic algorithms based on a database of features constantly maintained and improved by the researcher.
Because the main target for adware producers is the Windows operating system, we will concentrate our efforts on processing binary executable files for this platform. The PUA collection was randomly chosen from a batch of files detected by at least three known anti-virus products or that were part of known adware families. The clean binaries were taken from different download websites known to have strict validation rules for the hosted products and tested by scanning with different AV products to ensure a 0% detection rate. All the files were processed using the same steps, as described in Figure 2, with the first operation requiring the filtering of Nullsoft Scriptable Install System (NSIS)  installers. We chose to handle NSIS files in a different way as they offer a simple manner of extracting the EULA from its decompiled script, making it possible to correlate the document to the installer itself and not a bundled file. The next step is to send all the binary files, including the NSIS installer (if applicable), to a generic unpacker so that we can extract Internet addresses from any file contained within. This should cover the cases where an installer bundles adware components.
Using this flow, we processed 1,028,146 PE binaries, obtaining 52.49% clean and 47.51% adware EULAs. This distribution was obtained by correlation with the verdict of the document’s parent executable and by filtering manually. After obtaining this new collection of ASCII files we went further with processing them, as described in the next section.
At this stage, our goal is to obtain interpretable data from the collected text files. In order to achieve this, we went with what NLP has to offer in the form of the Natural Language Toolkit (NLTK)  library for Python. This gives access to several functions that streamline interaction with some of the most commonly used tasks in NLP, like part-of-speech tagging and word sense disambiguation.
Every language has its own semantic and grammar rules, and most of the functions and algorithms backing NLTK have been trained on English documents. This makes it only natural that we should ignore any sample written in a different language. For this task we chose the langid Python library, which uses ‘cross-domain feature selection for language identification’ .

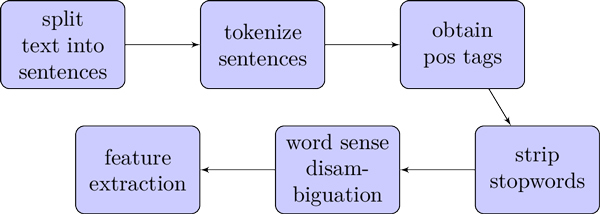

One challenge was representing the content of EULAs and privacy policies in a meaningful manner. The first thing that comes to mind is getting all the words and using them as features for a supervised learning algorithm, but that wouldn’t be very effective because of language obfuscation. In order to overcome this we started by splitting the text into sentences and individually tokenizing them, as summarized in Figure 4. Using the extracted data, we obtain the part-of-speech tags in the form of two-element tuples that we have stored in order to use in a later step. Next, we want to strip any stop words because at this point they are nothing more than noise that will ultimately have a negative effect on our statistics.
The last step in preparing our data is to reduce the remaining words to a simpler form. For this task, we have a variety of stemmers, such as Porter , Lancaster  and Snowball , or we can choose a lemmantiz-er. Stemming algorithms have been around for quite some time and are still being used, mainly because in some cases they offer the best option in terms of the performance-result ratio. They work by removing or re-placing suffixes in order to obtain a common base form of the word, as opposed to lemmatization algorithms. The latter try to get to a common root by first acquiring the part of speech and then using it to choose different normalization rules, depending on the case. After rigorous testing, we ended up using the WordNet synonym ring (synset), which in turn uses the WordNet Database  and allows for accessing lemmas in order to get a canonical form of the word. For most of the relevant terms, the WordNet synset approach returns excellent results, such as in the case of the ‘ad’ word variations as seen in Table 1.
Table 1. WordNet compared to common stemmers.
In this case, the Lancaster stemmer manages to return an identical form for all the variants, and a comparison of these results with those from the WordNet approach might seem to come out in favour of the first algorithm. But we do not believe that this is the best outcome, since we lose the meaning in a sentence. This is not the case when using synsets – here, all the nouns referring to advertisements reduce to a common ‘ad’ word, the action term is reduced to itself, and the word defining the entity keeps its form. This is ideal for us because of the approach we used to generate the initial form of the features that will later be fed to our supervised learning algorithm. To achieve this we looked at the rather standard method of computing the word frequencies for the entire EULA lot and selected 10,000 of the most commonly encountered terms. This is usually enough to give clues to the content of a text file, but doing so will also strip any sense markers. So we went a step further and manually constructed a list of keys that are specific to adware and advertising, such as ‘ad’, ‘offer’, ‘contextual’, ‘collect’, ‘relevant’ and others. Using the already tokenized data, we created all the combinations of two and three words from a sentence that contains one of the manually selected terms and computed the frequency of such groups. As in the case of the word frequencies, we selected the first 10,000 most common groupings to enrich our feature list, now growing to a quite large 20,000 element array. The reasoning behind creating these word combinations is to extract more contextual sense from a sentence, rather than the whole text, as most of the relevant information in some adware EULAs is contained in no more than a few sentences or phrases. This approach can also make a difference when trying to analyse a EULA that makes reference to advertising on the website, even if the software itself is clean, by associating keywords with, for example, the term ‘website’.
Having obtained our initial feature list, we continue by using the One Side perceptron . The decision to use this algorithm in favour of others was made bearing in mind the consistent results in similar tasks and its optimizations for lowering the number of false positives. The tests were conducted using different subsets of features from the initial 20,000 element set. These subdivisions were constructed by using four different feature selection algorithms: F1 , F2 , AbsProcDiff and ProcDiff. For the first three we chose 500 of the most relevant features and for the fourth we used a 200-100-200 split by selecting the first 200 most applicable features for each of the clean and adware classifications and a 100 slice from the middle of this distribution.
This pick is advantageous for our purpose, knowing how ProcDiff works. It computes the difference between the percentage of clean and adware samples that share the same feature, creating an ordered list where we have representative features for clean samples at one end, and for PUAs at the other. In the middle of the list we should find features that are common to both classifications, which are needed in order for the perceptron to better make feature connections.
AbsProcDiff works in the same way, representing only the absolute values obtained with ProcDiff. The results can be seen in Table 2.
Table 2. One Side perceptron test results.
The ‘FP’ column represents the number of false positives, while ‘Se’ is the sensitivity and ‘Acc’ the accuracy. It’s obvious that using the ProcDiff feature selector offers the best results in terms of both detection and FP number.
At this time, the described algorithms and procedures are being used as a pilot program tapping into the malware stream while trying to detect new adware families. This assures continuous development and the addition of new features to the platform while the EULA collection increases, providing a better training environment.
 Lavesson, N.; Davidsson, P.; Boldt, M.; Jacobsson, A. Spyware prevention by classifying end-user license agreements. In New Challenges in Applied Intelligence Technologies, pp.373–382. 2008.
 Lavesson, N.; Boldt, M.; Davidsson, P.; Jacobsson, A. Learning to detect spyware using end user license agreements. Knowl. Inf. Syst., 26(2):285–307. 2011.
 BrightFort. EULAlyzer. http://www.brightfort.com/eulalyzer.html.
 A. S. Labs. EULA Analyzer. http://www.spywareguide.com/analyze.
 J. Sauro. Do Users Read License Agreements? http://www.measuringusability.com/blog/eula.php. 2011.
 Böhme, R.; Köpsell, S. Trained to accept? A field experiment on consent dialogs. In CHI, pp.2403–2406. 2010.
 NSIS. http://nsis.sourceforge.net/Main_Page.
 Natural Language Toolkit. http://www.nltk.org/.
 Lui. M.; Baldwin, T. Cross-domain feature selection for language identification. In IJCNLP, pp.553–561. 2011.
 Porter. http://tartarus.org/~martin/PorterStemmer/.
 Snowball. http://snowball.tartarus.org/.
 WordNet Database. http://wordnet.princeton.edu/.
 Gavrilut, D.; Benchea, R.; Vatamanu, C. Optimized zero false positives perceptron training for malware detection. In SYNASC, pp.247–253. 2012.
