In the past two years, BlackEnergy has become one of the top malware families of interest to system administrators with the responsibility of protecting the networks of potential targets, to security researchers who have the family in their sights, and also to the media – both technical and mainstream.
BlackEnergy recently made the headlines again after we discovered that it was used in cyber attacks against electricity distribution companies, which resulted in massive power outages in Ukraine in December 2015.
But cyber attacks using the BlackEnergy malware are nothing new. We first discussed the malware and the perpetrators behind it (later nicknamed the Sandworm Team) during our talk at the Virus Bulletin conference in 2014, where we discussed how it transformed from a regular piece of crimeware for DDoS attacks and online banking fraud into a complex piece of malware for espionage and industrial sabotage. Now we are publishing our most comprehensive paper on the cybercrime operations based on our three years of research.
One of the main reasons why the BlackEnergy attacks have grabbed so much attention is because they were – and still are – used in the midst of a tense geopolitical situation in Ukraine. In addition to electricity distribution companies, the targets in that country have included state institutions, news media organizations, airports, and railway companies. Ukrainian officials were quick to point an accusing finger at Russia, and many others – including security companies – followed with similar allegations. The power grid compromise has become known as the first-of-its-kind confirmed cyber warfare attack affecting civilians.
In our paper we share insights about the discoveries and our following research, including previously unpublished details. We attempt to separate facts from speculations, reality from hype, and clearly state what we know and don't know – both in regard to attribution, as well as other disputed details of the attacks.
The BlackEnergy malware has evolved significantly from its initial version first seen in 2007, which has little in common with the samples in the wild (and in the headlines) in 2016. Over the years, the malware family has been used for (petty) cybercrime, cyber espionage, and most recently, cyber sabotage.
It is important to point out these technical aspects, since there have been many reports in recent years about 'the group' behind BlackEnergy and the origin of the malware. The initial version of BlackEnergy had Russian origins, was sold on underground forums, and its source code was leaked. Version 2 of the malware (2010) was a complete code rewrite that introduced a modular architecture. Since then, it has been used for a wide range of purposes. We know little about the perpetrators behind the current BlackEnergy attacks, but as the malware family has been used in common cybercrime attacks simultaneously with targeted attacks, it is likely that there are several groups in possession of the trojan. In this paper, we will focus on the recent targeted attacks.
We discussed the evolution of the malware, technical details, as well as some of the cyber espionage attacks conducted with it against state organizations in Ukraine, in our 2014 talk at the Virus Bulletin conference  and in a blog post .
The attackers continued to be active in 2015, and their activity culminated in the widely publicized attacks against the Ukrainian power grid at the end of that year.
Following our initial discovery that attackers using the BlackEnergy malware were responsible for the massive power outages , several reports have been released that explain the chain of events leading up to the blackout [4, 5]. It was a well-planned operation that took several months of reconnaissance to prepare.
The aim of this paper is to provide additional details about the modus operandi of the BlackEnergy APT group and to add previously undisclosed context.
The BlackEnergy group has been focused on Ukraine ever since we first observed the trojan being used in targeted attacks. We have collected various documents containing Microsoft Word exploits that were used by this group.
|Approximate date of use||Filename||Vulnerability|
|May 2012||EU chief Barroso to snub Euro 2012 in Ukraine.doc||CVE-2012-0158, Fixed in MS12-027|
|November 2013||Shale Gas.docx||CVE-2013-3906, Fixed in MS13-096|
|December 2013||Ukraine Protests.docx||CVE-2012-0158, Fixed in MS12-027|
All of these examples use Ukraine-related topics in their filenames or in decoy-documents. Moreover, there are indications that some of these files contained exploits for security flaws that were unpatched at that time (zero-days).

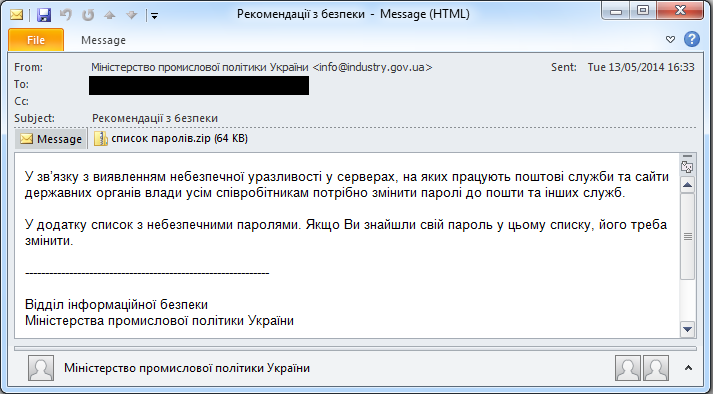

In May 2014, this group used spear-phishing emails against various targets, including elements of critical infrastructure such as energy companies. In these emails attackers impersonated government entities. Figure 1 shows an example of a spear-phishing email with a forged sender address. The attackers were impersonating the Ministry of Industrial Policy of Ukraine and the text of these emails explained that recipients should change their passwords if they were contained in a list of passwords attached to the email. The attached zip archive actually contained the BlackEnergy executable.
In the beginning of August 2014 the group started to send spear‑phishing emails with a PowerPoint presentation attached. The PowerPoint file was named 'zdacha_krovi.ppsx' (Ukrainian for 'blood donation'). The PowerPoint presentation included one of the first exploits of the CVE-2014-4114 vulnerability. At that time, the vulnerability had not been patched.
Ten days later the attackers started using a new PowerPoint file, named 'spiski_deputatov_done.ppsx', in a much larger spear-phishing campaign . That's when it was spotted by ESET and iSIGHT Partners and reported to Microsoft by both companies.

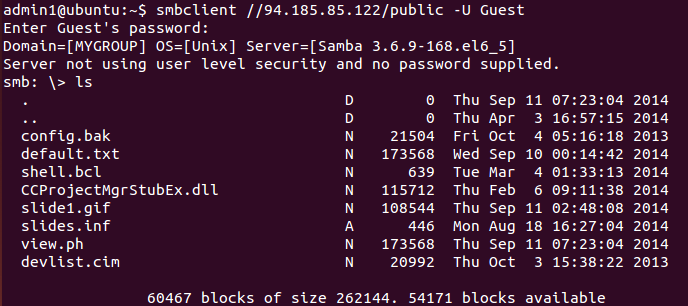

The vulnerability, in the Windows Object Linking and Embedding (OLE) package, allowed attackers to perform remote code execution on the target system. The PowerPoint package contained two embedded OLE objects, each with a remote path where the resource was located. The final payload was located on a remote SMB share. Other files were also located on the SMB share, including files which were possibly used against users of a SCADA platform called the CIMPLICITY HMI solution suite .
In late October 2014, the Department of Homeland Security's (DHS) Industrial Control Systems Cyber Emergency Response Team (ICS-CERT) issued an alert warning stating that the BlackEnergy group was targeting the human-machine interfaces (HMIs) of industrial control systems . The alert warned that users of GE Cimplicity, Advantech/Broadwin WebAccess, and Siemens WinCC had been targeted by this cyber threat actor.
These findings demonstrated the interest of the BlackEnergy group in Ukraine and industrial control systems.
For some of the victims, attacks in 2015 started in February. At that time the attackers sent out spear-phishing messages, but surprisingly these messages didn't contain any malicious objects. Instead, the emails contained HTML content with a link to a .PNG file located on a remote server, so that the attackers would receive a notification that the email had been delivered and opened by the target. The name of the .PNG file was unique to each recipient and represented the victim's base64 encoded email address. (It should be noted that not all email clients load remote content by default.)
The attached PowerPoint presentation was not malicious, but it also contained external pictures. Once opened, PowerPoint displays a warning and does not load such pictures by default.
We have a conjecture that by sending these spear-phishing emails, the attackers intended to find out how many people read the emails, and how many of them actually open attachments.
During the next few months, the attackers were sending spear-phishing emails that actually contained malicious attachments – specifically Microsoft Office files with malicious macros, and PowerPoint files. Once such a PowerPoint file was opened, it displayed a security warning to the victim about potentially malicious content. If the user allowed this content, then PowerPoint made an attempt to create and execute a malicious .JAR file, which tried to launch the BlackEnergy dropper. This approach relied on the assumption that the victim had Java Runtime Installed.

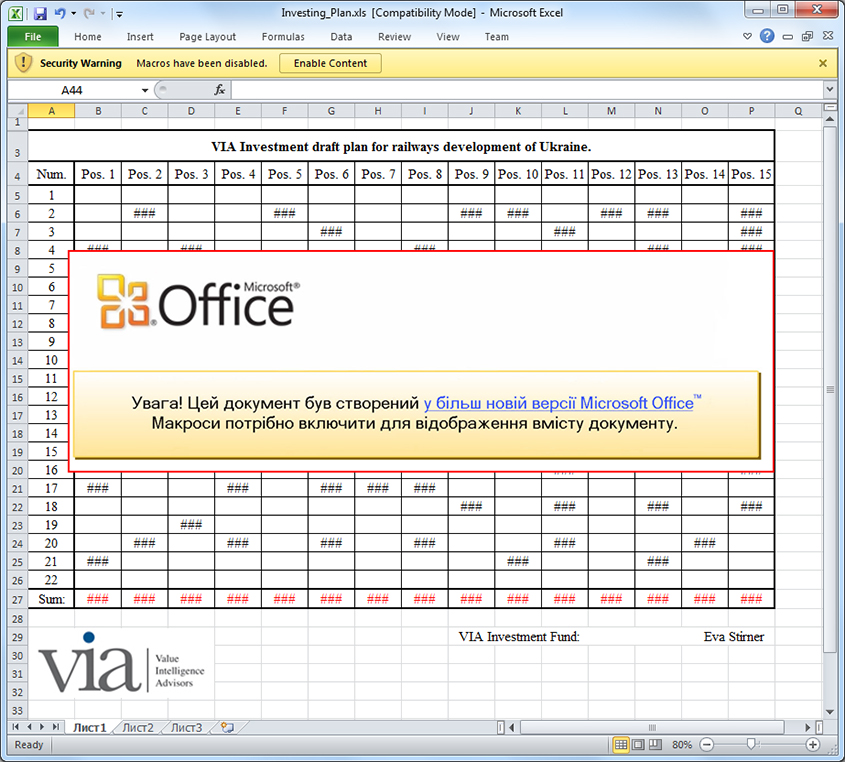

The Microsoft Office files used in the 2015 attacks had different content and layout; in some cases, attackers used a template that was customized for a particular victim. Previously unpublished examples of such malicious Excel files are shown in Figures 6 and 7.
On 23 December 2015, attackers behind the BlackEnergy malware successfully caused power outages for several hours in different regions of Ukraine. This cyber attack against three energy companies has been confirmed by the Ukrainian government  and by the DHS .
While some security experts are skeptical about any involvement of the BlackEnergy malware in the power outage incident, we should say that this malware was indeed detected in Ukrainian energy companies. It is likely that attackers didn't use the BlackEnergy malware to cause the outage itself, but the malware was definitely used for the preparation of power outage attacks.
We are aware of a case in which attackers used existing tools within the environment, specifically the Radmin application. Radmin is client-server software that allows computers to be controlled remotely; it's often used by network administrators to fix various issues. The attackers gained access to an operator's computer using this tool and, 'on behalf of operator', performed operations that caused a power outage. Since this software has a verbose log file, the coherence between the time of incoming Radmin connections to the operator's machine and the time of outage strengthens the assumption that Radmin software was used.

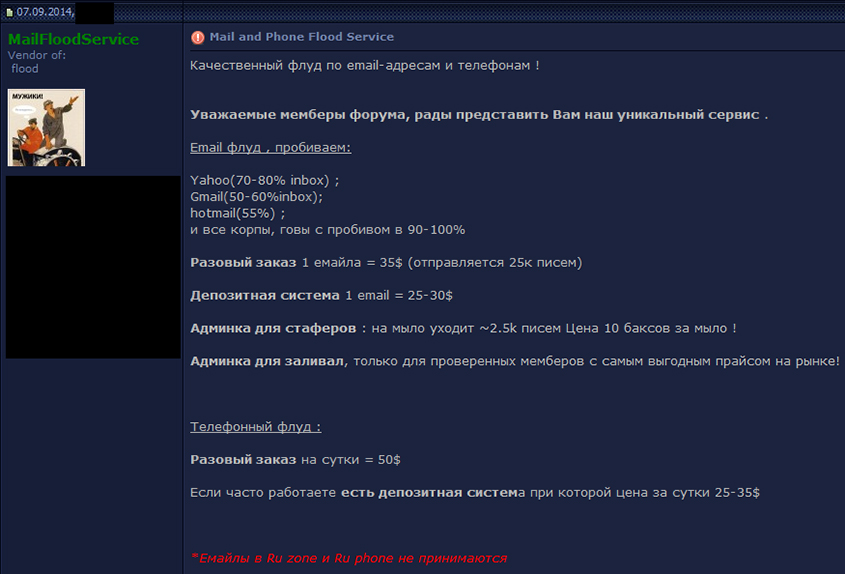

In some reports there was information about a telephone DDoS attack (also sometimes referred to as a 'telephone flood' by cybercriminals) against one energy company . This tactic has been used in the past by cybercriminals to hide a cyber heist or major hack . In fact, there are individuals on underground forums who are offering such services to anyone for US$50 per day, which means that the victim of such an attack would receive a huge number of incoming calls for a whole day and it would cost the attacker only US$50.
In this section, we will examine the different tactics, tools and procedures used by the BlackEnergy group at each stage of the attack.
As explained before, the BlackEnergy group makes heavy use of spear-phishing emails. The attached file that leads to compromise takes a variety of forms; we have seen the use of Microsoft Word or Excel documents with a malicious VBA macro, Rich Text Format (RTF) documents embedding exploits for Microsoft Word, PowerPoint files, including zero-day exploits, and straightforward executable binaries.
In addition, there is a report by the Ukrainian security company CyS Centrum that states that the BlackEnergy group compromised a web server that was connected to the company's local network. Afterwards, attackers were able to move onto the local network via the compromised web server .
The BlackEnergy group may use different approaches for spear-phishing attacks. In some cases, we observed the attackers mass-mailing spear-phishing messages to a number of employees in targeted organizations. Alternatively, attackers may select just a few email addresses and target those addresses only.
Since many victims in corporate environments don't have administrator privileges, the attackers introduced the BlackEnergy3 (mini or light) version in 2013. The major difference between BlackEnergy2 and BlackEnergy3 is that the latter was designed to work without administrator privileges. Other differences between these versions are less significant. We are aware of an analysis of BlackEnergy3 malware that inaccurately claims that the malware is able to start system services or works as a network sniffer. However, BlackEnergy3 does not have these features simply because it was not designed to have them. The researchers confused BlackEnergy itself with its wrapper, which was used to disguise one of BlackEnergy's components.
While monitoring this threat, we observed another interesting detail. When the attackers are not familiar with the security measures implemented in the victim's network, or when they are attempting to attack the victim for the first time, they prefer to use HTTP rather than HTTPS, for communication with C&C servers. However, the HTTP communication is still encrypted with the RC4 algorithm. Such behaviour could be explained by the fact that some security solutions are able to notify a system administrator about suspicious HTTPS traffic in the network. If there were no such issue, then the attacker would switch to HTTPS communication later.
As with a number of modern, sophisticated threats, the BlackEnergy malware has a modular architecture. The core component of BlackEnergy does not provide the attackers with much functionality: it is able merely to download and execute a binary or shell command, uninstall itself, modify internal settings, or load additional modules.
The functionality of BlackEnergy can dramatically be extended with additional modules. These modules are stored in encrypted form in a separate file, which can be referred to as a plug-in-container. Thus, analysing such containers can reveal interesting details about new functionality or other changes.
During our research in 2014 we discovered and analysed 14 different BlackEnergy plug-ins , while in other publications on BlackEnergy activity, researchers revealed 17 plug-ins . The difference could be explained by a focus on different botnets. BlackEnergy operators don't push all the possible plug‑ins at once; they use only those plug‑ins that they need at that time.
In 2015, we collected and analysed 20 containers from various victims, including energy companies. Five of those containers were empty. The malware has a command which allows an operator to modify or delete entries in a container.
Table 2 lists the BlackEnergy plug-ins used in attacks in 2015.
|Module name||PE timestamp||Purpose|
|ps.dll||Nov 10 05:25:51 2013||Password stealer|
|vs.dll||Nov 10 05:27:45 2013||Network discovery & remote execution|
|ss.dll||Nov 10 05:27:02 2013||Screenshots|
|scan.dll||Nov 10 05:28:06 2013||Network scanner|
|kl.dll||Aug 04 07:17:07 2014||Key logger|
|fs.dll||Apr 10 16:15:37 2015
Jul 17 09:02:39 2015
|File system operations, gathering information about the victim’s system|
Since some of the plug‑in containers were recovered from computers in energy companies in Ukraine, we expected to discover new plug-ins that potentially could be used in attacks against SCADA systems. However, nothing like that was found. Moreover, if the PE timestamps are genuine, it means that the attackers hadn't even updated plug-ins since 2013 and 2014. Perhaps the existing functionality was enough for their purposes.
When attackers get into the local network, they start to gather information about the system and network perimeter. Initial reconnaissance is made by the FS plug-in. This module collects a great deal of valuable information for attackers: Windows version, current privileges, installed applications, running processes, proxy settings, and the output of system utilities such as systeminfo, ipconfig, netstat, route, and tracert. In addition, this module may parse and collect information from the Windows System Event Log. Specifically, it collects the dates and times of system starts, reboots and shutdowns. This information reveals to attackers the victim's work habits, for example whether the employee turns his computer off over the weekend, or at what time he or she comes to work and turns the computer on.
With help from the password stealer and key logger plug‑ins, attackers are able to collect login credentials to various applications such as browsers, email clients and passwords stored in the Windows Credentials Store. Once the BlackEnergy operators have obtained valid credentials, they are able to move to the other computers in the network. This is done by use of the VS module. This module has embedded PsExec within it – a legitimate Microsoft tool that allows the execution of programs on remote systems.

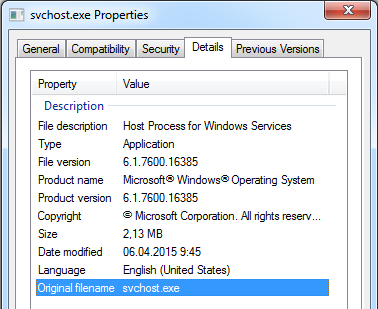

The attackers may explore the network perimeter using their SCAN module, which allows them to map the network and scan hosts for open ports. Interestingly, it seems that this module was not efficient enough for the attackers. We have seen them making use of the Nmap network scanner version 6.47. The scanner tool's executable was located in the C:\Windows\Temp\Syslog\ directory and disguised as the Microsoft svchost.exe executable.
The ultimate goal for any APT is to gain access to the Active Directory server and obtain domain administrator privileges. The BlackEnergy group is no exception, and to do that they used Mimikatz. This is a tool that can retrieve Windows account passwords and hashes from memory. We have seen that attackers were trying to download the Mimikatz tool right away from the GitHub site. Since Mimikatz requires local administrator or system privileges in order to perform certain actions, attackers need to obtain such privileges beforehand. We didn't observe any use of local privilege escalation (LPE) exploits by this group, but we don't exclude that possibility.
Once the attackers have gained the required credentials, they can infect key network nodes using BlackEnergy2: specifically, this group is interested in infecting Windows servers. BlackEnergy2 exists in the form of a kernel-mode driver, which makes it harder for network administrators to discover the compromise. Current versions of the Windows Server operating system don't exist for 32-bit platforms, and for 64-bit platforms Microsoft driver signing policy requires kernel-mode drivers to have a valid digital signature . Previously, the BlackEnergy2 dropper bypassed this security measure by enabling the TESTSIGNING boot configuration option . However, the infected system still needed to be rebooted in order to start the BlackEnergy driver. This unplanned reboot of the Windows server could raise suspicion. To solve the reboot issue, in 2015 the attackers started to use a tool called DSEFix . This is an open-source tool that exploits CVE-2008-3431, a vulnerability in the legitimate VirtualBox driver, in order to disable the driver signature check. Since DSEFix disables this check only until the next reboot, the attackers made a custom version of DSEFix that also modifies boot configuration data (BCD) in order to enable TESTSIGNING mode.
Another tool that we discovered in BlackEnergy's 2015 arsenal is detected by ESET products as the Win32/SSHBearDoor.A trojan . This is a backdoored version of a legitimate SSH server called Dropbear SSH. The attackers used this tool to regain access to the server, in the event that the BlackEnergy malware was discovered and deleted.
Sometimes the BlackEnergy group may insert their implant on computers that are used as part of critical infrastructure and wait until they need it, 'just in case'. In such cases the attackers are trying to stay under the radar: they don't exfiltrate large amounts of data to C&C servers or even attempt to perform lateral movement.
We observed that attackers may use a unique C&C server for each infected computer in the same network. This tactic has the potential to allow attackers to stay longer on the network, since even if infection is discovered on a particular computer, other infections may remain unnoticed.
In 2015, attackers used the KillDisk component as the final phase of attacks. This destructive component deletes important files on the disk drive, empties Windows event logs and, to make the system unbootable, rewrites the first sectors on physical drives. The first use of this component was documented by CERT-UA against media companies . In the case described by CERT-UA, it is unclear whether this component was used to cover tracks or whether it was the original intent of the attackers.
On 20 January 2016, ESET identified a new attempted attack on energy companies in Ukraine . The attackers used exactly the same infection vector as in previous attacks: a spear‑phishing email with an attached Excel document containing a malicious VBA macro. This time, however, instead of using BlackEnergy, the attackers used different malware. The first-stage payload was a simple trojan downloader, which connected to and downloaded a second-stage payload from a compromised Ukrainian server. The second-stage payload was a backdoor, written in Python, called Gcat. This backdoor is open source and freely available to everyone on GitHub.
Why do we conclude that the same group was behind this attack? We know because the spear-phishing emails were sent from the same server as was used by the BlackEnergy group . In addition, the attackers' email used the same notification technique, with a PNG image, as described above.
The fact that this group is able to use different types of malware inspired us to look for similar cases in the past. We found one such case, but there is no proven link to the BlackEnergy group as seen in the 20 January 2016 case. However, we still believe that it was used by the same group.

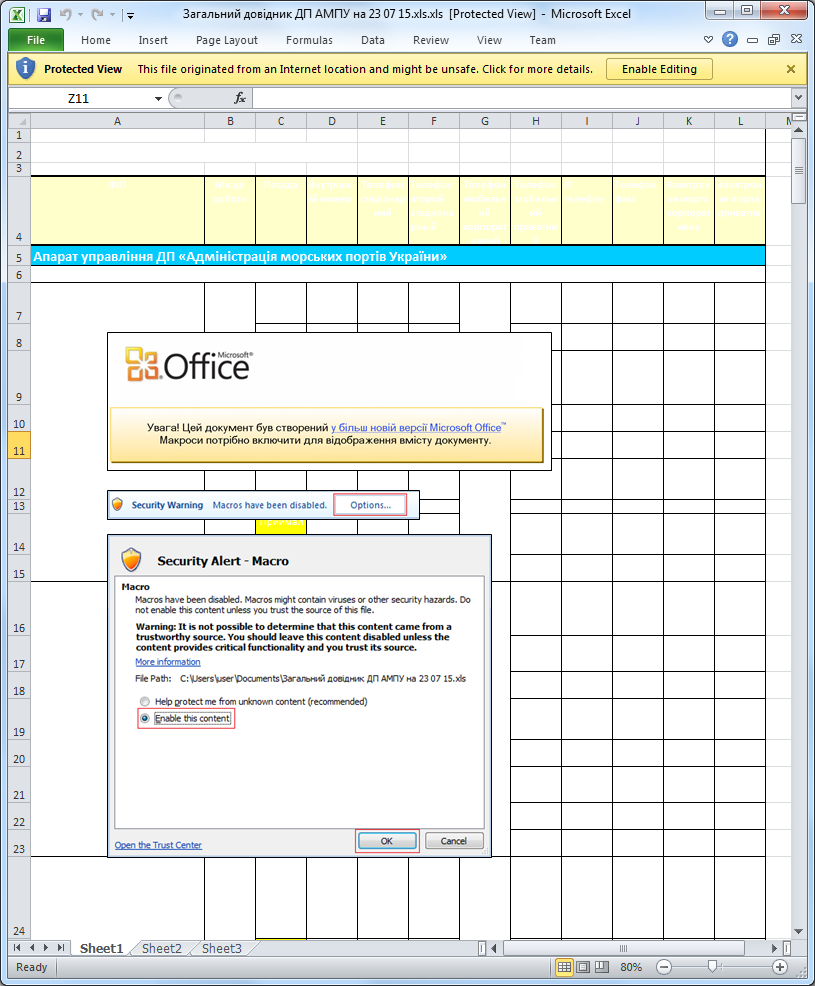

As before, the initial infection vector was an Excel document containing a malicious VBA macro. The document was named Загальний довідник ДП АМПУ на 23 07 15.xls, which translates from Ukrainian as the General Directory of State Enterprise «Ukrainian Sea Ports Authority» on 23 07 15. Since this document uses the topic of sea ports, and we are aware that the BlackEnergy group is known to attack such critical infrastructure components, it is fair to assume that this document was used against sea port companies or companies in some way associated with them.
The VBA macro code in this document is very similar to a macro used by BlackEnergy in delivering documents. Once the macro is activated, this document creates the file vba_macro.exe in %TEMP% and executes it afterwards. The executable is an obfuscated .NET binary, which simply downloads a second‑stage payload. Unfortunately, it is not possible to say now what was downloaded when the server was active.
The document was saved on 23 July 2015 and the payload dropped was detected by our products in the fourth quarter of 2015. We don't know how successful this attempted attack was.
The perpetrators behind BlackEnergy have caused the first documented act of cyber sabotage against a mass civilian population. That fact by itself makes the threat and threat actors interesting but, as our research has showed, there are also many other noteworthy details that have come to light over the years, for example, the use of the PowerPoint zero-day exploit CVE-2014-4114.
The BlackEnergy attacks in Ukraine have been taking place at the time of an armed conflict, which makes it an exceptionally sensitive issue. Given the geopolitical situation in the region and the types of victims targeted in the attacks (high-value state and government organizations but also critical infrastructure – power grid, railway, airport, news media, and others) political motives are very likely. Ukrainian officials were quick to point an accusing finger at Russia, and many others – including security companies – followed with similar allegations. Since attribution in the cyber world is always tricky, we can neither confirm nor deny this. In fact, it is somewhat disturbing when speculations are presented as facts without hard evidence.
Whoever stands behind the BlackEnergy attacks, we can expect to see more in the future. We will continue monitoring the situation for new developments.
