VBSpam Email Security Comparative Review - September 2022

Ionuţ Răileanu & Adrian Luca

Virus Bulletin

Copyright © 2022 Virus Bulletin


Introduction

In this test – which forms part of Virus Bulletin's continuously running security product test suite – seven full email security solutions, one custom configured solution1, one open-source solution and one blocklist were assembled on the test bench to measure their performance against various streams of wanted, unwanted and malicious emails.

During the 16 days in August over which this test ran we saw fewer spam emails than in previous tests. This translated into fewer malware and phishing emails as well.

The tested solutions managed to block the majority of spam emails, the more significant challenge being the phishing emails, despite the lower number of these.

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test. (Note: these statistics are relevant only to the spam samples we received during the test period.)

# Sender's IP country Percentage of spam
1 Japan 13.60%
2 China 13.19%
3 United States 8.66%
4 Brazil 6.04%
5 India 4.43%
6 Russian Federation 3.14%
7 Vietnam 2.89%
8 Argentina 2.26%
9 Poland 1.89%
10 Republic of Korea 1.65%

Top 10 countries from which spam was sent.

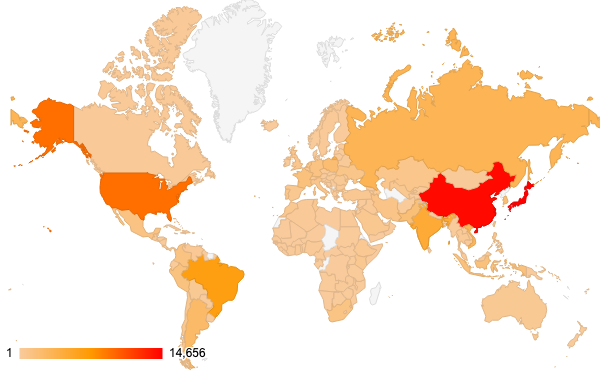

Geographical distribution of spam based on sender IP address.



Malware and phishing

The decrease in the number of all spam, malware and phishing samples seen during the test period translated into a silence among the campaigns linked to certain threat actors as well.

Although the majority of malware emails didn't pose much of a challenge to the tested solutions, the phishing emails were a different matter. No solution managed to block all the emails from the phishing corpus. We continue to see that most of the phishing emails that pass through the email filters are in languages other than English.

Here we describe those samples that managed to evade the detection of most of the tested solutions.



Romanian phishing emails

For both of these samples, the payload wasn't available at the time of our analysis. We mention these samples because most of the tested solutions missed them (eight out of 10 for Sample 1 and five out of 10 for Sample 2).

The following are the indicators of compromise for the two emails:

Sample 1

  • Subject: Tr:
  • From: Spotify <[email protected]>
  • Sender IP address: 209.71.212.29
  • URL from email's body: hxxp://wetangtogether[.]com/readme[.]php#

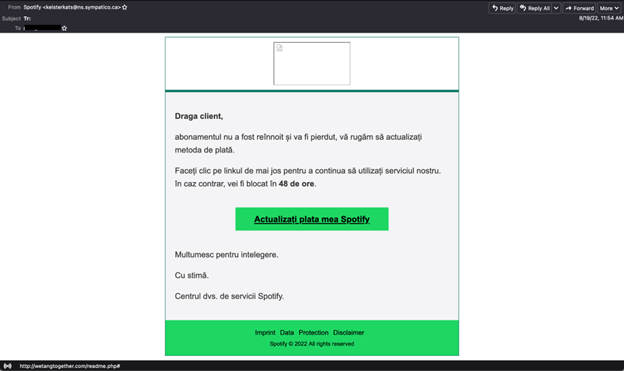

romanian-phish-1.pngRomanian phishing Sample 1.

Sample 2

  • Subject: Оbțіnеțі расhеtul
  • From: Роѕtа <[email protected]>
  • Sender IP address: 104.160.65.34
  • URL domain from email's body: app[.]getresponse[.]com

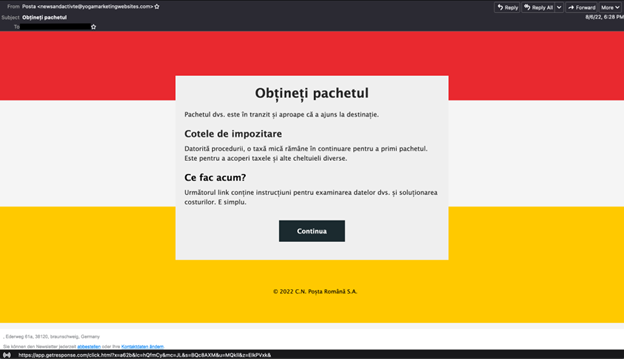

romanian-phish-2.pngRomanian phishing Sample 2.



German banking phishing

This spear-phishing sample was missed by more than half of the tested solutions (six out of 10). It is targeted to a German-speaking audience and we found it only once in the spam corpus, on 17 August.

Unfortunately, in our analysis we didn't get to a malicious payload. However, we considered it worth mentioning and here we list some of the indicators of this phishing email:

  • Subject: Αktuаlіѕіеrеn іhr арр ...
  • From: customer service lNG <[email protected]>
  • Sender IP address: 185.15.192.40
  • URL domains from email's body: deref-gmx[.]net, techfrick[.]com, scc[.]rumbo[.]com

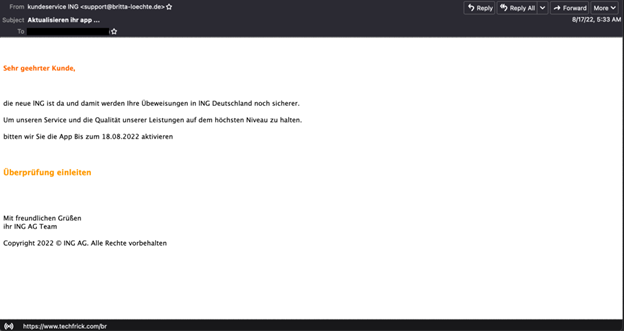

german-banking.pngGerman phishing sample.



Results

The majority of the tested solutions managed to achieve very good spam catch rates, with values exceeding 99%. A better comparison between the solutions can be made by looking at the malware and phishing catch rates, subsets of the spam corpus. Here we highlight the performance of Bitdefender, N-able Mail Assure, SEPPmail and N-able SpamExperts, all with 100% malware catch rate. No solution achieved a 100% catch rate on the phishing corpus, but Bitdefender deserves a mention for only having missed one sample of this kind.

Of the participating full solutions, three – Cleanmail, SEPPmail and Zoho Mail – achieved a VBSpam award, as did the custom configured solution Spamhaus Data Query Service (DQS) + SpamAssassin, while other four – Bitdefender, Fortinet, N-able Mail Assure and N-able SpamExperts – are awarded a VBSpam+ certification.



Bitdefender Security for Mail Servers 3.1.7

SC rate: 99.98%
FP rate:
0.00%
Final score:
99.98
Malware catch rate:
100.00%
Phishing catch rate:
99.96%
Project Honey Pot SC rate:
99.99%
Abusix SC rate:
99.98%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Bitdefender continues its run of VBSpam+ awards with an impressive performance in this test. No malware email passed through its filters, and the product achieved the best phishing catch rate, with only one missed sample. With no ham or newsletter false positives and speed values all in the green, Bitdefender earns another VBSpam+ award.



Cleanmail Domain Gateway

SC rate: 99.94%
FP rate:
0.05%
Final score:
99.71
Malware catch rate:
99.91%
Phishing catch rate:
98.89%
Project Honey Pot SC rate:
99.94%
Abusix SC rate:
99.94%
MXMailData SC rate:
99.87%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Cleanmail easily earns VBSpam certification in this test. The solution achieved higher than 99% spam and malware catch rates, while successfully detecting all the newsletters and missing only one ham email.



Fortinet FortiMail

SC rate: 99.97%
FP rate:
0.00%
Final score:
99.97
Malware catch rate:
99.73%
Phishing catch rate:
99.82%
Project Honey Pot SC rate:
99.95%
Abusix SC rate:
99.98%
MXMailData SC rate:
99.61%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Another VBSpam+ certification is awarded to Fortinet in this test. The higher than 99% catch rates on all the spam, malware and phishing samples, and the lack of both ham and newsletter false positives show Fortinet to be a balanced and reliable solution.



N-able Mail Assure

SC rate: 99.82%
FP rate:
0.00%
Final score:
99.82
Malware catch rate:
100.00%
Phishing catch rate:
98.58%
Project Honey Pot SC rate:
99.61%
Abusix SC rate:
99.85%
MXMailData SC rate:
100.00%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



The third test of 2022 brings N-able Mail Assure its third VBSpam+ certification. It is one of the four products in this test that managed to block all the malware samples. We also highlight the solution's high spam catch rate and the lack of false positives.



N-able SpamExperts

SC rate: 99.82%
FP rate: 0.00%
Final score: 99.82
Malware catch rate: 100.00%
Phishing catch rate: 98.58%
Project Honey Pot SC rate: 99.61%
Abusix SC rate: 99.85%
MXMailData SC rate: 100.00%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



SpamExperts – which is N-able's solution for web hosts and ISPs – is a new entry in this test. On its debut it put in an excellent peformance, checking all the boxes to earn a VBSpam+ award.



Rspamd

SC rate: 97.29%
FP rate: 0.46%
Final score: 94.86
Malware catch rate: 70.00%
Phishing catch rate: 89.28%
Project Honey Pot SC rate: 95.86%
Abusix SC rate: 98.11%
MXMailData SC rate: 62.78%
Newsletters FP rate: 4.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN




Even though Rspamd's scores fall below the certification threshold, the open-source solution impresses once again in this test with a very decent spam catch rate. The malware samples were a challenge, but overall the results are promising.



SEPPmail.cloud Filter

SC rate: 99.98%
FP rate: 0.05%
Final score: 99.61
Malware catch rate: 100.00%
Phishing catch rate: 99.87%
Project Honey Pot SC rate: 99.83%
Abusix SC rate: 100.00%
MXMailData SC rate: 100.00%
Newsletters FP rate: 3.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



In this test we saw SEPPmail scoring the highest spam catch rate and blocking all the malware samples. Only three phishing emails evaded the product's filters and it earns a VBSpam award with ease.



Spamhaus Data Query Service (DQS) + SpamAssassin

SC rate: 99.61%
FP rate: 0.05%
Final score: 99.38
Malware catch rate: 89.39%
Phishing catch rate: 99.69%
Project Honey Pot SC rate: 99.31%
Abusix SC rate: 99.90%
MXMailData SC rate: 85.24%
Newsletters FP rate: 0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



Spamhaus Data Query Service + SpamAssassin is a custom configured solution that integrates the Spamhaus DQS DNSBL service and the free open-source solution SpamAssassin. In this test the solution showed a balanced performance and is awarded a VBSpam certification.



Zoho Mail

SC rate: 99.17%
FP rate:
0.18%
Final score:
98.14
Malware catch rate:
87.71%
Phishing catch rate:
98.76%
Project Honey Pot SC rate:
99.48%
Abusix SC rate:
99.40%
MXMailData SC rate:
83.04%
Newsletters FP rate:
3.1%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN



In this test Zoho Mail earns a VBSpam certification. The solution scored well on the overall spam catch rate, higher than 99%. We continue to see a good performance on the phishing samples as well, with a 98.76% catch rate this time.



Abusix Mail Intelligence

SC rate: 98.69%
FP rate:
0.14%
Final score:
98.01
Malware catch rate:
72.37%
Phishing catch rate:
97.82%
Project Honey Pot SC rate:
97.27%
Abusix SC rate:
99.51%
MXMailData SC rate:
63.43%
Newsletters FP rate:
0.0%

Speed:   10% GREEN 50% GREEN 95% GREEN 98% GREEN




Abusix Mail Intelligence is a set of blocklists that is tested as a partial solution because it has access only to parts of the emails (IP addresses, domains, URLs), which are queried to their DNS zones. With this setup, a spam catch rate of 98.69% and only one ham false positive is very impressive.



Results tables

  True negatives False positives FP rate False negatives True positives SC rate Final score VBSpam
Bitdefender 2197 0 0.00% 24.2 107694.8 99.98% 99.98 vbantispam-plus.gif
Cleanmail Domain Gateway 2196 1 0.05% 69.4 107649.6 99.94% 99.71 vbantispam-pass.gif
FortiMail 2197 0 0.00% 31.2 107687.8 99.97% 99.97 vbantispam-plus.gif
N-able Mail Assure 2197 0 0.00% 197.4 107521.6 99.82% 99.82 vbantispam-plus.gif
N-able SpamExperts 2197 0 0.00% 198.4 107520.6 99.82% 99.82 vbantispam-plus.gif
Rspamd    2187 10 0.46% 2914.6 104804.4 97.29% 94.86
SEPPmail.cloud Filter 2196 1 0.05% 26.6 107692.4 99.98% 99.61 vbantispam-pass.gif
Spamhaus Data Query Service (DQS) + SpamAssassin 2196 1 0.05% 420 107299 99.61% 99.38 vbantispam-pass.gif
Zoho Mail 2193 4 0.18% 889.2 106829.8 99.17% 98.14 vbantispam-pass.gif
Abusix Mail Intelligence* 2194 3 0.14% 1415.8 106303.2 98.69% 98.01 N/A

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solutions and its performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)



  Newsletters Malware Phishing   Project Honey Pot
Abusix MXMailData STDev
False positives FP rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate False negatives SC rate
Bitdefender 0 0.0% 0 100.00% 1 99.96% 2 99.99% 22.2 99.98% 0 100.00% 0.14
Cleanmail Domain Gateway 0 0.0% 2 99.91% 25 98.89% 8.6 99.94% 58.8 99.94% 2 99.87% 0.28
FortiMail 0 0.0% 6 99.73% 4 99.82%  7 99.95%  18.2 99.98%  6 99.61%  0.17
N-able Mail Assure  0 0.0% 0 100.00% 32 98.58%  58 99.61%  139.4  99.85%  0 100.00% 0.5
N-able SpamExperts  0 0.0% 0 100.00% 32 98.58%  58 99.61%  140.4 99.85%  0 100.00% 0.5
Rspamd  4 4.1% 659 70.00%  241 89.28%  611.4  95.86%  1728.2  98.11%  575 62.78%  3.15
SEPPmail.cloud Filter  3 3.1% 0 100.00% 3 99.87%  24.6 99.83%  2 99.998%  0 100.00% 0.17
Spamhaus Data Query Service (DQS) + SpamAssassin 0 0.0% 233 89.39%  7 99.69% 102 99.31%  90 99.90%  228 85.24%  0.97
Zoho Mail 3 3.1% 270 87.71%  28 98.76%  77 99.48%  550.2 99.40%  262 83.04%  1.58
Abusix Mail Intelligence* 0 0.0% 607 72.37% 49 97.82% 402.8 97.27% 448 99.51% 565 63.43% 2.28

The standard deviation of a product is calculated using the set of its hourly spam catch rates.
Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products. None of the queries to the IP blocklist included any information on the attachments; hence its performance on the malware corpus is added purely for information.
(Please refer to the text for full product names and details.)



   Speed
10% 50% 95% 98%
Bitdefender speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Cleanmail Domain Gateway speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
FortiMail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Mail Assure speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
N-able Spam Experts speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Rspamd speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
SEPPmail.cloud Filter speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Spamhaus Data Query Service (DQS) + SpamAssassin speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
Zoho Mail speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg speed-colour-blobs-GREEN.jpg
speed-colour-blobs-GREEN.jpg 0-30 seconds speed-colour-blobs-YELLOW.jpg 30 seconds to two minutes speed-colour-blobs-ORANGE.jpg two minutes to 10 minutes speed-colour-blobs-RED.jpg more than 10 minutes

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
(Please refer to the text for full product names and details.)



Products ranked by final score
Bitdefender 99.98
FortiMail 99.97
N-able Mail Assure 99.82
N-able SpamExperts 99.82
Cleanmail Domain Gateway 99.71
SEPPmail.cloud Filter  99.61
Spamhaus Data Query Service (DQS) + SpamAssassin  99.38
Zoho Mail  98.14
Abusix Mail Intelligence*  98.01
Rspamd  94.86

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.
*This product is a partial solution and its performance should not be compared with that of other products.



Hosted solutions Anti-malware IPv6 DKIM SPF DMARC Multiple MX-records Multiple locations
Cleanmail Domain Gateway Cleanmail
N-able Mail Assure N-able Mail Assure
N-able SpamExperts SpamExperts
SEPPmail.cloud Filter SEPPmail √  √  √   √ √  √
Zoho Mail Zoho

(Please refer to the text for full product names and details.)



Local solutions Anti-malware IPv6 DKIM SPF DMARC Interface
CLI GUI Web GUI API
Bitdefender Bitdefender
FortiMail Fortinet
Rspamd None
Spamhaus Data Query Service (DQS) + SpamAssassin Optional

Spamhaus Data Query Service (DQS) + SpamAssassin is a fully configured solution that integrates Spamhaus DQS on top of SpamAssassin. Spamhaus DQS is not a stand-alone solution but rather a DNSBL service that can be added to MTAs and email security solutions such as SpamAssasssin. The test set up reflects the real-life performance expected from this combined production deployment, not as individual product elements.

(Please refer to the text for full product names and details.)


(Please refer to the text for full product names and details.)



Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver20.

The test ran for 16 days, from 12am on 6 August to 12am on 22 August 2022 (GMT).

The test corpus consisted of 110,057 emails. 107,763 of these were spam, 14,798 of which were provided by Project Honey Pot, 91,420 were provided by Abusix, with the remaining 1,545 spam emails provided by MXMailData. There were 2,197 legitimate emails ('ham') and 97 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

55 emails in the spam corpus were considered 'unwanted' (see the June 2018 report) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 2,197 emails from the spam corpus were found to contain a malicious attachment while 2,249 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command2.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

YELLOW (yellow) = 30 seconds to two minutes



Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.



Footnotes

1 Spamhaus Data Query Service (DQS) + SpamAssassin is a custom solution built on top of the SpamAssassin open-source anti-spam platform.

2 http://www.postfix.org/XCLIENT_README.html.

Download PDF




Latest reviews:

VBSpam comparative review

In the Q3 2022 VBSpam test seven full email security solutions, one custom configured solution, one open-source solution and one blocklist were assembled on the test bench to measure their performance against various streams of wanted, unwanted and…

VBSpam Comparative Review

In the Q2 2022 VBSpam Test seven full email security solutions, one custom configured solution, one open-source solution and two blocklists were assembled on the test bench to measure their performance against various streams of wanted, unwanted and…

VBSpam Comparative Review

In the Q1 2022 VBSpam Test six full email security solutions, one custom configured solution, one open-source solution and two blocklists were assembled on the test bench to measure their performance against various streams of wanted, unwanted and…

VBSpam Comparative Review

In the Q4 2021 VBSpam test the performance of nine full email security solutions, one custom configured solution, one open-source solution and one blocklist was measured against various streams of wanted, unwanted and malicious emails.

VBSpam Comparative Review

In this test the performance of eight full email security solutions, one custom configured solution, one open-source solution and one blocklist was measured against various streams of wanted, unwanted and malicious emails.

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
