(This paper was presented at CanSecWest 2015.)
DLL hijacking is a well known class of attack which was always believed only to affect the Windows OS. However, this paper will show that OS X is similarly vulnerable to dynamic library hijacks. By abusing various features and undocumented aspects of OS X’s dynamic loader, attackers need only to ‘plant’ specially crafted dynamic libraries to have malicious code automatically loaded into vulnerable applications. Using this method, such attackers can perform a wide range of malicious and subversive actions, including stealthy persistence, load-time process injection, security software circumvention, and a Gatekeeper bypass (affording opportunities for remote infection). Since this attack abuses legitimate functionality of the OS, it is challenging to prevent and unlikely to be patched. However, this paper will present techniques and tools that can uncover vulnerable binaries as well as detect if a hijacking has occurred.
Before detailing the dynamic library (dylib) hijacking attack on OS X, dynamic link library (DLL) hijacking on Windows will briefly be reviewed. As the two attacks are conceptually quite similar, examining the well-understood Windows attack can help in gaining an understanding of the former.
DLL hijacking on Windows is best explained by Microsoft:
‘When an application dynamically loads a dynamic link library (DLL) without specifying a fully qualified path name, Windows tries to locate the DLL by searching a well-defined set of directories. If an attacker gains control of one of the directories, they can force the application to load a malicious copy of the DLL instead of the DLL that it was expecting.’

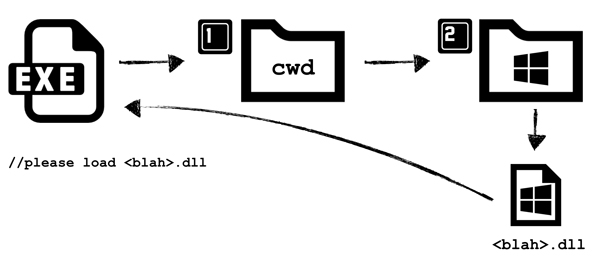

To reiterate, the default search behaviour of the Windows loader is to search various directories (such as the application’s directory or the current working directory) before the Windows system directory. This can be problematic if an application attempts to load a system library via an insufficiently qualified path (i.e. just by its name). In such a scenario, an attacker may ‘plant’ a malicious DLL (the name of which matches that of the legitimate system DLL) in one of the primary search directories. With this malicious DLL in place, the Windows loader will find the attacker’s library before the legitimate DLL and blindly load it into the context of the vulnerable application.
DLL hijacking attacks initially gained notoriety in 2010 and quickly grabbed the attention of both the media and malicious attackers. Also known as ‘binary planting’, ‘insecure library loading’ or ‘DLL preloading’, the discovery of this vulnerability is often attributed to H.D. Moore , . However, the NSA was actually the first to note this flaw, 12 years prior to Moore, in 1998. In the NSA’s unclassified ‘Windows NT Security Guidelines’, the organization both describes and warns of DLL hijacking:
‘It is important that penetrators can’t insert a “fake” DLL in one of these directories where the search finds it before a legitimate DLL of the same name.’
To an attacker, DLL hijacking affords many useful scenarios. For example, such attacks can allow a malicious library to stealthily be persisted (without modifying the registry or other components of the OS), privileges to be escalated, and even provides the means for remote infection.
Malware authors were fairly quick to realize the benefits of DLL hijacking. In a blog post entitled ‘What the fxsst?’  , Mandiant researchers described how they had uncovered various unrelated malware samples all named ‘fxsst.dll’. Upon closer inspection, they found that the samples were all exploiting a DLL hijacking vulnerability in the Windows shell (Explorer.exe), that provided a stealthy method of persistence. Specifically, as Explorer.exe was installed in C: \Windows, planting a library named fxsst.dll in the same directory would result in the persistence of the malicious DLL as the loader searched the application’s directory before the system directory where the legitimate fxsst.dll lived.

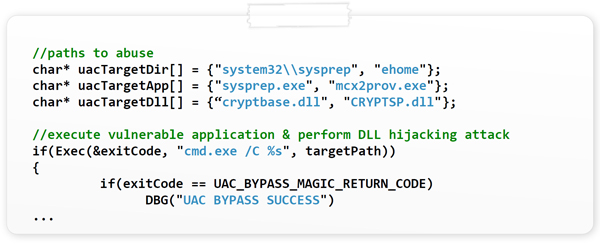

Another example of malware using a DLL hijack can be found within the leaked source code for the banking trojan ‘Carberp’ . The source code shows the malware bypassing User Account Control (UAC) via a DLL hijack of sysprep.exe (see Figure 3). This binary is an auto-elevated process, meaning that it requires no UAC prompt to gain elevated status. Unfortunately, it was found to be vulnerable to a DLL hijacking attack and would load a maliciously planted DLL (named cryptbase.dll) into its elevated process context .
These days, DLL hijacking on Windows is somewhat uncommon. Microsoft was swift to respond to attacks, patching vulnerable applications and detailing how others could avoid this issue (i.e. simply by specifying an absolute, or fully qualified path for imported DLLs) . Moreover, OS level mitigations were introduced, which if enabled via the SafeDllSearchMode and/or CWDIllegalInDllSearch registry keys, stop the majority of DLL hijackings generically.
It has always been assumed that dynamic library hijacking was a Windows-only problem. However, as one astute StackOverflow user pointed out in 2010, ‘any OS which allows for dynamic linking of external libraries is theoretically vulnerable to this’ . It took until 2015 for him to be proved correct – this paper will reveal an equally devastating dynamic library hijack attack affecting OS X.
The goal of the research presented here was to determine whether OS X was vulnerable to a dynamic library attack. Specifically, the research sought to answer the question: could an attacker plant a malicious OS X dynamic library (dylib) such that the OS’s dynamic loader would load it automatically into a vulnerable application? It was hypothesized that, much like DLL hijacking on Windows, such an attack on OS X would provide an attacker with a myriad of subversive capabilities. For example, stealthy persistence, load-time process injection, security software circumvention, and perhaps even ‘remote’ infection.
It should be noted that several constraints were placed upon this undertaking. First, success was constrained by disallowing any modification to the system – except for the creation of files (and if necessary folders). In other words, the research ignored attack scenarios that required the subverting of existing binaries (e.g. patching) or modifications to existing OS configuration files (e.g. ‘auto-run’ plists, etc.). As such attacks are well known and trivial both to prevent and to detect, they were ignored. The research also sought a method of hijack that was completely independent of the user’s environment. OS X provides various legitimate means to control the environment in a manner that could coerce the loader to load malicious libraries automatically into a target process. These methods, such as setting the DYLD_INSERT_LIBRARIES environment variable, are user-specific and, again, well known and easy to detect. As such, they were of little interest and were ignored.
The research began with an analysis of the OS X dynamic linker and loader, dyld. This binary, found within /usr/bin, provides standard loader and linker functionality including finding, loading and linking dynamic libraries.
As Apple has made dyld open source , analysis was fairly straightforward. For example, reading the source code provided a decent understanding of dyld’s actions as an executable is loaded and its dependent libraries are loaded and linked in. The following briefly summarizes the initial steps taken by dyld (focusing on those that are relevant to the attack described in this paper):
As any new process is started, the kernel sets the user-mode entry point to __dyld_start (dyldStartup.s). This function simply sets up the stack then jumps to dyldbootstrap::start(), which in turn calls the loader's _main().
Dyld’s _main() function (dyld.cpp) invokes link(), which then calls an ImageLoader object’s link() method to kick off the linking process for the main executable.
The ImageLoader class (ImageLoader.cpp) exposes many functions that dyld calls in order to perform various binary image loading logic. For example, the class contains a link() method. When called, this invokes the object’s recursiveLoadLibraries() method to perform the loading of all dependent dynamic libraries.
The ImageLoader’s recursiveLoadLibraries() method determines all required libraries and invokes the context.loadLibrary() function on each. The context object is simply a structure of function pointers that is passed around between methods and functions. The loadLibrary member of this structure is initialized with the libraryLocator() function (dyld.cpp), which simply calls the load() function.
The load() function (dyld.cpp) calls various helper functions within the same file, named loadPhase0() through to loadPhase5(). Each function is responsible for handling a specific task of the load process, such as resolving paths or dealing with environment variables that can affect the load process.
After loadPhase5(), the loadPhase6() function finally loads (maps) the required dylibs from the file system into memory. It then calls into an instance of the ImageLoaderMachO class in order to perform Mach O specific loading and linking logic on each dylib.
With a basic understanding of dyld’s initial loading logic, the research turned to hunting for logic that could be abused to perform a dylib hijack. Specifically, the research was interested in code in the loader that didn’t error out if a dylib wasn’t found, or code that looked for dylibs in multiple locations. If either of these scenarios was realized within the loader, it was hoped that an OS X dylib hijack could be performed.

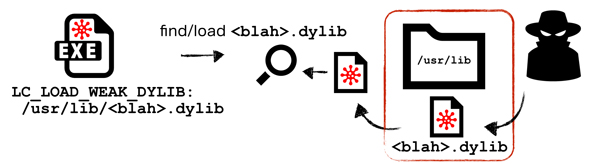

The initial scenario was investigated first. In this case, it was hypothesized that if the loader could handle situations where a dylib was not found, an attacker (who could identify such situations) could place a malicious dylib in this presumed location. From then on, the loader would now ‘find’ the planted dylib and blindly load the attacker’s malicious code.

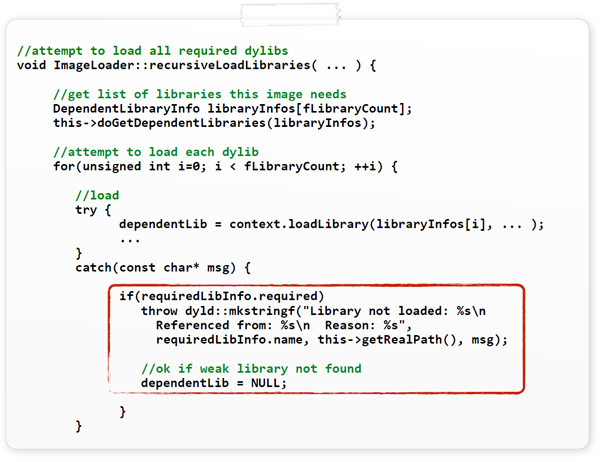

Recall that the loader calls the ImageLoader class’s recursiveLoadLibraries() method to both find and load all required libraries. As shown in Figure 4, the loading code is wrapped in a try/catch block to detect dylibs that fail to load.
Unsurprisingly, there is logic to throw an exception (with a message) if a library fails to load. Interestingly though, this exception is only thrown if a variable named ‘required’ is set to true. Moreover, the comment in the source code indicates that failure to load ‘weak’ libraries is OK. This seems to indicate that some scenario exists where the loader is OK with missing libraries – perfect!

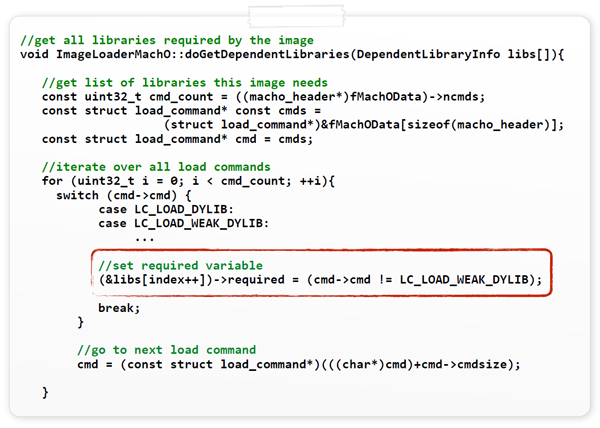

Digging deeper into the loader’s source code revealed where this ‘required’ variable is set. Specifically, the doGetDependentLibraries() method of the ImageLoaderMacho class parses the load commands (described below) and sets the variable based on whether or not the load command is of type LC_LOAD_WEAK_DYLIB.

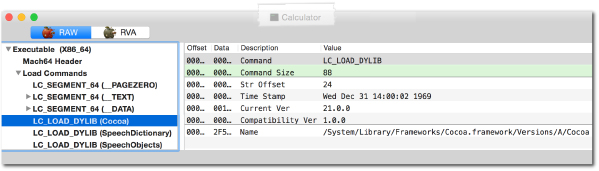

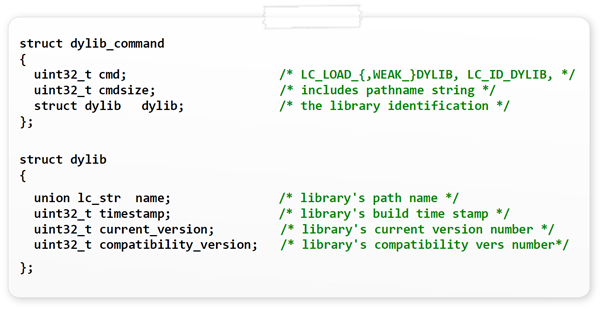

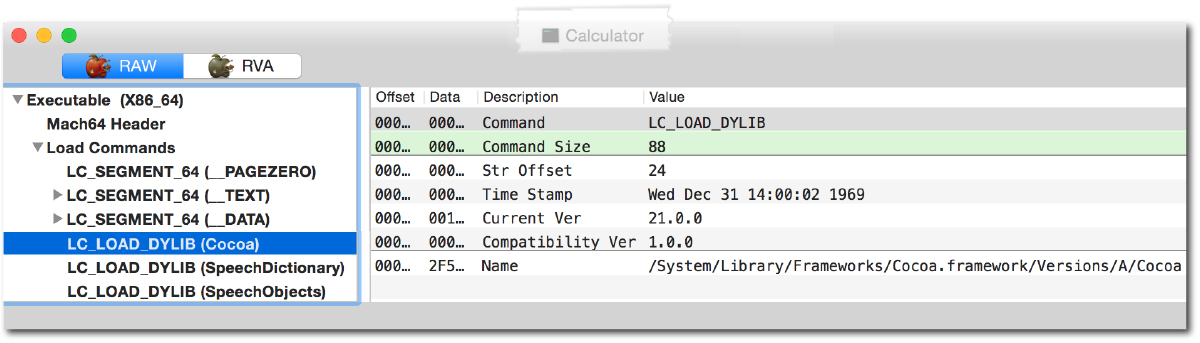

Load commands are an integral component of the Mach-O file format (OS X’s native binary file format). Embedded immediately following the Mach-O header, they provide various commands to the loader. For example, there are load commands to specify the memory layout of the binary, the initial execution state of the main thread, and information about the dependent dynamic libraries for the binary. To view the load commands of a compiled binary, a tool such as MachOView  or /usr/bin/otool (with the -l command-line flag) can be used (see Figure 6).
(Click here to view a larger version of Figure 6.)
The code in Figure 5 shows the loader iterating over all the load commands within a binary, looking for those that specify a dylib import. The format of such load commands (e.g. LC_LOAD_DYLIB, LC_LOAD_WEAK_DYLIB, etc.) can be found in the mach-o/loader.h file.
For each dylib that an executable was dynamically linked against, it will contain an LC_LOAD_* (LC_LOAD_DYLIB, LC_LOAD_WEAK_DYLIB, etc.) load command. As the loader code in Figure 4 and Figure 5 illustrates, LC_LOAD_DYLIB load commands specify a required dylib, while libraries imported via LC_LOAD_WEAK_DYLIB are optional (i.e. ‘weak’). In the case of the former (LC_LOAD_DYLIB), an exception will be thrown if the required dylib is not found, causing the loader to abort and terminate the process. However, in the latter case (LC_LOAD_WEAK_DYLIB), the dylib is optional. If such a ‘weak’ dylib is not found, no harm is done, and the main binary will still be able to execute.

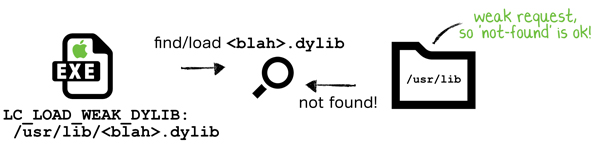

This loader logic fulfilled the first hypothetical hijack scenario, and as such, provided a dylib hijack attack on OS X. Namely, as illustrated in Figure 9, if a binary specifies a weak import that is not found, an attacker can place a malicious dylib in this presumed location. From then on, the loader will ‘find’ the attacker’s dylib and blindly load this malicious code into the process space of the vulnerable binary.
Recall that another hijack attack was hypothesized if a scenario existed where the loader searched for dynamic libraries in multiple locations. In this case, it was thought that an attacker would be able to place a malicious dylib in one of the primary search directories (if the legitimate dylib was found elsewhere). It was hoped that the loader would then find the attacker’s malicious dylib first (before the legitimate one), and thus naively load the attacker’s malicious library.
On OS X, load commands such as LC_LOAD_DYLIB always specify a path to the dynamic library (as opposed to Windows, where just the name of the library may be provided). Because a path is provided, dyld generally does not need to search various directories to find the dynamic library. Instead, it can simply go directly to the specified directory and load the dylib. However, analysis of dyld’s source code uncovered a scenario in which this generality did not hold.
Looking at the loadPhase3() function in dyld.cpp revealed some interesting logic, as shown in Figure 10.

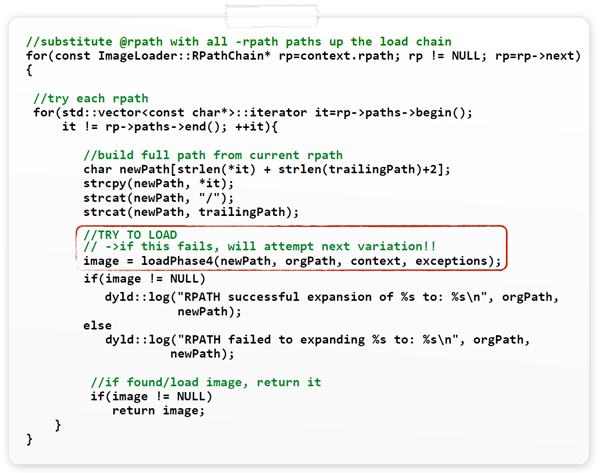

Dyld will iterate over an rp->paths vector, dynamically building paths (held within the ‘newPath’ variable) which are then loaded via the loadPhase4() function. While this does seem to fulfil the requirement of the second hijack scenario (i.e. dyld looking in multiple locations for the same dylib), a closer examination was required.
The comment on the first line of dyld’s source in Figure 10 mentions the term ‘@rpath.’ According to Apple documentation, this is a special loader keyword (introduced in OS X 10.5, Leopard) that identifies a dynamic library as a ‘run-path-dependent library’ . Apple explains that a run-path-dependent library ‘is a dependent library whose complete install name (path) is not known when the library is created’ . Other online documentation such as  and  provides more detail, describing the role of these libraries and explaining how the @rpath keyword enables: ‘frameworks and dynamic libraries to finally be built only once and be used for both system-wide installation and embedding without changes to their install names, and allowing applications to provide alternate locations for a given library, or even override the location specified for a deeply embedded library’ .
While this feature allows software developers to deploy complex applications more easily, it can also be abused to perform a dylib hijack. This is true since in order to make use of run-path-dependent libraries, ‘an executable provides a list of run-path search paths, which the dynamic loader traverses at load time to find the libraries’ . This is realized in code in various places within dyld, including the code snippet that was presented in Figure 10.
Since run-path-dependent libraries are relatively novel and somewhat unknown, it seemed prudent to provide an example of building both a legitimate run-path-dependent library and a sample application that links against it.

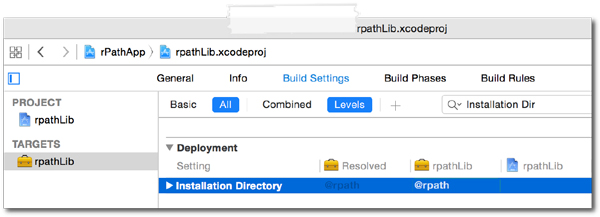

A run-path-dependent library is a normal dylib whose install name is prefixed with ‘@rpath’. To create such a library in Xcode one can simply set the dylib’s installation directory to ‘@rpath’, as shown in Figure 11.

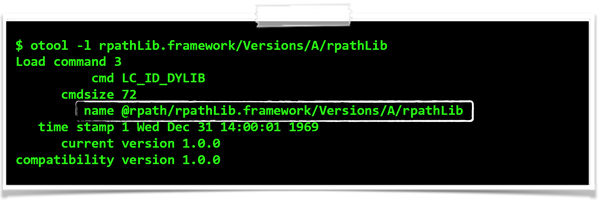

Once the run-path-dependent library was compiled, examination of the LC_ID_DYLIB load command (which contains identifying information about the dylib) showed the run-path of the dylib. Specifically, the ‘name’ (path) within the LC_ID_DYLIB load command contained the dylib’s bundle (rpathLib.framework/ Versions/A/rpathLib), prefixed with the ‘@rpath’ keyword (see Figure 12).
Building an application that linked against a run-path-dependent library was fairly straightforward as well. First, the run-path-dependent library was added to the ‘Link Binary With Libraries’ list in Xcode. Then a list of run-path search directories was added to the ‘Runpath Search Paths’ list. As will be shown, these search directories are traversed by the dynamic loader at load time in order to locate the run path-dependent libraries.

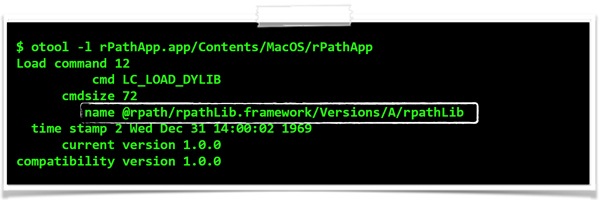

Once the application was built, dumping its load commands revealed various commands associated with the run-path library dependency. A standard LC_LOAD_DYLIB load command was present for the dependency on the run-path-dependent dylib, as shown in Figure 14.
In Figure 14, note that the install name (i.e. path) to the run path-dependent dylib is prefixed with ‘@rpath’ and matches the name value from the LC_ID_DYLIB load command of the run-path-dependent dylib (see Figure 12). This application’s embedded LC_LOAD_DYLIB load command with the run-path-dependent dylib tells the loader, ‘I depend on the rpathLib dylib, but when built, I didn’t know exactly where it would be installed. Please use my embedded run-path search paths to find it and load it!’

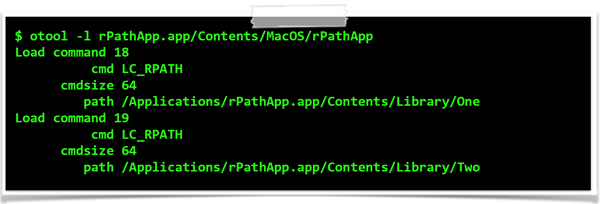

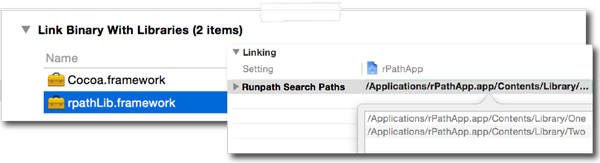

The run-path search paths that were entered into the ‘Runpath Search Paths’ list in Xcode generated LC_RPATH load commands – one for each search directory. Dumping the load commands of the compiled application revealed the embedded LC_RPATH load commands, as shown in Figure 15.
With a practical understanding of run-path-dependent dylibs and an application that linked against one, it was easy to understand dyld’s source code which was responsible for handling this scenario at load time.
When an application is launched, dyld will parse the application’s LC_LOAD_* load commands in order to load and link all dependent dylibs. To handle run-path-dependent libraries, dyld performs two distinct steps: it extracts all embedded run-path search paths and then uses this list to find and load all run-path-dependent libraries.

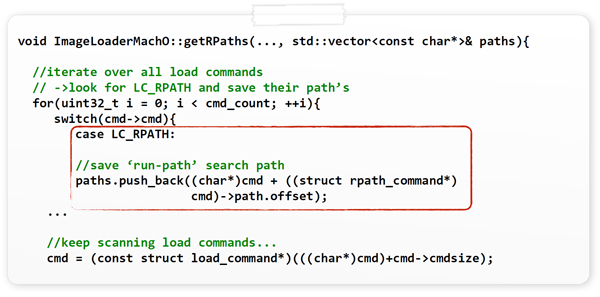

In order to extract all embedded run-path search paths, dyld invokes the getRPaths() method of the ImageLoader class. This method (invoked by the recursiveLoadLibraries() method) simply parses the application for all LC_RPATH load commands. For each such load command, it extracts the run-path search path and appends it to a vector (i.e. a list), as shown in Figure 16.

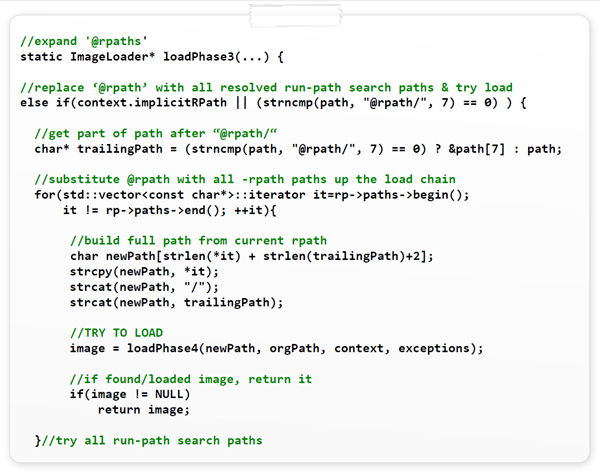

With a list of all embedded run-path search paths, dyld can now ‘resolve’ all dependent run-path-dependent libraries. This logic is performed in the loadPhase3() function in dyld.cpp. Specifically, the code (shown in Figure 17) checks to see if a dependent library’s name (path) is prefixed with the ‘@rpath’ keyword. If so, it iterates over the list of extracted run-path search paths, replacing the ‘@rpath’ keyword in the import with the current search path. Then it attempts to load the dylib from this newly resolved directory.
It is important to note that the order of the directories that dyld searches is deterministic and matches the order of the embedded LC_RPATH load commands. Also, as is shown in the code snippet in Figure 17, the search continues until the dependent dylib is found or all paths have been exhausted.

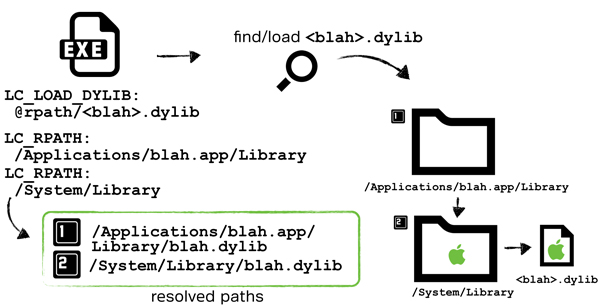

Figure 18 illustrates this search conceptually. The loader (dyld) can been seen searching the various embedded run-path search paths in order to find the required run-path-dependent dylib. Note that in this example scenario, the dylib is found in the second (i.e. non-primary) search directory (see Figure 18).
The astute reader will recognize that this loader logic opens up yet another avenue for a dylib hijack attack. Specifically, if an application is linked against a run-path-dependent library, has multiple embedded run-path search paths, and the run-path-dependent library is not found in a primary search path, an attacker can perform a hijack. Such a hijack may be accomplished simply by ‘planting’ a malicious dylib into any of the primary run-path search paths. With the malicious dylib in place, any time the application is subsequently run, the loader will find the malicious dylib first, and load it blindly (see Figure 19).
To summarize the findings so far: an OS X system is vulnerable to a hijacking attack given the presence of any application that either:
Contains an LC_LOAD_WEAK_DYLIB load command that references a non-existent dylib.
Contains both an LC_LOAD*_DYLIB load command that references a run-path-dependent library (‘@rpath’) and multiple LC_RPATH load commands, with the run-path-dependent library not found in a primary run-path search path.
The remainder of this paper will first walk through a complete dylib hijack attack, then present various attack scenarios (persistence, load-time process injection, ‘remote’ infection etc.), before concluding with some possible defences to counter such an attack.
In order to assist the reader in gaining a deeper understanding of dylib hijacking, it seems prudent to detail the trials, errors, and ultimate success of a hijack attack. Armed with this knowledge it will be trivial to understand attack automation, attack scenarios, and practical defences.
Recall the previously described sample application (‘rPathApp.app’) that was created in order to illustrate linking against a run-path-dependent dylib. This application will be the target of the hijack.
A dylib hijack is only possible against a vulnerable application (that is to say, one that fulfils either of the two previously described hijack conditions). Since the example application (rPathApp.app) links against a run-path-dependent dylib, it may be vulnerable to the second hijack scenario. The simplest way to detect such a vulnerability is to enable debug logging in the loader, then simply run the application from the command line. To enable such logging, set the DYLD_PRINT_RPATHS environment variable. This will cause dyld to log its @rpath expansions and dylib loading attempts. Viewing this output should quickly reveal any vulnerable expansions (i.e. a primary expansion that points to a non-existent dylib), as shown in Figure 20.
Figure 20 shows the loader first looking for a required dylib (rpathLib) in a location where it does not exist. As was shown in Figure 19, in this scenario, an attacker could plant a malicious dylib in this primary run-path search path and the loader will then load it blindly.

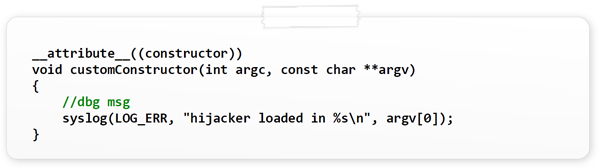

A simple dylib was created to act as a malicious hijacker library. In order to gain automatic execution when loaded, the dylib implemented a constructor function. Such a constructor is executed automatically by the operating system when the dylib is loaded successfully. This is a nice feature to make use of, since generally code within a dylib isn’t executed until the main application calls into it via some exported function.
Once compiled, this dylib was renamed to match the target (i.e. legitimate) library: rpathlib. Following this, the necessary directory structure (Library/One/rpathLib.framework/Versions/A/) was created and the ‘malicious’ dylib was copied in. This ensured that whenever the application was launched, dyld would now find (and load) the hijacker dylib during the search for the run-path-dependent dylib.

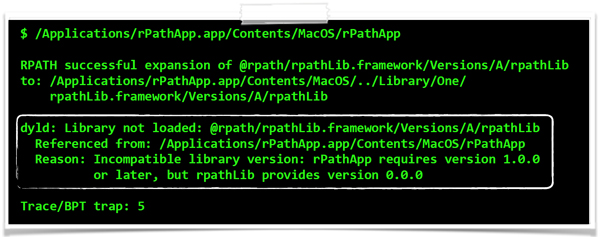

Unfortunately, this initial hijack attempt failed and the application crashed miserably, as shown in Figure 23.
The good news, though, was that the loader found and attempted to load the hijacker dylib (see the ‘RPATH successful expansion…’ log message in Figure 23). And although the application crashed, this was preceded by an informative and verbose exception, thrown by dyld. The exception seemed self explanatory: the version of the hijacker dylib was not compatible with the required (or expected) version. Digging into the loader’s source code revealed the code that triggered this exception, as shown in Figure 24.

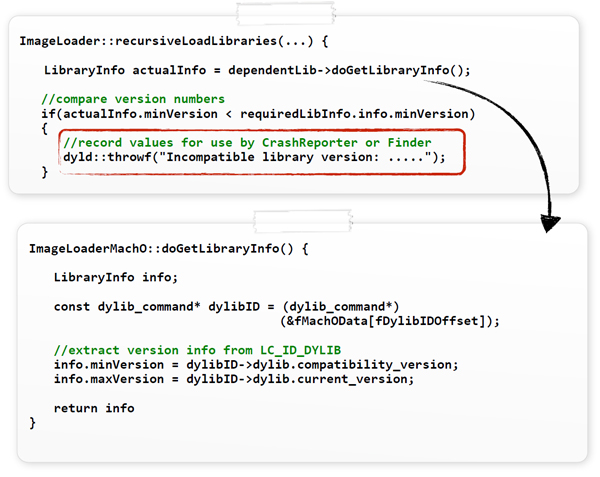

As can be seen, the loader invokes the doGetLibraryInfo() method to extract compatibility and current version numbers from the LC_ID_DYLIB load command of the library that is being loaded. This extracted compatibility version number (‘minVersion’) is then checked against the version that the application requires. If it is too low, an incompatibility exception is thrown.

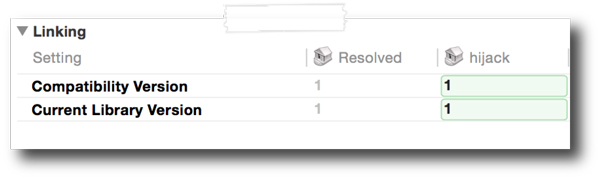

It was quite trivial to fix the compatibility issue (and thus prevent the exception) by updating the version numbers in Xcode, and then recompiling, as shown in Figure 25.

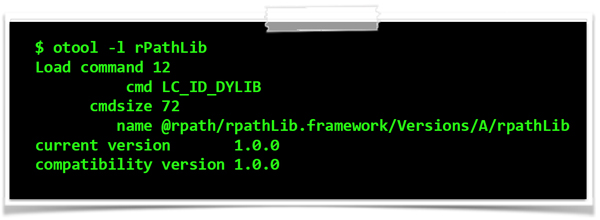

Dumping the LC_ID_DYLIB load command of the recompiled hijacker dylib confirmed the updated (and now compatible) version numbers, as shown in Figure 26.

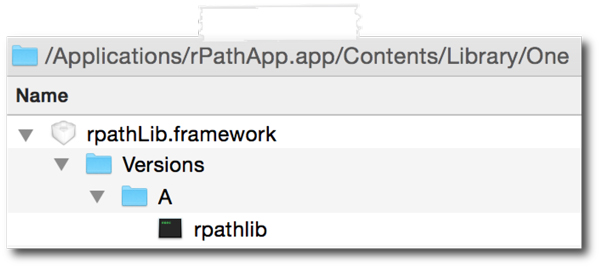

The updated hijacker dylib was re-copied into the application’s primary run-path search directory. Relaunching the vulnerable application again showed the loader ‘finding’ the hijacker dylib and attempting to load it. Alas, although the dylib was now seen as compatible (i.e. the version number checks passed), a new exception was thrown and the application crashed once again, as shown in Figure 27.

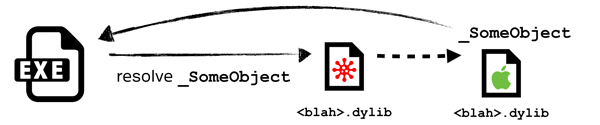

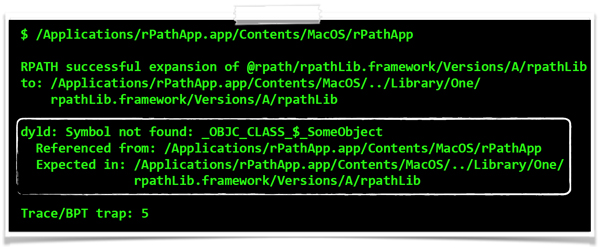

Once again, the exception was quite verbose, explaining exactly why the loader threw it, and thus killed the application. Applications link against dependent libraries in order to access functionality (such as functions, objects, etc.) that are exported by the library. Once a required dylib is loaded into memory, the loader will attempt to resolve (via exported symbols) the required functionality that the dependent library is expected to export. If this functionality is not found, linking fails and the loading and linking process is aborted, thus crashing the process.
There were various ways to ensure that the hijacker dylib exported the correct symbols, such that it would be fully linked in. One naive approach would have been to implement and export code directly within the hijacker dylib to mimic all the exports of the target (legitimate) dylib. While this would probably have succeeded, it seemed complex and dylib specific (i.e. targeting another dylib would have required other exports). A more elegant approach was simply to instruct the linker to look elsewhere for the symbols it required. Of course, that elsewhere was the legitimate dylib. In this scenario, the hijacker dylib would simply acts as a proxy or ‘re-exporter’ dylib, and as the loader would follow its re-exporting directives, no linker errors would be thrown.

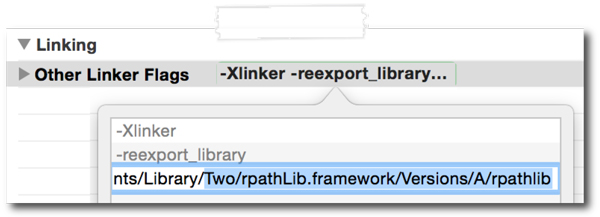

It took some effort to get the re-exportation working seamlessly. The first step was to return to Xcode and add several linker flags to the hijacker dylib project. These flags included ‘-Xlinker’, ‘reexport_library’, and then the path to the target library which contained the actual exports that the vulnerable application was dependent upon.

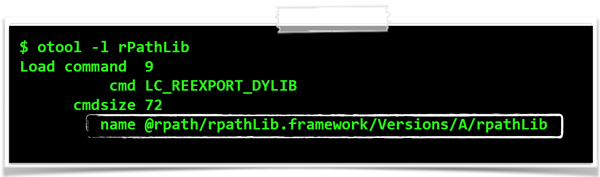

These linker flags generated an embedded LC_REEXPORT_DYLIB load command that contained the path to the target (legitimate) library, as shown in Figure 30.
However, all was not well. Since the re-export target of the hijacker dylib was a run-path-dependent library, the name field in the embedded LC_REEXPORT_DYLIB (extracted from the legitimate dylib’s LC_ID_DYLIB load command) began with ‘@rpath’. This was problematic since, unlike LC_LOAD*_DYLIB load commands, dyld does not resolve run-path-dependent paths in LC_REEXPORT_DYLIB load commands. In other words, the loader will try to load ‘@rpath/rpathLib.framework/Versions/A/rpathLib’ directly from the file system. This, of course, would clearly fail.

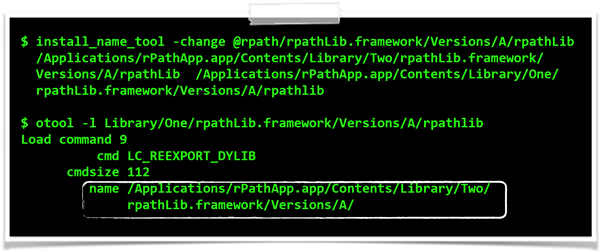

The solution was to resolve the embedded ‘@rpath’ path, providing the full path of the target library in the LC_REEXPORT_DYLIB load command. This was accomplished with one of Apple’s developer tools: install_name_tool. To update the embedded install name (path) in the LC_REEXPORT_DYLIB load command, the tool was executed with the -change flag, the existing name (within the LC_REEXPORT_DYLIB), the new name, and finally the path to the hijacker dylib, as shown in Figure 31.

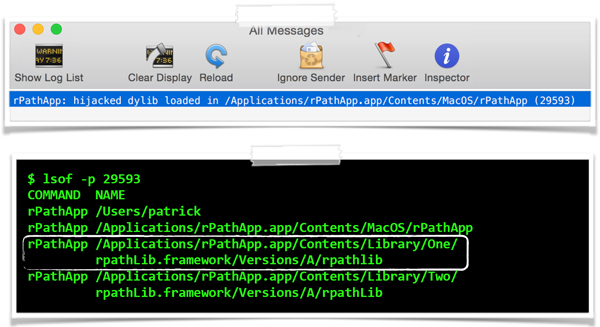

With the path in the LC_REEXPORT_DYLIB load command updated correctly, the hijacked dylib was re-copied into the application’s primary run-path search directory, and then the application was re-executed. As shown in Figure 32, this finally resulted in success.
To summarize: since the rPathApp application linked against a run-path-dependent library which was not found in the initial run-path search directory, it was vulnerable to a dylib hijack attack. Planting a specially compatible malicious dylib in the initial search path directory caused the loader to load the hijacker dylib blindly each time the application was executed. Since the malicious dylib contained the correct versioning information as well as re-exporting all symbols to the legitimate dylib, all the required symbols were resolved, thus ensuring no functionality within the application was lost or broken.
With a solid understanding of dylib hijacking on OS X behind us, it is now time to illustrate some real-life attack scenarios and provide some practical defences.
Advanced adversaries understand the importance of automating as many components of an attack as possible. Such automation increases scale and efficiency, freeing the attacker to focus on more demanding or complex aspects of the attack.
The first component of the hijack attack that was automated was the discovery of vulnerable applications. A Python script, dylibHijackScanner.py (available for download at ), was created to accomplish this task. After gathering either a list of running processes or all executables on the file system, the script intelligently parses the binaries’ Mach-O headers and load commands. To detect binaries that may be hijacked via weak dylibs, the script looks for LC_LOAD_WEAK_DYLIB load commands that reference non-existent dylibs. Automatically detecting binaries that may be hijacked due to non-existent @rpath’d imports was a little more complex. First, the script looks for a binary with at least one LC_LOAD*_DYLIB load command that references a run-path-dependent dylib. If such a load command is found, the script continues parsing the binary’s load commands looking for multiple LC_RPATHs. In the case that both these prerequisites hold true, the script checks to see whether the run-path-dependent library import is found in a primary run-path search path. If the library does not exist, the script alerts the user that the binary is vulnerable. Executing the scanner script revealed a surprising number of vulnerable applications, including (as expected) the vulnerable test application, rPathApp.app.

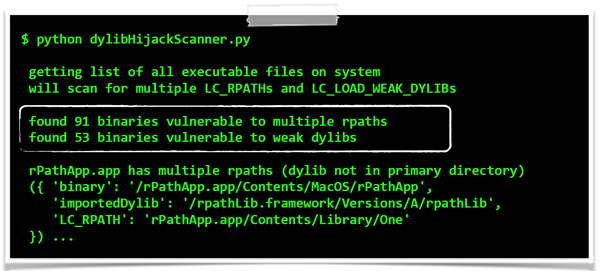

As can be seen in Figure 33, the scanner script found nearly 150 vulnerable binaries just on the author’s work laptop! Interestingly, the majority of vulnerable applications fell into the more complex (from a prerequisite standpoint) ‘multiple rpath’ category. Due to space constraints, the full list of vulnerable applications cannot be shown here. However, Table 1 lists several of the more widespread or well-recognized applications that were found by the scanner script to be vulnerable to a dylib hijack.
|iCloud Photos||Apple||rpath import|
|Word||Microsoft||rpath & weak import|
|Excel||Microsoft||rpath & weak import|
|Google Drive||rpath import|
|GPG Keychain||GPG Tools||rpath import|
|Dropbox (garcon)||Dropbox||rpath import|
Table 1. Common vulnerable applications.
With an automated capability to uncover vulnerable applications, the next logical step was to automate the creation of compatible hijacker dylibs. Recall that two components of the hijacker dylib had to be customized in order to perform a hijack successfully. First, the hijacker dylib’s versioning numbers had to be compatible with the legitimate dylib. Second (in the case of the rpath hijack), the hijacker dylib also had to contain a re-export (LC_REEXPORT_DYLIB) load command that pointed to the legitimate dylib, ensuring that all required symbols were resolvable.
It was fairly straightforward to automate the customization of a generic dylib to fulfil these two prerequisites. A second Python script, createHijacker.py (also available for download at ), was created to perform this customization. First, the script finds and parses the relevant LC_ID_DYLIB load command within the target dylib (the legitimate dylib which the vulnerable application loads). This allows the necessary compatibility information to be extracted. Armed with this information, the hijacker dylib is similarly parsed, until its LC_ID_DYLIB load command is found. The script then updates the hijacker’s LC_ID_DYLIB load command with the extracted compatibility information, thus ensuring a precise compatibility versioning match. Following this, the re-export issue is addressed by updating the hijacker dylib’s LC_REEXPORT_DYLIB load command to point to the target dylib. While this could have been achieved by updating the LC_REEXPORT_DYLIB load command manually, it proved far easier simply to execute the install_name_tool command.

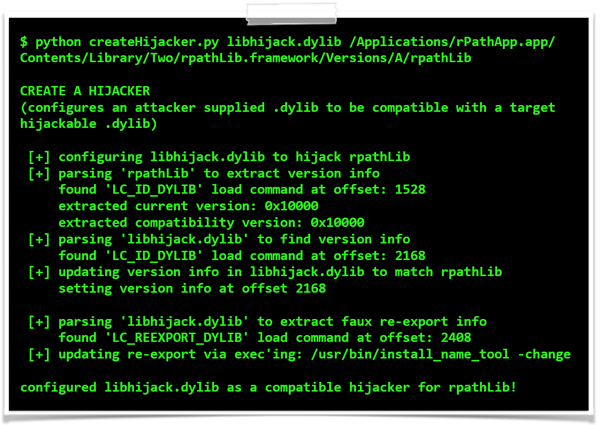

Figure 34 shows the Python script automatically configuring a generic hijacker dylib in order to exploit the vulnerable example application, rpathApp.app.
Dylib hijacking can be used to perform a wide range of nefarious actions. This paper covers several of these, including persistence, load-time process injection, bypassing security products, and even a Gatekeeper bypass. These attacks, though highly damaging, are all realized simply by planting a malicious dylib which abuses legitimate functionality provided by the OS loader. As such, they are trivial to accomplish yet unlikely to be ‘patched out’ or even detected by personal security products.
Using dylib hijacking to achieve stealthy persistence is one of the most advantageous uses of the attack. If a vulnerable application is started automatically whenever the system is rebooted or the user logs in, a local attacker can perform a persistent dylib hijack to gain automatic execution of malicious code. Besides a novel persistence mechanism, this scenario affords the attacker a fairly high level of stealth. First, it simply requires the planting of a single file – no OS components (e.g. startup configuration files or signed system binaries) are modified. This is important since such components are often monitored by security software or are trivial to verify. Second, the attacker’s dylib will be hosted within the context of an existing trusted process, making it difficult to detect as nothing will obviously appear amiss.
Of course, gaining such stealthy and elegant persistence requires a vulnerable application that is automatically started by the OS. Apple’s iCloud Photo Stream Agent (/Applications/iPhoto.app/Contents/Library/LoginItems/ PhotoStreamAgent.app) is started automatically whenever a user logs in, in order to sync local content with the cloud. As luck would have it, the application contains multiple run-path search directories and several @rpath imports that are not found in the primary run-path search directory. In other words, it is vulnerable to a dylib hijack attack.

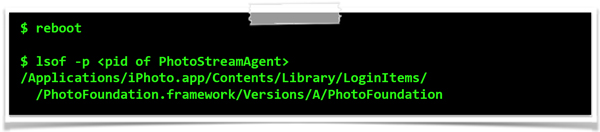

Using the createHijacker.py script, it was trivial to configure a malicious hijacker dylib to ensure compatibility with the target dylib and application. It should be noted that in this case, since the vulnerable import (‘PhotoFoundation’) was found within a framework bundle, the same bundle structure was recreated in the primary run-path search directory (/ Applications/iPhoto.app/Contents/Library/LoginItems/). With the correct bundle layout and malicious hijacker dylib (renamed as ‘PhotoFoundation’) placed within the primary run-path search directory, the loader found and loaded the malicious dylib whenever the iCloud Photo Stream Agent was started. Since this application was executed by the OS, the hijacker dylib was stealthily and surreptitiously persisted across reboots.
As a final note on persistence, if no vulnerable applications are found to be started automatically by the OS, any vulnerable application commonly started by the user (such as a browser, or mail client) may be targeted as well. Alternatively, a legitimate vulnerable application could easily be made persistent in a variety of ways (for example registering it as a Login Item, etc.), then persistently exploited. Although this latter scenario increases the visibility of the attack, the attacker dylib would, of course, prevent any UI from being displayed. Thus, it’s unlikely that the majority of users would notice a legitimate (Apple) binary automatically being started (and exploited) in the background.
Process injection, or coercing an external process into loading a dynamic library, is another useful attack scenario of dylib hijacking. In the context of this paper, ‘injection’ refers to load-time injection (i.e. whenever the process is started) as opposed to run-time injection. While the latter is arguably more powerful, the former is far simpler and often achieves the same level of damage.
Using dylib hijacking to coerce an external process into persistently loading a malicious dylib is a powerful and stealthy technique. As with the other dylib hijack attack scenarios, it does not require any modifications to OS components or binaries (e.g. patching the target process’s on-disk binary image). Moreover, since the planted dylib will persistently and automatically be loaded into the target process space each time the process is started, an attack no longer needs a separate monitoring component (to detect when the target process is started, then inject a malicious dylib). Also, since the attacker simply requires a malicious hijacker dylib to be planted, it neatly side-steps the complexities of run-time process injection. Finally, as this injection technique abuses legitimate functionality provided by the OS loader, it is unlikely to be detected by personal security products (which often attempt to prevent remote process injection by monitoring ‘inter-process’ APIs).
Xcode is Apple's ‘Integrated Development Environment’ (IDE) application. It is used by developers to write both OS X and iOS applications. As such, it is a juicy target for an advanced adversary who may wish to inject code into its address space to surreptitiously infect the developer’s products (i.e. as a creative autonomous malware propagation mechanism). Xcode and several of its various helper tools and utilities are vulnerable to dylib hijack attacks. Specifically, run-path-dependent dylibs, such as DVTFoundation are not found in Xcode’s primary run-path search directories (see Figure 37).

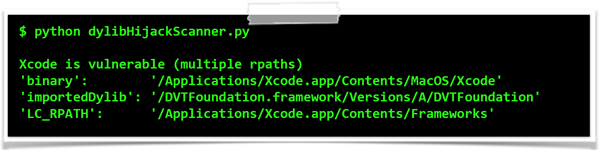

The process injection hijack against Xcode was fairly straightforward to complete. First, a hijacker dylib was configured, such that its versioning information was compatible and it re-exported all symbols to the legitimate DVTFoundation. Then, the configured hijacker dylib was copied to /Applications/Xcode.app/Contents/Frameworks/DVTFoundation.framework/Versions/A/ (Frameworks/ being the primary run-path search directory). Now, whenever Xcode was started, the malicious code was automatically loaded as well. Here, it was free to perform actions such as intercepting compile requests and surreptitiously injecting malicious source or binary code into the final products.
As Ken Thompson noted in his seminal work ‘Reflections on Trusting Trust’ , when you can’t trust the build process or compiler, you can’t even trust the code that you create.
Besides persistence and load-time process injection, dylib hijacking can be used to bypass personal security products. Specifically, by leveraging a dylib hijack attack, an attacker can coerce a trusted process into automatically loading malicious code, then perform some previous blocked or ‘alertable’ action, now without detection.
Personal security products (PSPs) seek to detect malicious code via signatures, heuristic behavioural analysis, or simply by alerting the user whenever some event occurs. Since dylib hijacking is a novel technique that abuses legitimate functionality, both signature-based and heuristic-based products are trivial to bypass completely. However, security products, such as firewalls, that alert the user about any outgoing connections from an unknown process, pose more of a challenge to an attacker. Dylib hijacking can trivially thwart such products as well.
Personal firewalls are popular with OS X users. They often take a somewhat binary approach, fully trusting outgoing network connections from known processes, while alerting the user to any network activity originating from unknown or untrusted processes. While this is an effective method for detecting basic malware, advanced attackers can trivially bypass these products by exploiting their Achilles heel: trust. As mentioned, generally these products contain default rules, or allow the user to create blanket rules for known, trusted processes (e.g. ‘allow any outgoing connection from process X’). While this ensures that legitimate functionality is not broken, if an attacker can introduce malicious code into the context of a trusted process, the code will inherit the process’s trust, and thus the fire-wall will allow its outgoing connections.
GPG Tools  is a message encryption suite for OS X that provides the ability to manage keys, send encrypted mail, or, via plug-ins, enable cryptographic services to arbitrary applications. Unfortunately, its products are susceptible to dylib hijacking.

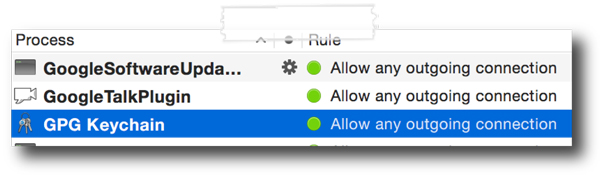

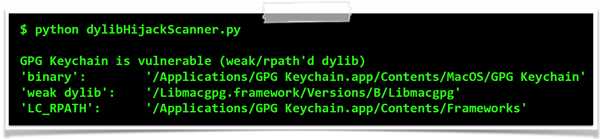

As GPG Keychain requires various Internet functionality (e.g. to look up keys on keyservers), it’s likely to have an ‘allow any outgoing connection’ rule, as shown in Figure 40.

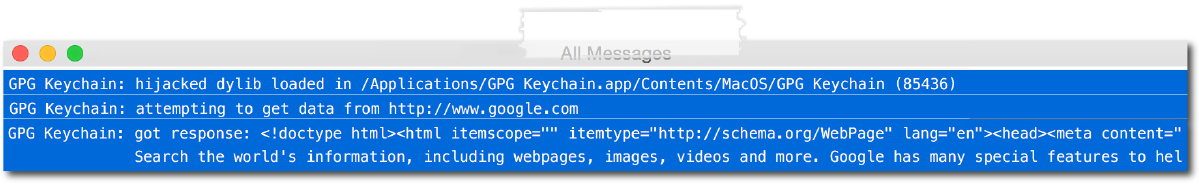

Using a dylib hijack, an attacker can target the GPG Keychain application to load a malicious dylib into its address space. Here, the dylib will inherit the same level of trust as the process, and thus should be able to create outgoing connections without generating an alert. Testing this confirmed that the hijacker dylib was able to access the Internet in an uninhibited manner (see Figure 41).
(Click here to view a larger version of Figure 41.)
Defensive-minded individuals may correctly point out that, in this scenario, GPG Keychain’s firewall rule could be tightened to mitigate this attack, by only allowing outgoing connections to specific remote endpoints (e.g. known key servers). However, there are a myriad of other vulnerable applications that may be hijacked to access the network in a similarly uninhibited manner. Or, in the case of the Little Snitch firewall, the inclusion of a system-level undeletable firewall rule allowing any connection from any process to talk to iCloud.com endpoints is more than enough for a full bypass (i.e. using a remote iCloud iDrive as a C&C server).
So far, the dylib attack scenarios described here have all been local. While they are powerful, elegant and stealthy, they all require existing access to a user’s computer. However, dylib hijacking can also be abused by a remote attacker in order to facilitate gaining initial access to a remote computer.

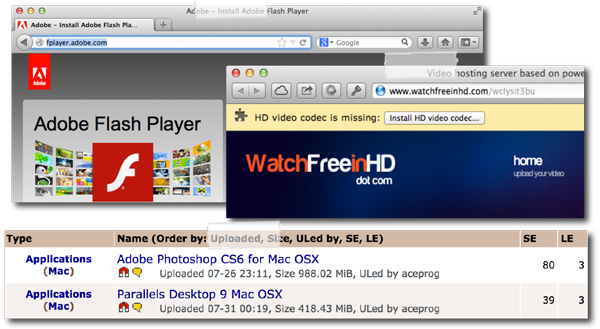

There are a variety of ways to infect Mac computers, but the simplest and most reliable is to deliver malicious content directly to end target(s). The ‘low-tech’ way is to coerce the user into downloading and installing the malicious content manually. Attackers creatively employ a range of techniques to accomplish this, such as providing ‘required’ plug-ins (to view content), fake updates or patches, fake security tools (‘rogue’ AV products), or even infected torrents.
If the user is tricked into downloading and running any of this malicious content, they could become infected. While ‘low tech’, the success of such techniques should not be underestimated. In fact, when a rogue security program (Mac Defender) was distributed by such means, hundreds of thousands of OS X users were infected, with over 60,000 alone contacting AppleCare in order to resolve the issue .

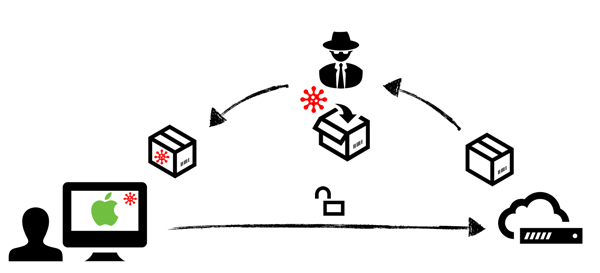

Relying on trickery to infect a remote target will probably not work against more computer-savvy individuals. A more reliable (though far more advanced) technique relies on man-in-the-middling users’ connections as they download legitimate software. Due to the constraints of the Mac App Store, most software is still delivered via developer or company websites. If such software is downloaded via insecure connections (e.g. over HTTP), an attacker with the necessary level of network access may be able to infect the download in transit. When the user then runs the software, they will become infected, as shown in Figure 43.

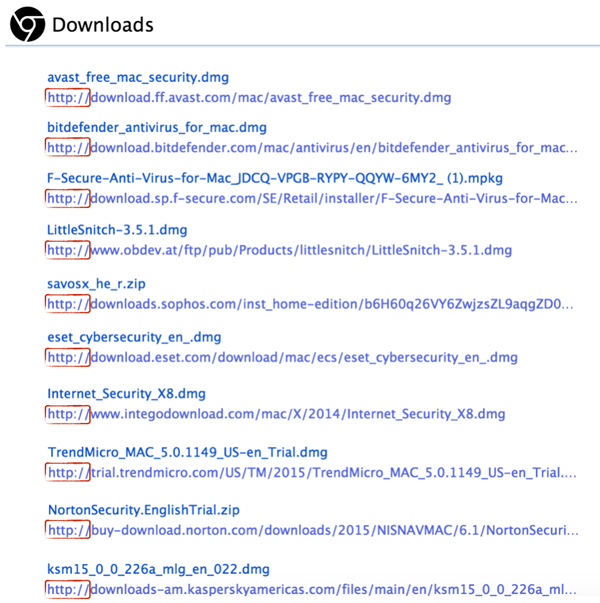

Readers may be thinking, ‘hey, it’s 2015, most software should be downloaded via secure channels, right?’ Unfortunately, even today, the majority of third-party OS X software is distributed insecurely. For example, of the software found installed in the author’s dock, 66% was distributed insecurely.
Moreover, further research uncovered that all major third-party OS X security products were similarly distributed insecurely (see Figure 45).
Apple is well aware of these risks, and since version OS X Lion (10.7.5), Mac computers have shipped with a built-in security product, named Gatekeeper, that is designed to counter these attack vectors directly.

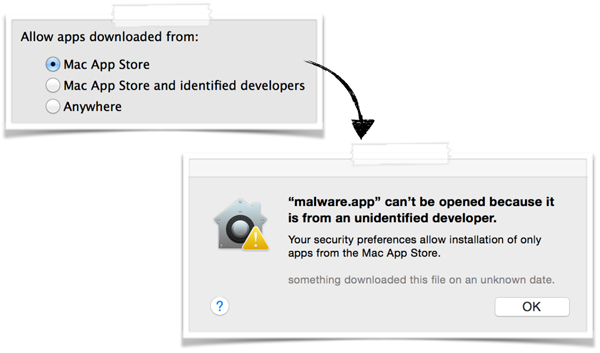

The concept of Gatekeeper is simple, yet highly effective: block any untrusted software from executing. Behind the scenes, things are a little more complex, but for the purposes of this discussion, a higher-level overview suffices. When any executable content is downloaded, it is tagged with a ‘quarantined’ attribute. The first time such content is set to run, Gatekeeper verifies the software. Depending on the user’s settings, if the software is not signed with a known Apple developer ID (default), or from the Mac App Store, Gatekeeper will disallow the application from executing.
With Gatekeeper automatically installed and enabled on all modern versions of OS X, tricking users into installing malicious software or infecting insecure downloads (which will break digital signatures) is essentially fully mitigated. (Of course, an attacker could attempt to obtain a valid Apple developer certificate, then sign their malicious software. However, Apple is fairly cautious about handing out such certificates, and moreover, has an effective certificate revocation process that can block certificates if any abuse is discovered. Also, if Gatekeeper is set to only allow software from the Mac App Store, this abuse scenario is impossible.)
Unfortunately, by abusing a dylib hijack, an attacker can bypass Gatekeeper to run unsigned malicious code – even if the user’s settings only allow Apple-signed code from the Mac App Store. This (re)opens the previously discussed attack vectors and puts OS X users at risk once again.

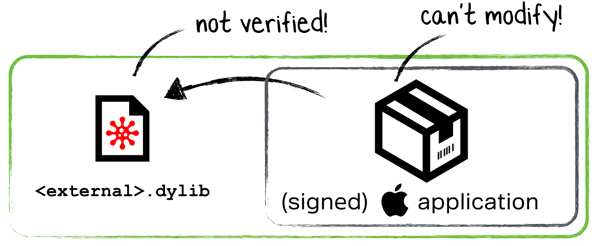

Conceptually, bypassing Gatekeeper via dylib hijacking is straightforward. While Gatekeeper fully validates the contents of software packages that are being executed (e.g. everything in an application bundle), it does not verify ‘external’ components.
Normally this isn’t a problem – why would a downloaded (legitimate) application ever load relatively external code? (Hint: relative, yet external content.)
As Gatekeeper only verifies internal content, if an Apple-signed or Mac App Store application contains a relative external reference to a hijackable dylib, an attacker can bypass Gatekeeper. Specifically, the attacker can create (or infect in transit) a .dmg or .zip file with the necessary folder structure to contain the malicious dylib in the externally referenced relative location. When the legitimate application is executed by the unsuspecting user, Gatekeeper will verify the application bundle then (as it is trusted, and unmodified) allow it to execute. During the loading process, the dylib hijack will be triggered and the externally referenced malicious dylib will be loaded – even if Gatekeeper is set to only allow code from the Mac App Store!

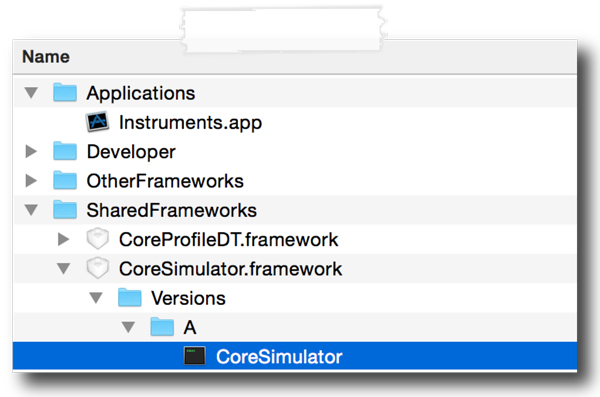

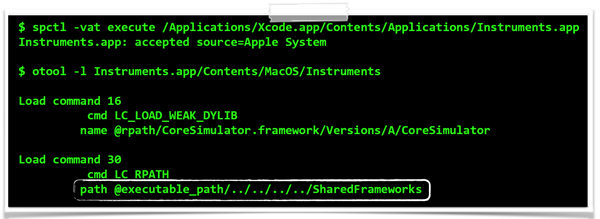

Finding a vulnerable application that fulfils the necessary prerequisites was fairly easy. Instruments.app is an Apple-signed ‘Gatekeeper approved’ application that expects to be installed within a sub-directory of Xcode.app. As such, it contains relative references to dylibs outside of its application bundle; dylibs that can be hijacked.
With a vulnerable trusted application, a malicious .dmg image was created that would trigger the Gatekeeper bypass. First, the Instruments.app was placed into the image. Then an external directory structure was created that contained the malicious dylib (CoreSimulator.framework/Versions/A/CoreSimulator).

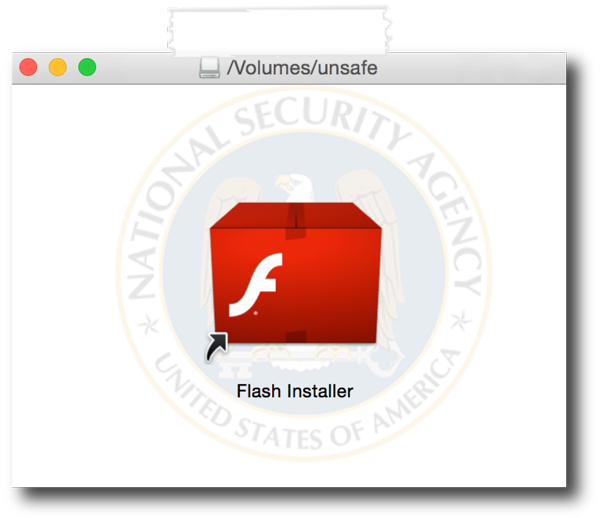

To make the malicious .dmg more ‘believable’, the external files were set to hidden, a top level alias (with a custom icon) was created to point to Instruments.app, the background was changed, and the entire image was made read-only (so that it would automatically be displayed when double-clicked). The final product is shown in Figure 50.
This malicious (though seemingly benign) .dmg file was then ‘deployed’ (uploaded to a public URL) for testing purposes. When downloaded via Safari and then executed, Gatekeeper’s standard ‘this is downloaded from the Internet’ message window was initially shown. It is important to note that this alert is shown for any content downloaded from the Internet, and thus is not unusual.

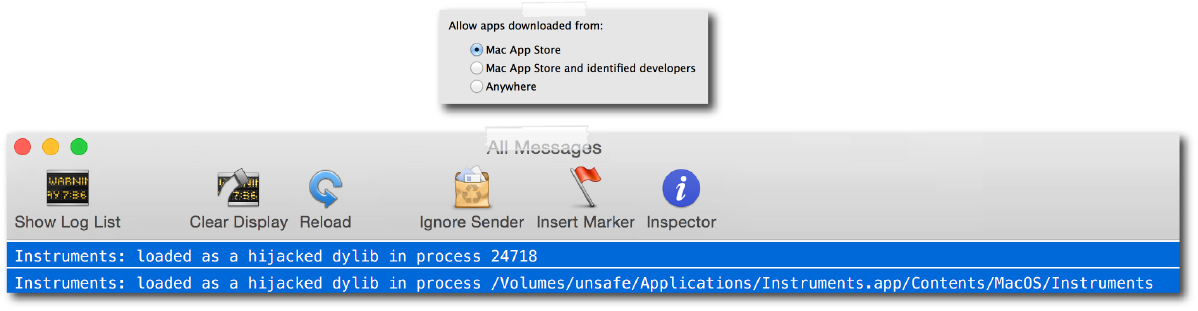

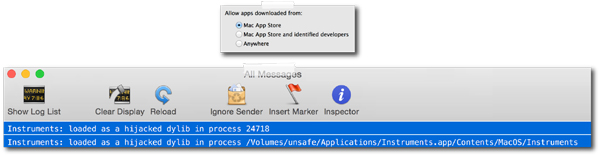

Once this message window was dismissed, the malicious code was surreptitiously loaded along with the legitimate application. This, of course, should not have been allowed as Gatekeeper’s settings were at the maximum (only allow apps from the Mac App Store) (see Figure 51).
(Click here to view a larger version of Figure 51.)
As the malicious dylib was loaded and executed before the application’s main method, the dylib could ensure that nothing appeared out of the ordinary. For example, in this case where the malicious .dmg masquerades as a Flash installer, the dylib can suppress Instruments.app’s UI, and instead spawn a legitimate Flash installer.
With the ability to bypass Gatekeeper and load unsigned malicious code, attackers can return to their old habits of tricking users into installing fake patches, updates or installers, fake AV products, or executing infected pirated applications. Worse yet, advanced adversaries with networking-level capabilities (who can intercept insecure connections) can now arbitrarily infect legitimate software downloads. Neither have to worry Gatekeeper any more.
Dylib hijacking is a powerful new attack class against OS X, that affords both local and remote attackers a wide range of malicious attack scenarios. Unfortunately, despite being contacted multiple times, Apple has shown no interest in addressing any of the issues described in this paper. Granted, there appears to be no easy fix for the core issue of dylib hijacking as it abuses the legitimate functionality of the OS. However, it is the opinion of the author that Gatekeeper should certainly be fixed in order to prevent unsigned malicious code from executing.
Users may wonder what they can do to protect themselves. First, until Gatekeeper is fixed, downloading untrusted, or even legitimate software via insecure channels (e.g. via the Internet over HTTP) is not advised. Refraining from this will ensure that remote attackers will be unable to gain initial access to one’s computer via the attack vector described in this paper. Due to the novelty of dylib hijacking on OS X, it is unlikely (though not impossible) that attackers or OS X malware are currently abusing such attacks locally. However, it can’t hurt to be sure!

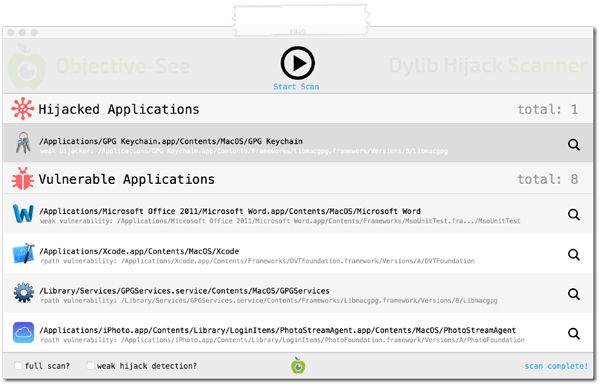

To detect local hijacks, as well as to reveal vulnerable applications, the author created a new application named Dynamic Hijack Scanner (or DHS). DHS attempts to uncover hijackers and vulnerable targets by scanning all running processes of the entire file-system. The application can be downloaded from objective-see.com.
