Dexofuzzy: Android malware similarity clustering method using opcode sequence

Shinho Lee, Wookhyun Jung, Sangwon Kim, Jihyun Lee, Jun-Seob Kim

ESTsecurity, Korea



Recently, Android malware has shown a tendency towards large-scale distribution, which reduces the amount of time required for stealing data. Hackers implement such malicious code variants by reusing code. This paper proposes the use of the ‘Dalvik EXecutable Opcode Fuzzy’ (‘Dexofuzzy’) hash, which finds similar malware variants without the need for an analyst to have systematic or mathematical knowledge. Dexofuzzy is a method for generating similarity digests with software birthmarking of opcode sequences in Dex files based on ssdeep. The clustering results are obtained by N-gram tokenizing of the Dexofuzzy hash, which is generated from the malware samples. Observations and experimental results have demonstrated the effectiveness of Dexofuzzy’s similarity search in analysing the Android malware ‘Operation Blackbird’, which had previously been reported by ESTsecurity Security Response Center (ESRC). Finally, we have measured the similarity of the indicators of compromise (IOCs) in 74 reports published by AlienVault OTX and analysed the association between each report in order to attest the efficiency of Dexofuzzy.


1. Introduction

Android malware has recently shown a tendency towards large-scale distribution, which reduces the amount of time required for stealing data. Hackers implement such malicious code variants by reusing code. According to a Kaspersky report [1], the number of incidences of Android malware in 2018 doubled compared with the previous year, despite the presence of security enhancements in the Android operating system [2, 3].

Many studies based on static, dynamic and hybrid analysis [4, 5] have been carried out in order to find ways to better protect Android devices and users from malware threats. Machine learning and similarity algorithm-based methods have been applied to the previous analysis data [6, 7, 8]. Machine learning-based detection methods enable the clustering and classifying of multiple malware samples, but there is a usage limit on machine learning: high entry barriers make it difficult for general analysts to use such methods with mathematical and statistical approaches and there are considerable costs for the preprocessing and learning of datasets. In contrast, detection methods based on similarity algorithms can evaluate the characteristics of malware samples without the need for additional learning processes. Numerous similarity algorithms have been proposed to improve performance [9]. Although these algorithms require a hash index table for the similarity search, from the point of view of the analyst, the use of similarity algorithms is a much more straightforward method than machine learning.

In particular, the similarity digests algorithm is simple and fast and can be used to compare the similarity of form or objective among multiple samples. Searching for similar malicious codes requires minimum effort, which enables us to cluster and classify a large number of variant malicious codes. Although similarity digests have a limitation in inferring malignancy compared to existing analysis methods, it is simple and quick to cluster, classify and compare the large-scale samples. Because of these advantages, security researchers have introduced analytical methodologies using similarity digests for searching for similar samples – for example, Trend Micro proposed a similarity digest using the Locality Sensitive Hash (LSH), called TLSH [10], and JPCERT proposed Impfuzzy, which calculates an ssdeep hash of the import table of a given PE file [11].

In this paper, we propose the Dalvik EXecutable Opcode Fuzzy (Dexofuzzy) hashing method, which enables analysts to search and classify Android malware variants in a lightweight way. To do this, first we parse a Dex file in APK (which stands for Android Package and compressed by zip) to extract opcode. Then we calculate the ssdeep value of the opcode generated from the previous step, which is named Dexofuzzy. To search malware variants, we tokenize the hashes generated by Dexofuzzy using N-gram, and then index them for a fast search.

This paper is organized as follows: Section 2 explains the techniques that are used in Dexofuzzy. Section 3 describes a method to search similar malware samples using Dexofuzzy extracted from opcode. In section 4, we verify the performance of Dexofuzzy, in which the malware samples are properly clustered. Finally, section 5 summarizes the results from each part and concludes by highlighting the significance of the methodology that we have proposed in this paper.


2. Background

2.1 Android package structure

Android files have an APK extension and utilize the ZIP file format. The most essential components of the APK are AndroidManifest.xml, classes.dex, and resources.arsc. AndroidManifest.xml is an encoded XML file containing information about attributes and permissions of the app, and resources.arsc is an encoded file containing resource information about the app. In order to run the app, classes.dex, known as the Dex file, is used, which contains opcode and is used to generate Dexofuzzy. Figure 1 illustrates the structure of the APK file.

dexofuzzy-fig1.jpgFigure 1: Structure of the APK file.


2.2 Dex format

The Dex file is the most important file that contains the compiled code that runs on Android. When decompiling the Dex file (a.k.a. Baksmaling), it returns bytecode called Smali. The structure of the Dex file is shown in Figure 2.

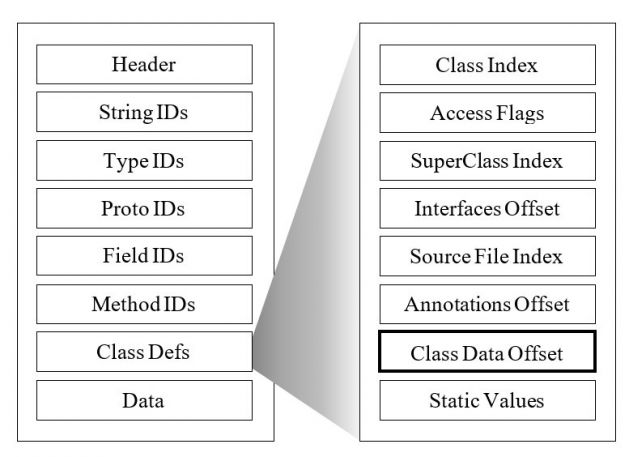

dexofuzzy-fig2.jpgFigure 2: Dex format.

In the Dex file structure, Class Defs is a table that defines code information of Android files by Class. Class Data Offset is a set of bytecode offsets except for attribute information of class [12]. We use a method to parse the Class Data Offset of the Dex file to extract the opcode sequence.


2.3 Software birthmarking

Software birthmarking is a promising technique used for the detection of software theft based on the use of unique characteristics to identify programs. A number of studies have been conducted to detect repackaged Android apps [13, 14, 15]. G. Myles et al. suggested a software birthmark using opcode-level N-gram [16]. In this paper, we use the software birthmark method on the opcode of Dex files to detect Android malware variants that reuse existing malicious code.

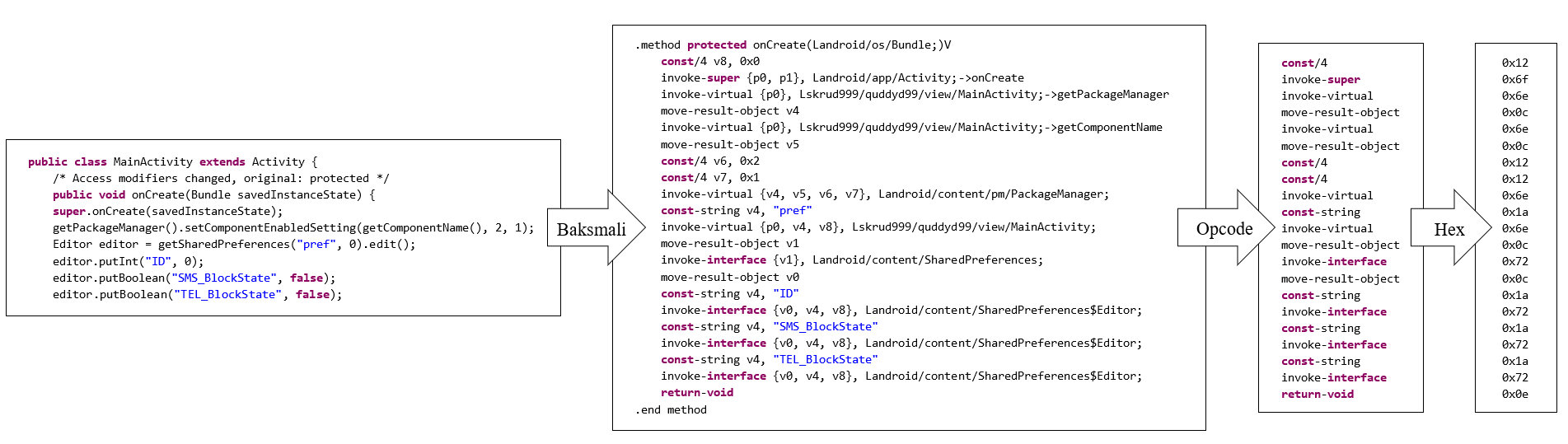

Figure 3: Birthmarking dex opcode by software birthmark.


2.4 Fuzzy hash – ssdeep

The Context Triggered Piecewise Hashes (CTPH) algorithm, proposed by J. Komblum, is a method that generates a similarity digest by dividing a file into segments using the Rolling Hash method, unlike the existing hashing method that guarantees integrity [17]. CTPH is designed to identify the similarity of data, and is currently used for analysing malicious code [10].


2.5 N-Gram tokenizer

N-gram is a contiguous sequence of n items from a given sample of text. The method is widely used for measuring the similarity of sentences in search engines, big data, and computer forensics. B. Wallace presented the results of clustering malware variants by hashing the malware samples to ssdeep and tokenizing them with 7-gram, and proposed the use of the N-Gram tokenizer for searching N-gram as one of the ways to improve the performance of ssdeep [18]. Elasticsearch is a search engine that provides a distributed, multitenant-capable, full-text search. Because it supports N-gram tokenizer, it is highly effective for similarity searches [19].


3. Methodology

This section describes how Dexofuzzy works to measure the similarity between Android malware families. Dexofuzzy parses the Dex file inside the Android file to extract the opcode, and the extracted features are used to generate the similarity digests using ssdeep. The features are also used to search for similar malicious code by tokenizing the generated Dexofuzzy to N-gram size and using the sliding window technique. Figure 4 is a schematic illustration of how Dexofuzzy is created.

dexofuzzy-fig4.pngFigure 4: Dexofuzzy’s smilarity digests.


3.1 Opcode sequence extraction

The classes.dex file, which is the core file required to run an Android application, is decompiled into Dalvik bytecode using APKTool [20]. We will use the opcode defined in Dalvik bytecode for the similarity search. In this paper, opcode has been selected because the opcode sequence will remain unchanged in spite of overall changes in the Dalvik bytecode, even in the case of changing the Package Name, Class Name and Method Name and adding one or more variables in reusable codes. Figure 5 is a representative example to show that Dalvik bytecodes are changed (except for the opcode sequence) in two identical malware samples by the addition of variables in the Method and by changing the Package Name. Therefore, opcode is the most powerful characteristic in the regard that the original remains unchanged despite changes in other elements when measuring the similarity of malware variants implemented by reusing codes.

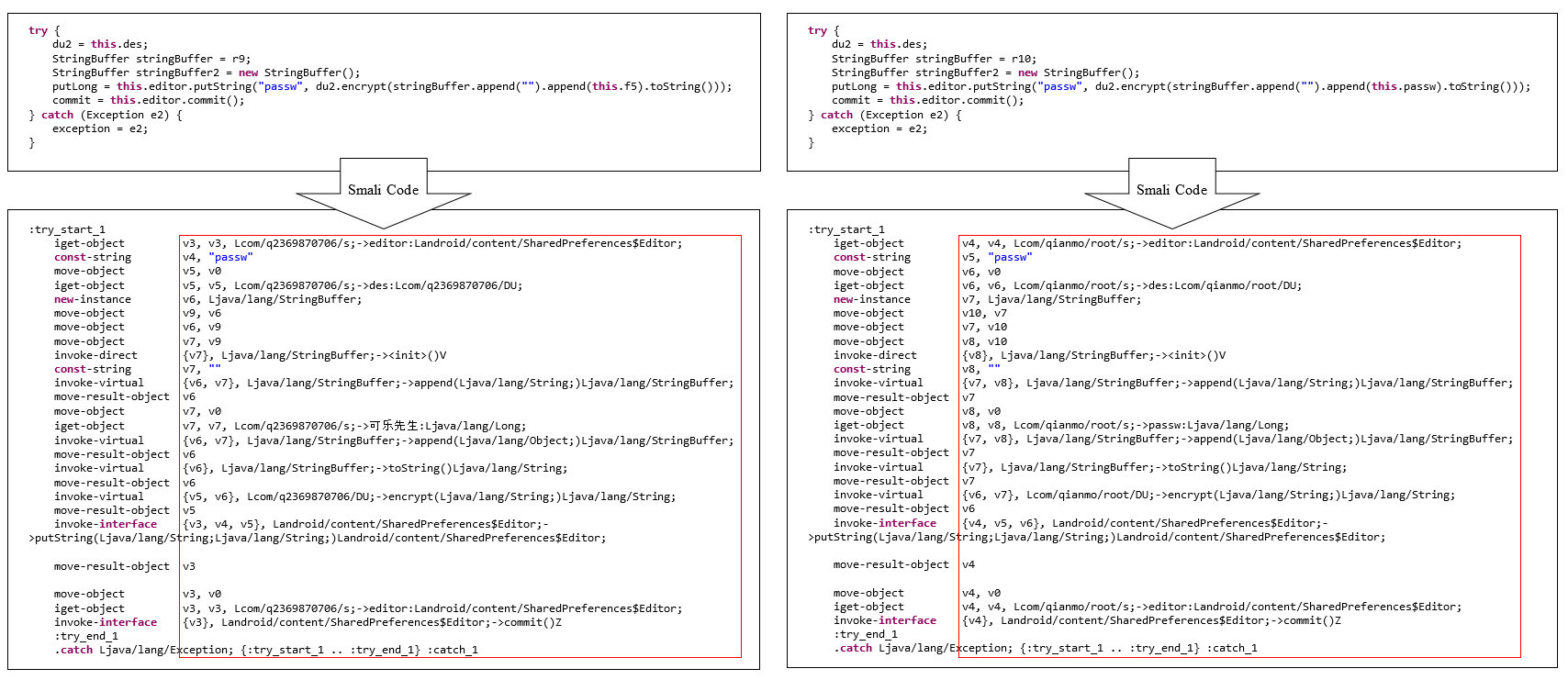

dexofuzzy-fig5-new.jpgFigure 5: Comparison of Smali code in malware variants.

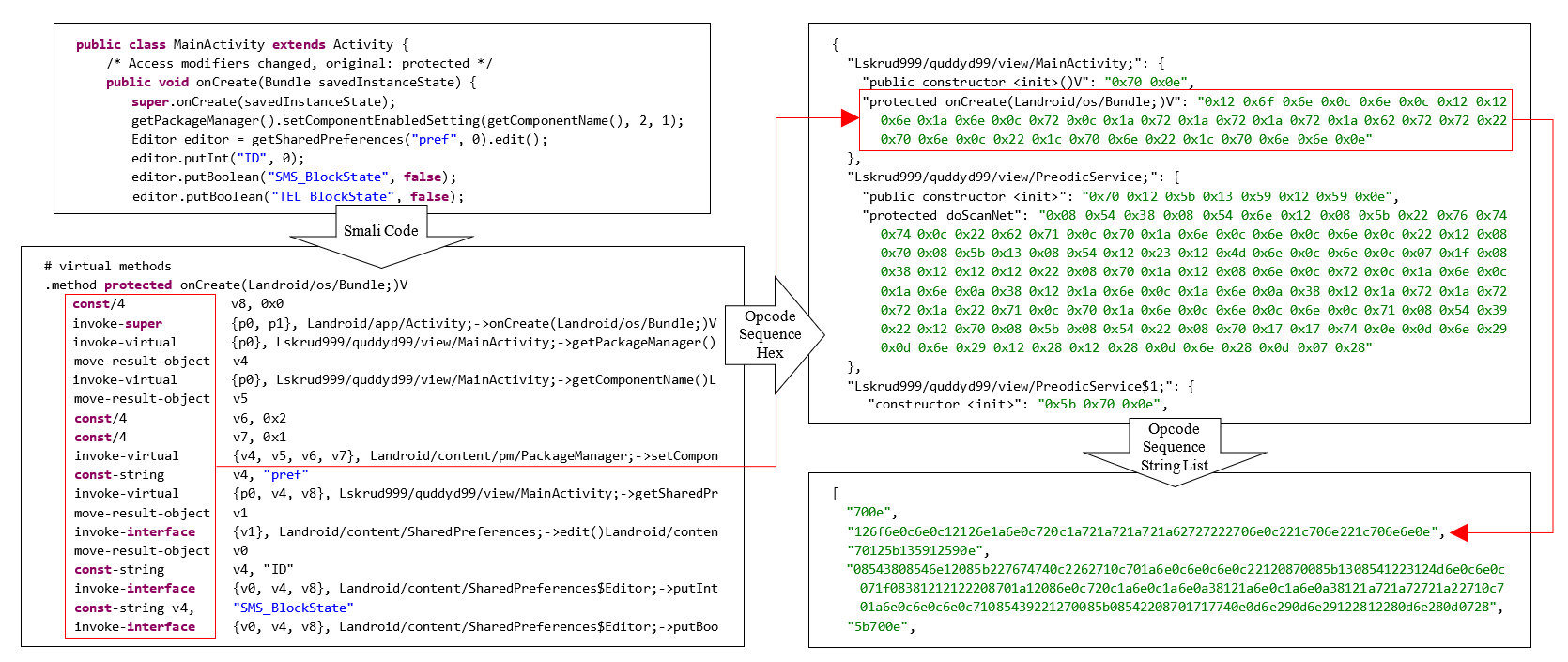

Figure 6 displays the process of extracting the opcode sequence from each method into Hex values by parsing the classes.dex file. The extracted opcode sequence is bundled into a single string that stores the opcode sequence of the Dex file in list form. Since such an opcode sequence string has unique characteristics of each method, the malware variants reusing the code contain a large number of opcode sequence strings that match in the list, compared to malware which is not implemented by reusing code.

dexofuzzy-fig6.jpgFigure 6: How to extract opcode sequence by method in classes.dex.

3.2 Fuzzy hashing based on opcode sequence

As shown in Figure 7, the extracted opcode sequence string list performs the first stage of fuzzy hashing for each string. Next, the fuzzy-hashed Methodfuzzy list is fuzzy-hashed again in the second stage to generate Dexofuzzy.

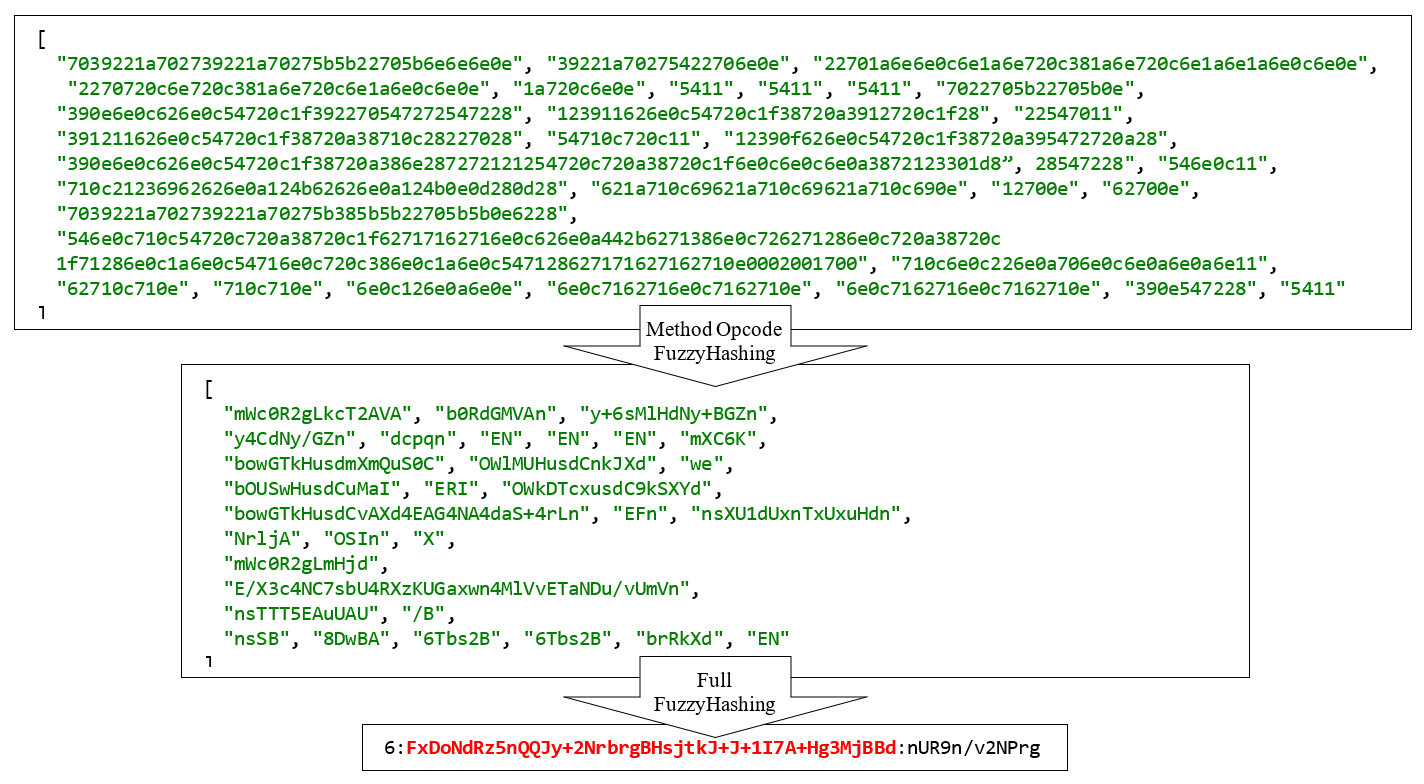

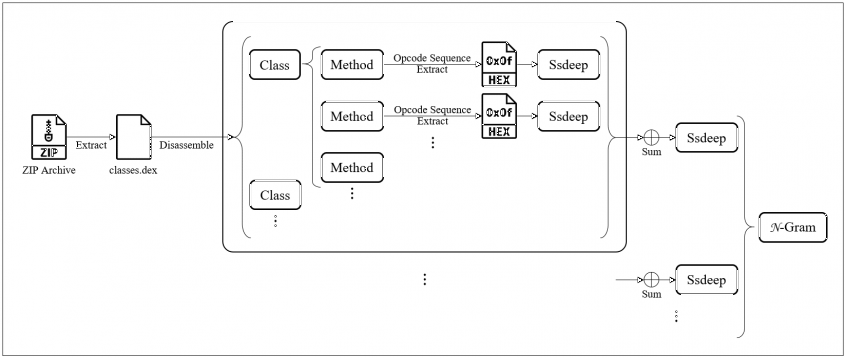

dexofuzzy-fig7.jpgFigure 7: Generating process of Dexofuzzy.

The ssdeep format is composed of BlockSize:Signature1:Signature2, where BlockSize is the minimum block size for rolling hashing. Signature1 is a signature generated by rolling hashing based on previously calculated block size, and Signature2 is a signature generated by rolling hashing with twice the block size. Dexofuzzy is a similarity digest generated based on ssdeep, which enables us simply to compare the signatures using the function ssdeep compare. Figure 8 shows the result of comparing two Android malware variants with Dexofuzzy.

>>> import Ssdeep
>>>"48:U7uPrEMc0HZj0/zeGnD2KmUCNc2FuGgy9fY:UHMHZ4/zeGD2+Cap3y9Q", "48:U7uPrEMc0HZj0/zeGnV2KmDmUCNc9tzFuGgLM/xBDyw9V4XIU0pt:UHMHZ4/zeGV2lCa43LM5B/H7U0pt")

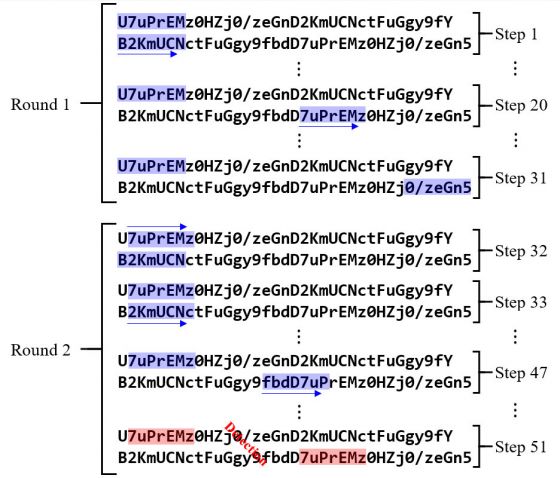

Figure 8: Results of comparing ssdeep using Dexofuzzy.

B. Wallace has confirmed that Signature1 is more efficient than Signature2 for searching malware by performing a test to compare the two signatures with 7-gram Slice with ssdeep [18]. Accordingly, we use Signature1 to search for similar malware variants in this paper.


3.3 N-gram tokenizer sliding window search

We use Elasticsearch to search for Dexofuzzy by N-gram. Elasticsearch basically provides an N-gram tokenizer and indexes all generated N-length tokens. Figure 9 describes the process of tokenizing Dexofuzzy into 7-grams to detect the indexed seven‑character strings with the sliding window technique.

dexofuzzy-fig9.jpg Figure 9: Dexofuzzy N-gram tokenizer’s sliding window search.

In addition, Elasticsearch is useful for calculating the optimal thresholding value to increase the true positive rate and to reduce the false negative rate of each sample since the method enables the number of M to be specified, where the N-gram strings are matched, as a parameter when searching. Figures 10 and 11 illustrate how to search for a similar Dexofuzzy by setting N-gram and Minimum Should Match (from Elasticsearch settings) in a single Dexofuzzy sample.

dexofuzzy-fig10.jpg Figure 10: Partial matching results of Minimum_Should_Match = 3 with 7-gram.


Figure 11: Partial matching results of Minimum_Should_Match = 7 with 7-gram.


4. Experiment

This chapter presents the results of clustering and performance measurements on malware variants that are active in the wild, with the generated Dexofuzzy. We collected 212,955 malware samples and created a list of the ssdeep and Dexofuzzy hash values of a Dex file of the APK respectively, then searched samples using the Elasticsearch 7-gram tokenizer and clustered the result values in order to assess the performance of Dexofuzzy.

In this section, we will also demonstrate the effectiveness of the Dexofuzzy similarity search using the visualization tool Gephi [21] to analyse the malware ‘Operation Blackbird’, which has previously been reported. Finally, we collected the malware samples based on indicators of compromise (IOCs) in AlienVault OTX reports published by multiple vendors and then created Dexofuzzy and clustered it in order to explain the relationship between the reports. Table 1 shows the configuration of the environment for the experiment.

CPU Intel(R) Core(TM) i5-7500 CPU @ 3.40GHz
Storage 240GB
OS Ubuntu 18.08 LTS
Search engine Elasticsearch 7.2

Table 1: The environment for the experiment.


4.1 7-Gram clustering result of Dex ssdeep vs. Dexofuzzy

We clustered the similarity digest hashes of the Dex files, which were computed using Dex ssdeep and Dexofuzzy respectively, with 431 samples detected as Trojan.Android.KRBanker, to evaluate the performance of the two similarity clustering algorithms. Figure 12 shows the clustering results of Dex ssdeep and Dexofuzzy by using the 7-gram search.

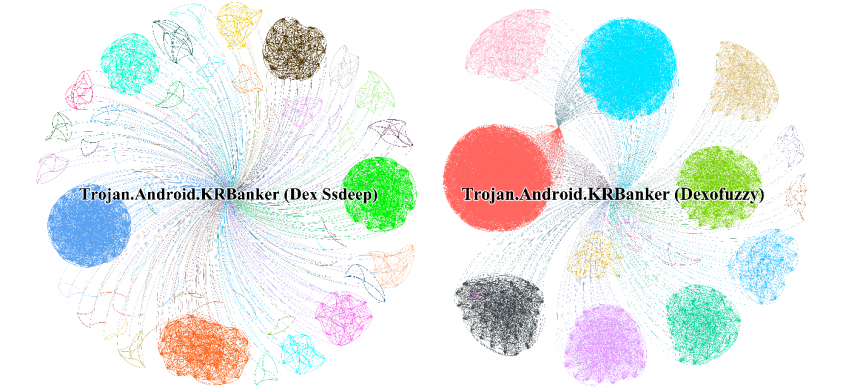

dexofuzzy-fig12.png Figure 12: Clustering result from Dex ssdeep vs. Dexofuzzy 7-gram.

The experimental results show that Dex ssdeep hashes are clustered into 144 groups and 21 groups are clustered by Dexofuzzy – the clustering size of Dexofuzzy is seven times smaller than that of ssdeep, which means that Dexofuzzy is more effective than ssdeep. Next, we conducted an experiment to search for multiple Dexofuzzy hashes simultaneously to measure the search performance of the Elasticsearch tokenizer. Figure 13 shows the operation time of Dexofuzzy when searching 212,955 samples at the same time.

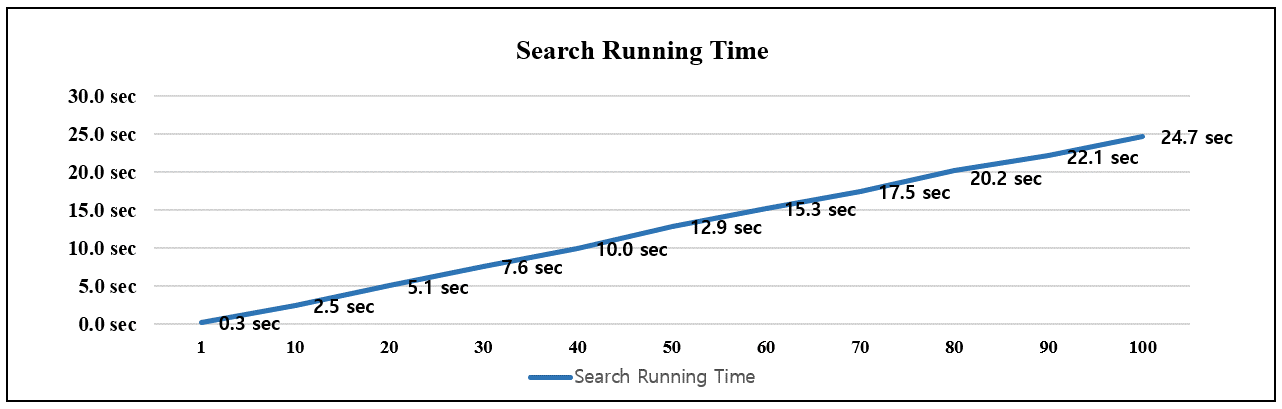

Figure 13: Search running time of Elasticsearch 7-gram tokenizer.


4.2 ‘Operation Blackbird’ sample clustering

In the following experiment, we searched for similar variants using 7-gram tokens of Dexofuzzy generated in 10 malware samples from the IOCs [22] of ‘Operation Blackbird’ reported by ESTsecurity. Figure 14 shows the clustering result of the additionally found malware variants among 212,955 samples.

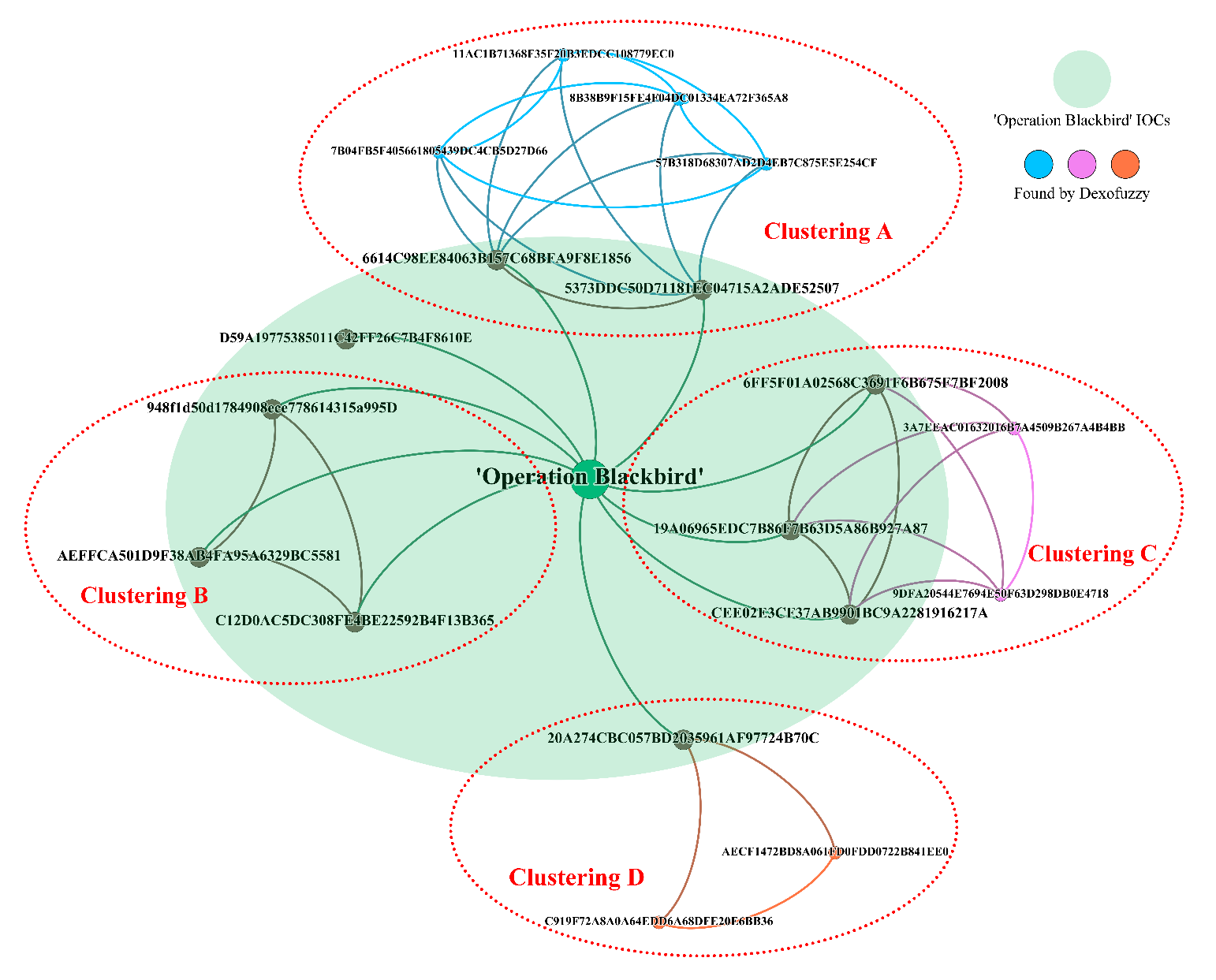

Figure 14: Dexofuzzy 7-gram search of ‘Operation Blackbird’ samples.

A total of eight variants (excluding the original malware) were found from the 10 malware samples from the IOCs [22] of the ‘Operation Blackbird’ report. Table 2 presents the MD5s of the searched malware samples and the detected Dexofuzzy 7-gram tokens, which are highlighted in bold.

Label MD5 Dexofuzzy Size (bytes)
Clustering A 11ac1b71368f35f20b3edcc108779ec0 768:xxRjpEiGPZJXw1rekqFPwmk/bGagrfk7mFaoEcz5
57b318d68307ad2d4eb7c875e5e254cf 768:xxRI434VRH5FPwmk/bGagrfk7mFaoEcz5TIsciP4
7b04fb5f405661805439dc4cb5d27d66 768:xxRzQsj7UZJWmGm09FPwmk/bGagrfk7mFaoEcz
8b38b9f15fe4f04dc01334ea72f365a8 768:xxRzQsj7pZJWmGm09FPwmk/bGagrfk7mFaoEcz
Clustering C 3a7eeac01632016b7a4509b267a4b4bb 12:l6rjux+B9xa3GUGrW/JU/fX4bznCrrNNlu8LL+GhU
9dfa20544e7694e50f63d298db0e4718 12:l6rjux+B9xa3GUGrW/JU/fX4bznCrrNNlu8LL+GhU
Clustering D aecf1472bd8a061fd0fdd0722b841ee0 24:CVb9X92WLLLLLLLTgGyplomnwlomx0+NssWw
c919f72a8a0a64edd6a68dfe20e6bb36 24:Wx4KAKtRQbIk4ldSZ2WLLLLLLL0NENCSVtxgG

Table 2: Sample IOCs and Dexofuzzy.

We have analysed the samples in Clustering D based on the IOC (MD5: 20a274cbc057bd2035961af97724b70c), which is indicated in the report ‘Operation Blackbird’, to identify the similarity of the samples from the clustering results. Table 3 shows the MD5 and Dexofuzzy hashes which are created from samples in ‘Operation Blackbird’ and Clustering D, and Figure 15 describes the class structure of three malware samples.

Label MD5 Dexofuzzy Size (bytes)
Operation Blackbird IOC 20a274cbc057bd2035961af97724b70c 12:H7Oe0yovJkUTSX9Xh75L7xZ2PeLLLLLLL0NEN/
Clustering D aecf1472bd8a061fd0fdd0722b841ee0 24:CVb9X92WLLLLLLLTgGyplomnwlomx0+NssWwf
c919f72a8a0a64edd6a68dfe20e6bb36 24:Wx4KAKtRQbIk4ldSZ2WLLLLLLL0NENCSVtxgG

Table 3: IOCs and Dexofuzzy.

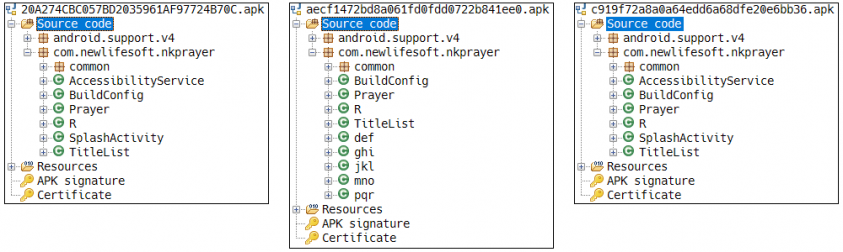

dexofuzzy-fig15.pngFigure 15: Class structure of malware in ‘Operation Blackbird’ and Clustering D.

Analysing three malware samples revealed that the same source code was partially reused in ‘20a274cbc057bd2035961af97724b70c’ and ‘c919f72a8a0a64edd6a68dfe20e6bb36’, and that ‘aecf1472bd8a061fd0fdd0722b841ee0’ was created by adding the logic to specify the malicious behaviours. Figure 16 illustrates the logic added in malware samples.

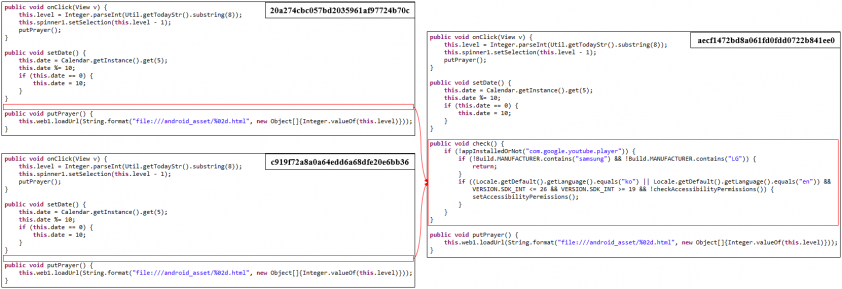

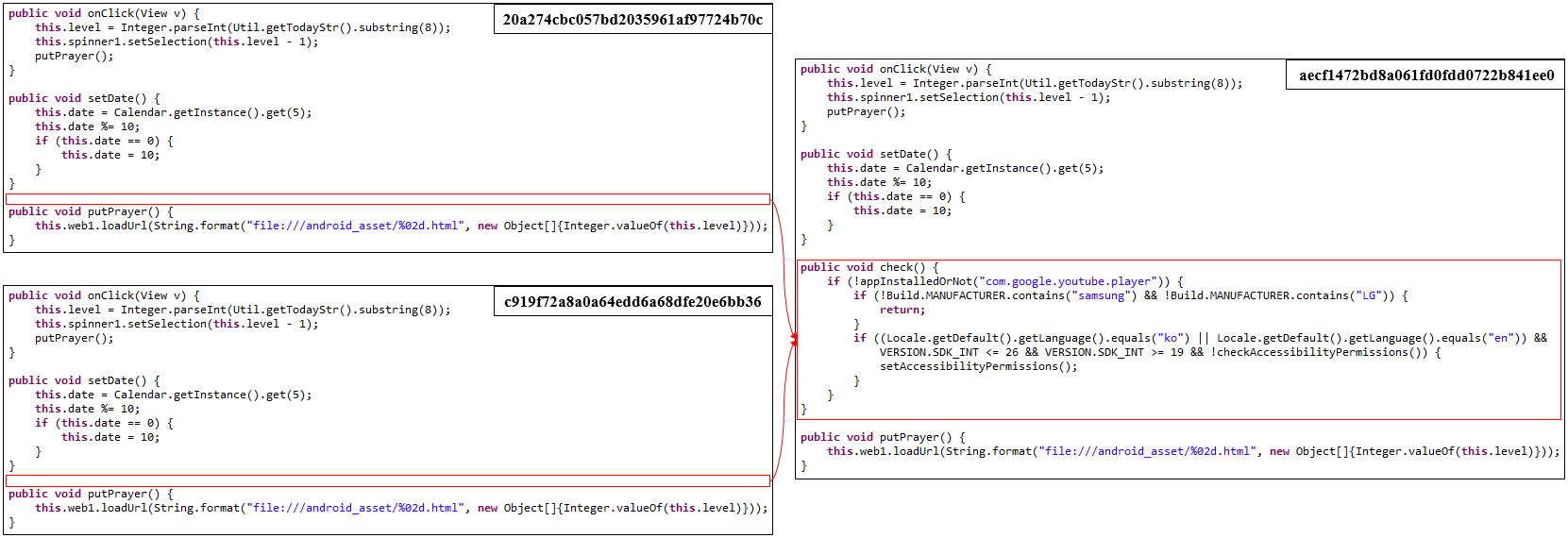

Figure 16: Logic added in malware variants.


4.3 AlienVault OTX reports relationship

Finally, we have investigated the correlation using Dexofuzzy based on 2,494 IOCs extracted from 74 AlienVault OTX reports released by multiple vendors. Appendix A represents the correlation of 74 AlienVault OTX reports. We have selected 465 IOCs from 15 of the AlienVault OTX reports and clustered the samples to analyse the correlation between the reports in this experiment. Figure 17 shows that there are four types of relationship in the results of analysing the 15 reports, which were clustered into six groups.

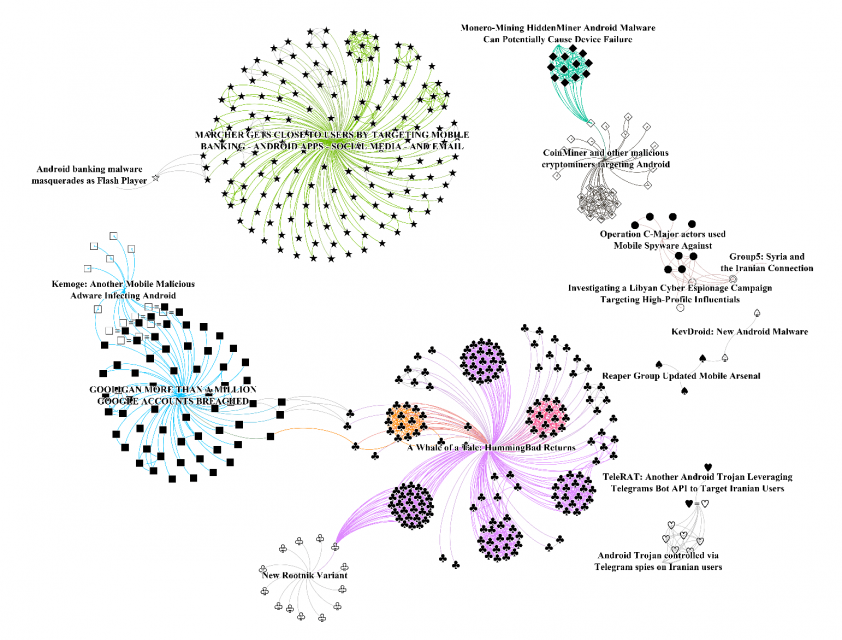

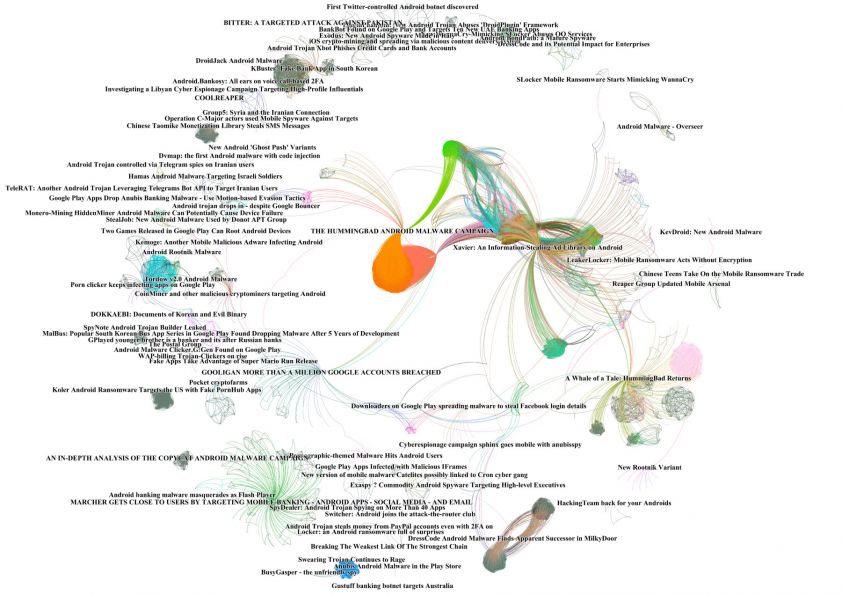

Figure 17: Relationship of 15 AlienVault OTX reports.


4.3.1 Relationship of samples containing similar opcode sequence

The first type is the relationship, in which opcode sequence is similar, clustering nine reports into four reports, as shown in Figure 18.

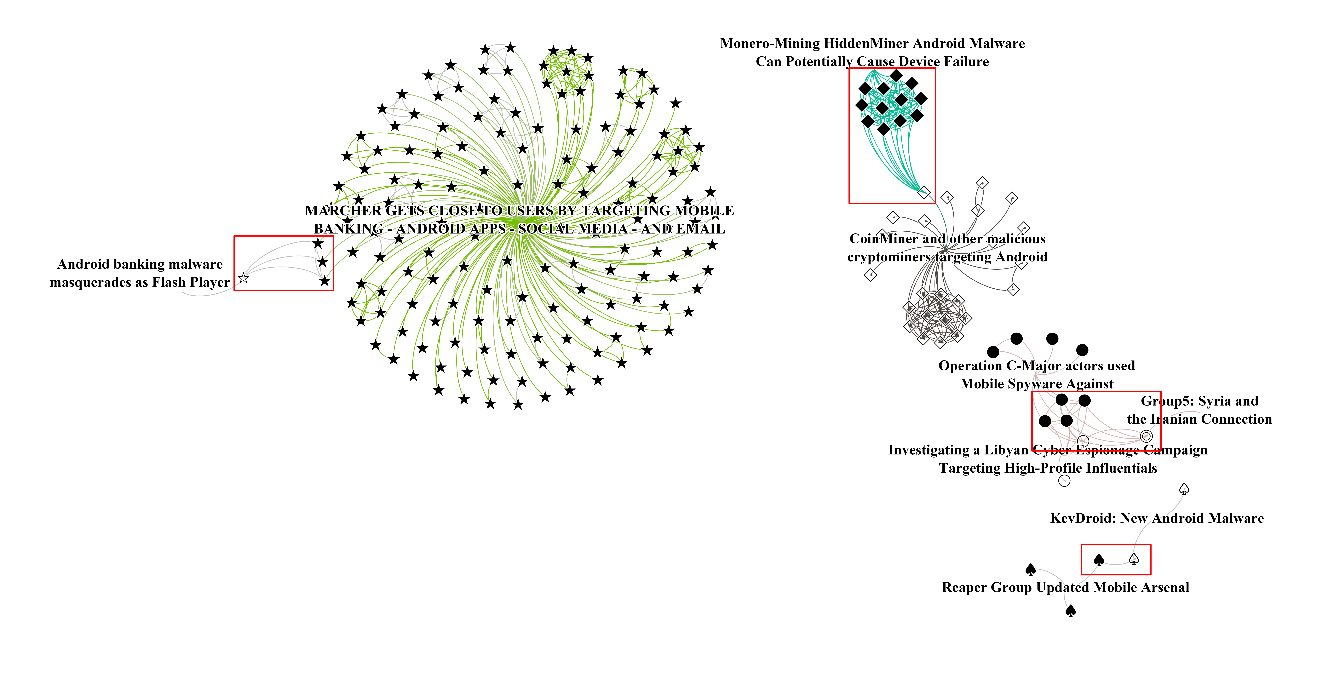

Figure 18: Clustering reports containing similar opcode sequence.

Tables 4 to 7 show clustering results (MD5, Dexofuzzy) of the set of malware samples containing a similar opcode sequence. The samples in each report are clustered by similar logic, and the clustered reports are correlated according to the themes.

Title MD5 Dexofuzzy Size (bytes)
Android banking malware masquerades as Flash Player 78c2444fe15a8e58c629076781d9442a 96:VsMRXFTmw+cFcpF1THYb6Hi4W493J05zRo/+
c918c977d48855d115527eddde7dbc99 96:zP6jkAKcWFTmopF1THPb6Hi47493J05zbJ6O+
f741d7f608a826e96d06a549602b1ce2 96:VWjY++FTm4cFcpF1THPb6Hi47493J05znMm

Table 4: Sample IOCs and Dexofuzzy.


Title MD5 Dexofuzzy Size (bytes)
Monero-Mining HiddenMiner Android Malware Can Potentially Cause Device Failure 530bd6c95c3a79c04f49880a44c348db 384:H3Ddbm8whYHVxIiKXB+O51BVapknL+
a13126ed31b3a7982133ff57e6f9676d 3,281,844
659909c20269c630372eac4878e679ca 384:H3DEbm8whYHVxIiKUO51BVapknL+G2
73415fbf16952894e0620b40766d9e2f 2,725,223
a765d2829b80d812b321c663d8d8320e 2,725,223
c18f39c4b09e542926d728195b88e418 2,725,223
c36475ede88631a74f046bd2d4c96405 2,725,223
ef161923c7a6f99d134467ca21e34410 2,725,223
fffb8d51838af6bb742e84b8b16239bb 2,725,223
642bef4824d549ac56520657a1868913 384:i/Cm8whYHVxIiKSO51BVapknL+G2Po7
a0f776e61cf4ddc55c28051583fbb28e 4,848,132
e24a0d6b17a9dbf0456bbf4bb93adb25 4,848,132
CoinMiner and other malicious cryptominers targeting Android 766055b991805fe8ef0a1c96643a98a1 384:H3Ddbm8whYHVxIiKXB+O51BVapknL

Table 5: Sample IOCs and Dexofuzzy.


Title MD5 Dexofuzzy Size (bytes)
Operation C-Major actors used Mobile Spyware Against Targets 11ba93d968bd96e9e9c9418ea1fdcbbc 384:qK9ydh5ix2PaQdyUrrrr6CpXX5asWMou
  af046d94f254a3f85a0ba731562a05c5 216,084
  ce59958c01e437f4bdc68b4896222b8e 196,513
  dfd2eca84919418da2fa617fc51e9de5 216,081
Group5: Syria and the Iranian Connection 8ebeb3f91cda8e985a9c61beb8cdde9d 384:qK9ydh5ix2PaQdyUrrrr6CpXX5asWMou
Investigating a Libyan Cyber Espionage Campaign Targeting High-Profile Influentials 93ebc337c5fe4794d33df155986a284d 384:qK9ydh5ix2PaQdyUrrrr9CpXRgasWMou

Table 6: Sample IOCs and Dexofuzzy.


Title MD5 Dexofuzzy Size (bytes)
KevDroid: New Android Malware 56b1f4800fa0e083caf0526c3de26059 3072:KEKQgvB+ZNXB/ZTUKvcb0crwIbRo
Reaper Group Updated Mobile Arsenal d6abaa07f7e525153116c98412115b2e 3072:EEKQgvB+ZNXB/ZTUKvcb0crwIbRkT

Table 7: Sample IOCs and Dexofuzzy.


4.3.2 Relationship of identical samples in reports

The second is the group of samples including the same MD5, which clusters similar samples, leading to the result that there is a relationship among the analysed reports. Figure 19 shows the relationship between the reports, in which similar malware samples are clustered.

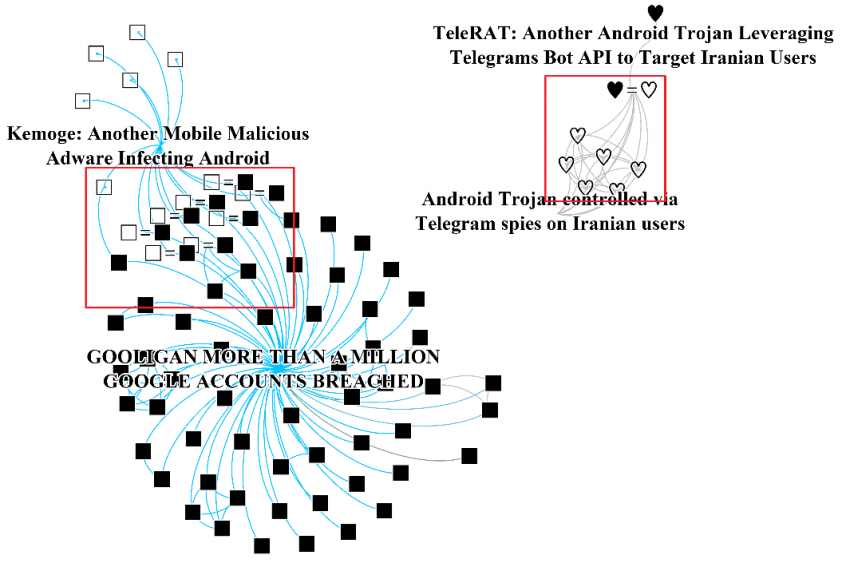

Figure 19: Clustering identical samples in reports.

Table 8 describes two reports where similar Telegram malware was examined, enabling us to clearly identify if those samples are similar using Dexofuzzy.

Title MD5 Dexofuzzy Size (bytes)
TeleRAT: Another Android Trojan Leveraging Telegrams Bot API to Target Iranian Users 9d23f7688a82d487a8bb87df19cb2426 768:L6T++XMpGVznLwCtyaipLbV8wyNN7HN
Android Trojan controlled via Telegram spies on Iranian users 34be73f9fdccc152530f2d6cc26cc640 413,917

6a5f850d5f6a319bba2326a7e015dc97 417,678
7399e38c0729c122d02a6085391cbb5a 467,413
a6c6daed941a33248c5232a4507ee726 413,915
3f13c5c6de3139ecf86120df58cc4b53 768:L6T++XMpGVznLwCtyaipLbV8wyNN7HN

Table 8: Sample IOCs and Dexofuzzy.

Table 9 shows that there are eight malware samples containing the same SHA-256 in the reports ‘Kemoge: Another Mobile Malicious Adware Infecting Android’ and ‘GOOLIGAN MORE THAN A MILLION GOOGLE ACCOUNTS BREACHED’. Additionally, three more similar samples were found in the IOCs of the report ‘GOOLIGAN MORE THAN A MILLION GOOGLE ACCOUNTS BREACHED’ based on the identified samples.

Title MD5 Dexofuzzy Size (bytes)
Kemoge: Another Mobile Malicious Adware Infecting Android
0c67d0919e574a6876c73118260368ee 6144:y2EM9UzoyIqvv5RqdGMhukivPW2UX4
162cb09e2eebd595eae2617cd3af1d0d 1536:2mjgynBC0okyF32Bc688O/daKTmYv01
1be29a6622543f6f5063eda1d83a4e49 768:+dtDwG46p13cVpVCORmXrqRu/LWzxnt
7cd86d83d916dbd9b04d0e7e4f9ff6e8 1536:7U1c27yCCb7WnWW8mtxXW79INd9BZ
abaf6cb1972d55702b559725983e134a 3072:r2L6sy4CDTN0QFKY9jeFn9wC2/7kqTN
b36a751d72e2bdea80e7ff72b6fb3a41 6144:y280dGmoXd9id49zvvRck2XMxBP5HhA
bf6dc2f78baed212f6aa4268da086e09 768:LdlewFo1cxyn3vjSo1Z0mAwazUGK6HHH
cec85188308644273332d00d633ab875 1536:2mjgynBC0okyF32Bc688O/KOhTS01pT
GOOLIGAN MORE THAN A MILLION GOOGLE ACCOUNTS BREACHED   5b446ec92f1cf0a2a06fbe66a95a6c89 3072:2+y4CDTN0Qw7Nw968CcGpunZZUWj
d7b8e2001ea50c008a6ed068cdbb716c  6144:woyIqvv5RqdGShukivPW2UX4LtTmGt
ef835c570bed7d36b8a935a6b7d85b8a  3072:LsyNRmWsOpC/PvvPpAadG8r767yEjR

Table 9: Sample IOCs and Dexofuzzy.


4.3.3 Clustering malware samples using packer

The third type clusters malware samples that are packed using the same logic. In this case, however, there is no correlation between the reports. Figure 20 shows the clustering results of the malware samples that are packed by similar packers Qihoo and Tencent.

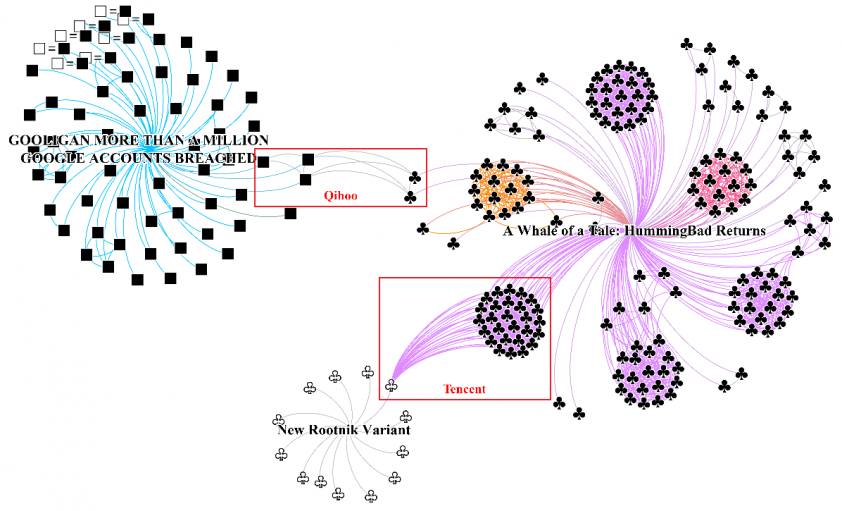

Figure 20: Clustering malware samples by types of packers.

Figure 21 displays the clustered malware samples using the packer Qihoo, and Table 10 indicates the details of the five clustered malware samples from the reports from ‘GOOLIGAN MORE THAN A MILLION GOOGLE ACCOUNTS BREACHED’ and ‘A Whale of a Tale: HummingBad Returns.’

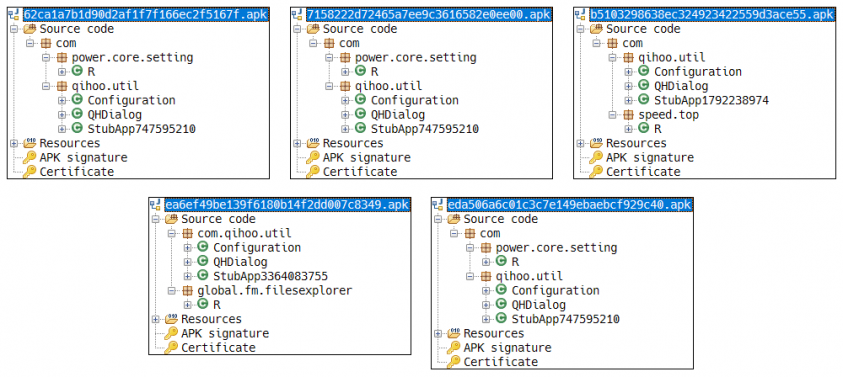

dexofuzzy-fig21.png Figure 21: Class structure of sample using Qihoo packer.

Title MD5 Dexofuzzy Size (bytes)
62ca1a7b1d90d2af1f7f166ec2f5167f 6:zLMXv56Pikl7KnKA4fdQV/EughUtDK1LAY
7158222d72465a7ee9c3616582e0ee00 1,369,341
A Whale of a Tale: HummingBad Returns b5103298638ec324923422559d3ace55 6:zLMXv56Pikl7KnKztsk4fdQV/PfwVrUtDsqxhY
ea6ef49be139f6180b14f2dd007c8349 4,014,418

Table 10: Sample IOCs and Dexofuzzy.

The 28 samples in the reports ‘A Whale of a Tale: HummingBad Returns’ and ‘New Rootnik Variant’ were clustered by the similarity of the logic used in the Tencent packer. Figure 22 presents the result of analysing the class structure of four representative malicious codes from each cluster based on Dexofuzzy, and Table 11 shows a list of malware samples packed by Tencent using 7-gram search of Dexofuzzy.

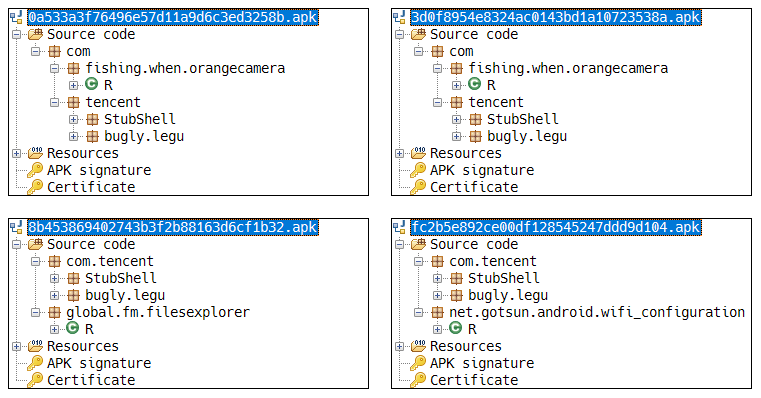

dexofuzzy-fig22.pngFigure 22: Class structure of sample using Tencent packer.

Title MD5 Dexofuzzy Size (bytes)
A Whale of a Tale: HummingBad Returns 5f512bf1f51141d4201dcfe819dc2165 84:9IIiCtwXLNRtwkqrEEDjyqJP21bS8FhYLZ
  8b453869402743b3f2b88163d6cf1b32 3,891,624
  0cc5d5436d7ff42886b74e89cf6f7047 384:9IIKCtwXLNRtwkqrEEDjyqJP21bS8FhYL
  15be23d3724fafaa16c7e68f1f6466f6 3,201,547
  2e3990fd4af3ea26066a7180b24bb435 15,303,085
  3d0f8954e8324ac0143bd1a10723538a 15,261,131
  4c635fcce49743de86d8f9cc58d2de8b 3,671,850
  5ee2367fa2c4f8dc79a9d466148b3819 15,259,287
  69e30a40e68d85140bd881f195bc791a 3,671,824
  7c7b32233f94e850703880caee1bac15 2,593,776
  81426b5812f164f16daf0c59e0593dbe 3,853,283
  9388b89593e515e89263c113d1245e04 14,858,701
  9e8b27b00da7f56371125c5659b09f20 15,316,677
  b7c173fa6b86ba87f13a4b6221646b49 14,781,770
  ceab2234b547df62747d901397b419d2 2,615,708
  dc34055f88595063cc66baf238486919 15,245,522
  e3c22b146d4cf6aa70292ee12622afeb 12,136,614
  0a533a3f76496e57d11a9d6c3ed3258b 384:9IIVCtwXLNRtwkqrEEDjyqJP21bS8FhYL
  1aeb25ac71b8fc1b76f87e2db5f7d650 16,093,071
  296bed0e48929cd83b84624239683ded 12,978,770
  533fa599f95864701025b205cd24226e 14,762,818
  77cf656556bfdcd0bbdfd7a8d48702de 11,831,615
  9d7adfe4e98ed8dc0623c6a6bed85adf 12,970,387
  a7917eacaf02c715a8e232ae18551a09 14,805,954
  deca693848b8926a32ae1048e02d5b52 4,045,436
  e69ca52ff99ac45c30a7eca833bf17c0 3,943,398
  eaf5620c94ca479f49593350e0e53052 16,090,695
New Rootnik Variant fc2b5e892ce00df128545247ddd9d104 384:QIIdVCtwXLNRtwkqrEEDjyqJP21bS8FhYL

Table 11: Sample IOCs and Dexofuzzy.


4.3.4 Incorrect clustering caused by excessive usage of SDK

The fourth cluster of malware samples contains more SDK opcode sequence than malicious opcode sequence due to excessive usage of SDK, as shown in Figure 23.

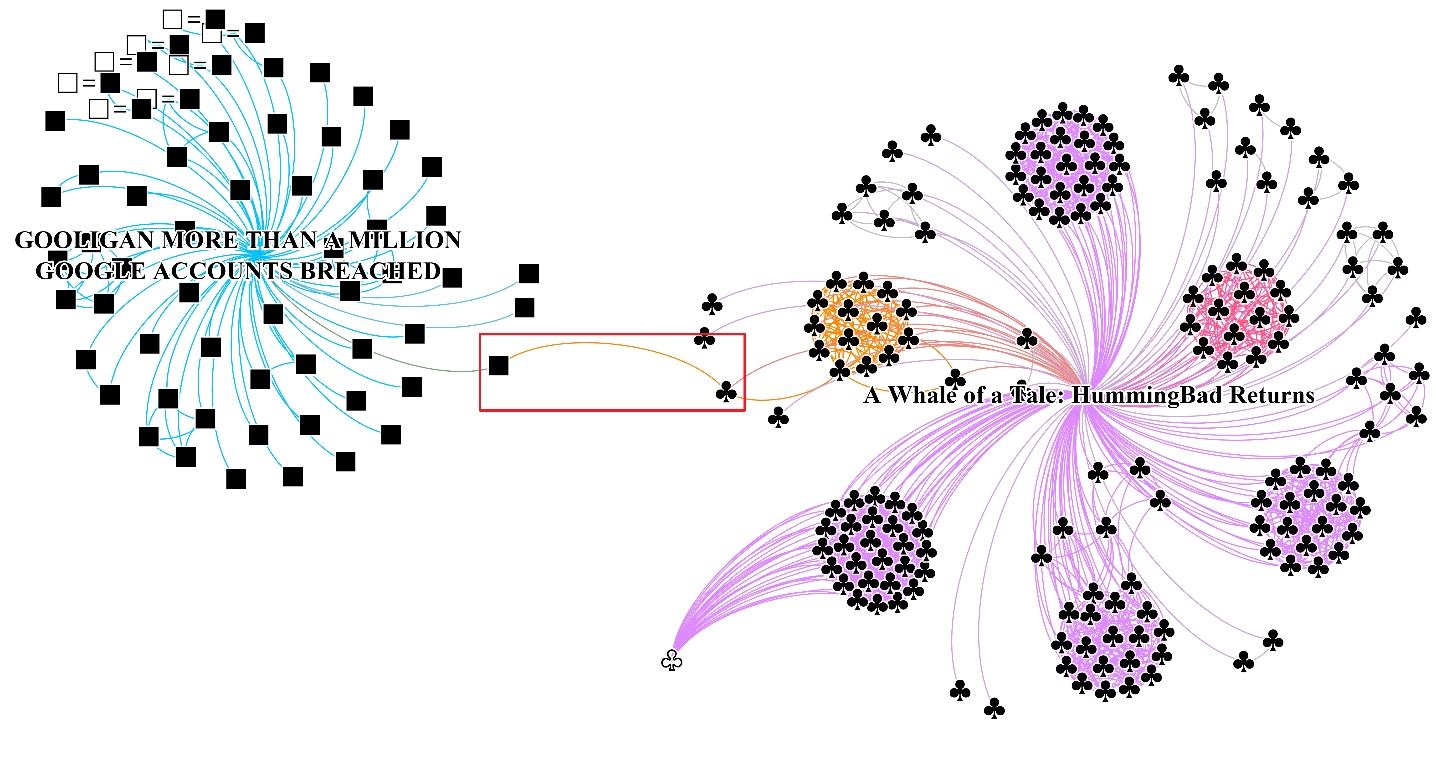

dexofuzzy-fig23.pngFigure 23: Incorrect clustering caused by excessive usage of SDK.

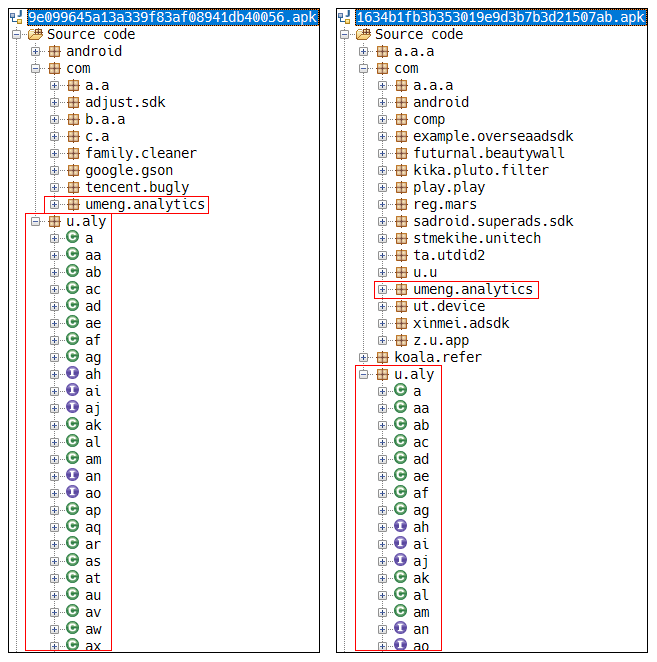

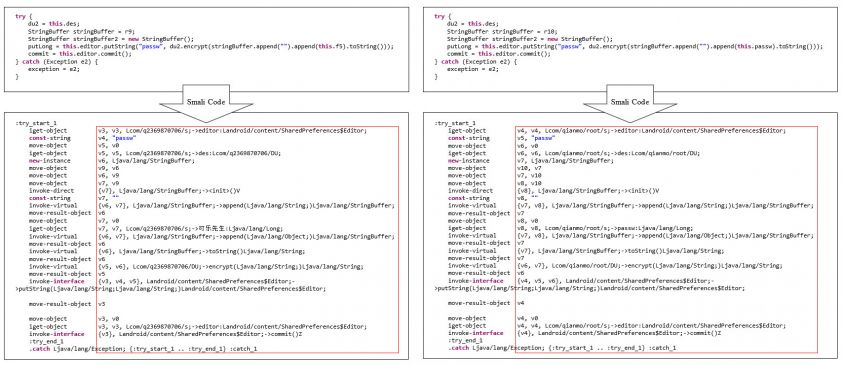

dexofuzzy-fig24.pngFigure 24: Examples detected as similar samples using the SDK.

Figure 24 shows an example of two samples which are incorrectly clustered due to the reason mentioned above, and Table 12 details the two samples that are detected by the 7-gram search of Dexofuzzy. As the 7-gram search of Dexofuzzy is based on the similarity of opcode sequence, malware samples are clustered according to the SDK usage rather than the logic similarity in case the proportion of malicious logic is relatively lower than that of SDK usage.

Title MD5 Dexofuzzy Size (bytes)
GOOLIGAN MORE THAN A MILLION GOOGLE ACCOUNTS BREACHED 1634b1fb3b353019e9d3b7b3d21507ab 768:XgwscmCnqs+13uXFAF5UPgoj8iSfU5Ngk5
A Whale of a Tale: HummingBad Returns 9e099645a13a339f83af08941db40056 768:BJlKnhSX7RF96rXlOaLQWmjI0T21utTj8i0

Table 12: Sample IOCs and Dexofuzzy.


5. Conclusion

As Android malware has shown a tendency toward large-scale distribution, users need more efficient and reliable analysis information to cope with the rapidly changing security environment. This paper proposes the methodology ‘Dexofuzzy’ to overcome the limitations of hardware resources or analysis environment. Dexofuzzy measures the similarity among a large number of Android malware variants by using opcode of the Dex file. In addition, Dexofuzzy utilizes Elasticsearch’s N-gram tokenizer, making it easier to perform a quick analysis of similarities.

In this paper, we have used Dexofuzzy to figure out the correlation based on 2,494 IOCs from 74 AlienVault OTX reports written by various vendors (see Appendix) and identified the correlation by mainly utilizing 15 reports and 465 samples among those reports. In addition, the eight more unknown samples were found among the 212,955 samples by utilizing the similarity search ‘Dexofuzzy’ with the IOCs of the report ‘Operation Blackbird.’ However, Dexofuzzy has limitations in that samples are incorrectly clustered when they are packed with the same packer or the proportion of SDK usage is excessive. It is recommended to use existing static and dynamic analysis methods along with Dexofuzzy to overcome these limitations, which helps us to more effectively respond to the large and rapidly evolving sets of Android-based malware. This tool is an open-source project that can be downloaded from the GitHub repository [23] and is also provided in the Pypi repository [24].



[1] Mobile malware evolution 2018. Cited May, 2019.

[2] Cyber attacks on Android devices on the rise. Cited May, 2019.

[3] 2018 Mobile Threat Landscape. Cited May, 2019.

[4] Rashidi B.; Fung, C. A Survey of Android Security Threats and Defenses. J. Wirel. Mob. Networks, Ubiquitous Comput. Dependable Appl., vol. 6, no. 3, pp. 3–35, 2015.

[5] Faruki, P.; Bharmal, A.; Laxmi, V.; Ganmoor, V.; Gaur, M. S.; Conti, M.; Rajarajan, M. Android security: A survey of issues, malware penetration, and defenses. IEEE Commun. Surveys Tutorials, vol. 17, no. 2, pp. 998–1022, Mar.–Apr. 2015.

[6] Sufatrio, D. J.; Tan, J.; Chua, T.-W.; Thing, V. L. L. Securing Android: A Survey, Taxonomy, and Challenges. ACM Comput. Surveys, vol. 47, no. 4, pp. 1–45, 2015.

[7] Tam, K.; Feizollah, A.; Anuar, N. B.; Salleh, R.; Cavallaro, L. The evolution of Android malware and Android analysis techniques. ACM Comput. Surveys, vol. 49, no. 4, pp. 1–41, 2017.

[8] Yu, B.; Fang, Y.; Yang, Q.; Tang, Y.; Liu, L. et al. A survey of malware behavior description and analysis. Frontiers of Information Technology and Electronic Engineering, Volume 19(5), 583-603, 2018.

[9] Wang, J.; Shen, H. T.; Song, J.; Ji, J. Hashing for similarity search: A survey. CoRR, abs/1408.2927, 2014.

[10] Oliver, J.; Chun, C.; Yanggui, C. TLSH -- A Locality Sensitive Hash. In Cybercrime and Trustworthy Computing Workshop (CTC), 2013 Fourth, 2013, pp.7–13.

[11] Classifying Malware using Import API and Fuzzy Hashing – impfuzzy. Cited May, 2019.

[12] Android Runtime (ART) and Dalvik. Cited May, 2019.

[13] Zhou, W.; Zhou, Y.; Jiang, X.; Ning, P. Detecting Repackaged Smartphone Applications in Third-Party Android Marketplaces. In Proceedings of the 2nd ACM Conference on Data and Application Security and Privacy (CODASPY), 2012.

[14] Ko, J.; Shim, H.; Kim, D.; Jeong, Y.-S.; Cho, S.-j.; Park, M.; Han, S.; Kim, S. B. Measuring similarity of Android applications via reversing and k-gram birthmarking. In Proc. of the 2013 Research in Adaptive and Convergent Systems (RACS’13), Montreal, Quebec, Canada. ACM, October 2013, pp.336–341.

[15] Zhang, F.; Huang, H.; Zhu, S.; Wu, D.; Liu, P. Viewdroid: Towards obfuscation-resilient mobile application repackaging detection. In Proc. 7th ACM Conf. Secur. Privacy Wireless Mobile Netw., 2014, pp.25–36.

[16] Myles G.; Collberg, C. K-gram based software birthmarks. In Proceedings of the 2005 ACM symposium on Applied computing, 2005.

[17] Kornblum, J. Identifying almost identical files using context triggered piecewise hashing. Digital investigation, vol. 3, pp.91–97, Sep. 2006.

[18] Wallace, B. Optimizing ssDeep for use at scale. Virus Bulletin. Cited Nov. 2015.

[19] Intezer Community Tip: How to Optimize ssdeep Comparisons with ElasticSearch. Cited May, 2019.

[20] Apktool. Cited Jul., 2019.

[21] Bastian, M.; Heymann, S.; Jacomy, M. Gephi: An open source software for exploring and manipulating networks. In ICWSM. The AAAI Press, 2009.

[22] ‘Operation Blackbird’. Cited Jul., 2019.

[23] Open Source Project – ‘Dexofuzzy: Dalvik EXecutable Opcode Fuzzyhash’.

[24] Python Package Index – ‘Dexofuzzy: Dalvik EXecutable Opcode Fuzzyhash’.


Appendix A: correlation of 74 AlienVault OTX reports


[1] StealJob: New Android Malware Used by Donot APT Group. Cited Jul., 2019.

[2] Gustuff banking botnet targets Australia. Cited Jul., 2019.

[3] Exodus: New Android Spyware Made in Italy. Cited Jul., 2019.

[4] KBuster: Fake Bank App in South Korean. Cited Jul., 2019.

[5] MalBus: Popular South Korean Bus App Series in Google Play Found Dropping Malware After 5 Years of Development. Cited Jul., 2019.

[6] Google Play Apps Drop Anubis Banking Malware, Use Motion-based Evasion Tactics. Cited Jul., 2019.

[7] Android Trojan steals money from PayPal accounts even with 2FA on. Cited Jul., 2019.

[8] Gplayed’s younger brother is a banker and its after Russian banks. Cited Jul., 2019.

[9] Roaming Mantis, part III: iOS crypto-mining and spreading via malicious content delivery system. Cited Jul., 2019.

[10] BusyGasper - the unfriendly spy. Cited Jul., 2019.

[11] Android/BondPath: a Mature Spyware. Cited Jul., 2019.

[12] Anubis is Back: Are You Prepared? Cited Jul., 2019.

[13] DOKKAEBI: Documents of Korean and Evil Binary. Cited Jul., 2019.

[14] Infrastructure and Samples of Hamas’ Android Malware Targeting Israeli Soldiers. Cited Jul., 2019.

[15] CoinMiner and other malicious cryptominers targeting Android. Cited Jul., 2019.

[16] Reaper Group’s Updated Mobile Arsenal. Cited Jul., 2019.

[17] Pocket cryptofarms: Investigating mobile apps for hidden mining. Cited Jul., 2019.

[18] Fake AV Investigation Unearths KevDroid. New Android Malware. Cited Jul., 2019.

[19] Monero-Mining HiddenMiner Android Malware Can Potentially Cause Device Failure. Cited Jul., 2019.

[20] TeleRAT: Another Android Trojan Leveraging Telegrams Bot API to Target Iranian Users. Cited Jul., 2019.

[21] Downloaders on Google Play spreading malware to steal Facebook login details. Cited Jul., 2019.

[22] New version of mobile malware Catelites possibly linked to Cron cyber gang. Cited Jul., 2019.

[23] BankBot Found on Google Play and Targets Ten New UAE Banking Apps. Cited Jul., 2019.

[24] WAP-billing Trojan-Clickers on rise. Cited Jul., 2019.

[25] New WannaCry-Mimicking SLocker Abuses QQ Services. Cited Jul., 2019.

[26] Unmasking Android Malware: A Deep Dive into a New Rootnik Variant, Part III. Cited Jul., 2019.

[27] LeakerLocker: Mobile Ransomware Acts Without Encryption. Cited Jul., 2019.

[28] SpyDealer: Android Trojan Spying on More Than 40 Apps. Cited Jul., 2019.


[30] SLocker Mobile Ransomware Starts Mimicking WannaCry. Cited Jul., 2019.

[31] Koler Android Ransomware Targets the US with Fake PornHub Apps. Cited Jul., 2019.

[32] Spyware targets Iranian Android users by abusing messaging app Telegram’s Bot API. Cited Jul., 2019.

[33] Analyzing Xavier: An InformationStealing Ad Library on Android. Cited Jul., 2019.

[34] Dvmap: the first Android malware with code injection. Cited Jul., 2019.

[35] Marcher Gets Close to Users by Targeting Mobile Banking, Android Apps, Social Media, and Email. Cited Jul., 2019.

[36] DressCode Android Malware Finds Apparent Successor in MilkyDoor. Cited Jul., 2019.

[37] Swearing Trojan Continues to Rage, Even After Authors’ Arrest. Cited Jul., 2019.

[38] Google Play Apps Infected with Malicious IFrames. Cited Jul., 2019.

[39] Breaking The Weakest Link Of The Strongest Chain. Cited Jul., 2019.

[40] Deep Analysis of Android Rootnik Malware Using Advanced Anti-Debug and Anti-Hook, Part II: Analysis of The Scope of Java. Cited Jul., 2019.

[41] A Whale of a Tale: HummingBad Returns. Cited Jul., 2019.

[42] Switcher: Android joins the ‘attack-the-router’ club. Cited Jul., 2019.

[43] Fake Apps Take Advantage of Super Mario Run Release. Cited Jul., 2019.

[44] Comodo Threat Research Labs Warns Android Users of ‘Tordow v2.0’ outbreak. Cited Jul., 2019.


[46] PluginPhantom: New Android Trojan Abuses ‘DroidPlugin’ Framework. Cited Jul., 2019.

[47] HackingTeam back for your Androids, now extra insecure! Cited Jul., 2019.

[48] Exaspy - Commodity Android Spyware Targeting High-level Executives. Cited Jul., 2019.

[49] Android banking malware masquerades as Flash Player, targeting large banks and popular social media apps. Cited Jul., 2019.

[50] BITTER: a targeted attack against Pakistan. Cited Jul., 2019.

[51] DressCode and its Potential Impact for Enterprises. Cited Jul., 2019.

[52] Investigating a Libyan Cyber Espionage Campaign Targeting High-Profile Influentials. Cited Jul., 2019.

[53] Four spyware apps removed from Google Play. Cited Jul., 2019.

[54] First Twitter-controlled Android botnet discovered. Cited Jul., 2019.

[55] Group5: Syria and the Iranian Connection. Cited Jul., 2019.

[56] SpyNote Android Trojan Builder Leaked. Cited Jul., 2019.

[57] DroidJack Uses Side-Load…It’s Super Effective! Backdoored Pokemon GO Android App Found. Cited Jul., 2019.

[58] From HummingBad to Worse. Cited Jul., 2019.

[59] Android Malware Clicker.G!Gen Found on Google Play. Cited Jul., 2019.

[60] ‘Operation C-Major’ Actors Also Used Android, BlackBerry Mobile Spyware Against Targets. Cited Jul., 2019.

[61] New Android Trojan ‘Xbot’ Phishes Credit Cards and Bank Accounts, Encrypts Devices for Ransom. Cited Jul., 2019.

[62] Android.Bankosy: All ears on voice call-based 2FA. Cited Jul., 2019.

[63] Android.ZBot banking Trojan uses ‘web injections’ to steal confidential data. Cited Jul., 2019.

[64] Pornographic-themed Malware Hits Android Users in China, Taiwan, Japan. Cited Jul., 2019.

[65] Chinese Taomike Monetization Library Steals SMS Messages. Cited Jul., 2019.

[66] The Postal Group. Cited Jul., 2019.

[67] Kemoge: Another Mobile Malicious Adware Infecting Over 20 Countries. Cited Jul., 2019.

[68] Two Games Released in Google Play Can Root Android Devices. Cited Jul., 2019.

[69] New ‘Ghost Push’ Variants Sport Guard Code; Malware Creator Published Over 600 Bad Android Apps. Cited Jul., 2019.

[70] Android trojan drops in, despite Google Bouncer. Cited Jul., 2019.

[71] Locker: an Android ransomware full of surprises. Cited Jul., 2019.

[72] Porn clicker keeps infecting apps on Google Play. Cited Jul., 2019.

[73] Attack of the 90s Kids: Chinese Teens Take On the Mobile Ransomware Trade. Cited Jul., 2019.

[74] COOLREAPER: The Coolpad Backdoor. Cited Jul., 2019.

Download PDF



Latest articles:

Cryptojacking on the fly: TeamTNT using NVIDIA drivers to mine cryptocurrency

TeamTNT is known for attacking insecure and vulnerable Kubernetes deployments in order to infiltrate organizations’ dedicated environments and transform them into attack launchpads. In this article Aditya Sood presents a new module introduced by…

Collector-stealer: a Russian origin credential and information extractor

Collector-stealer, a piece of malware of Russian origin, is heavily used on the Internet to exfiltrate sensitive data from end-user systems and store it in its C&C panels. In this article, researchers Aditya K Sood and Rohit Chaturvedi present a 360…

Fighting Fire with Fire

In 1989, Joe Wells encountered his first virus: Jerusalem. He disassembled the virus, and from that moment onward, was intrigued by the properties of these small pieces of self-replicating code. Joe Wells was an expert on computer viruses, was partly…

Run your malicious VBA macros anywhere!

Kurt Natvig wanted to understand whether it’s possible to recompile VBA macros to another language, which could then easily be ‘run’ on any gateway, thus revealing a sample’s true nature in a safe manner. In this article he explains how he recompiled…

Dissecting the design and vulnerabilities in AZORult C&C panels

Aditya K Sood looks at the command-and-control (C&C) design of the AZORult malware, discussing his team's findings related to the C&C design and some security issues they identified during the research.

Bulletin Archive

We have placed cookies on your device in order to improve the functionality of this site, as outlined in our cookies policy. However, you may delete and block all cookies from this site and your use of the site will be unaffected. By continuing to browse this site, you are agreeing to Virus Bulletin's use of data as outlined in our privacy policy.
